TFT LCD Display

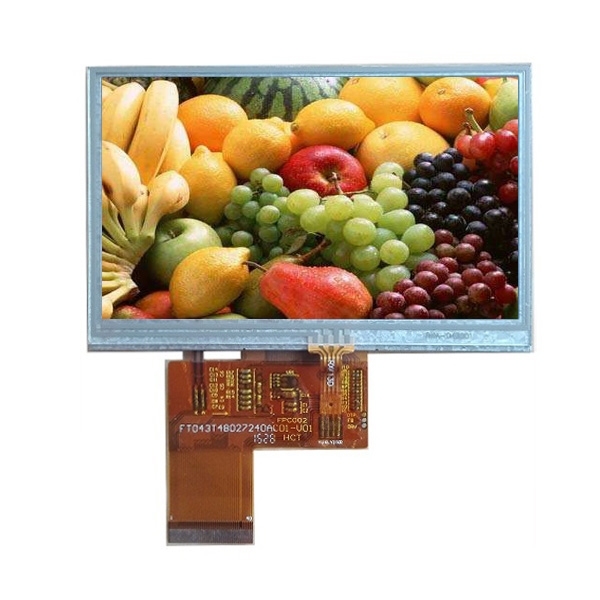

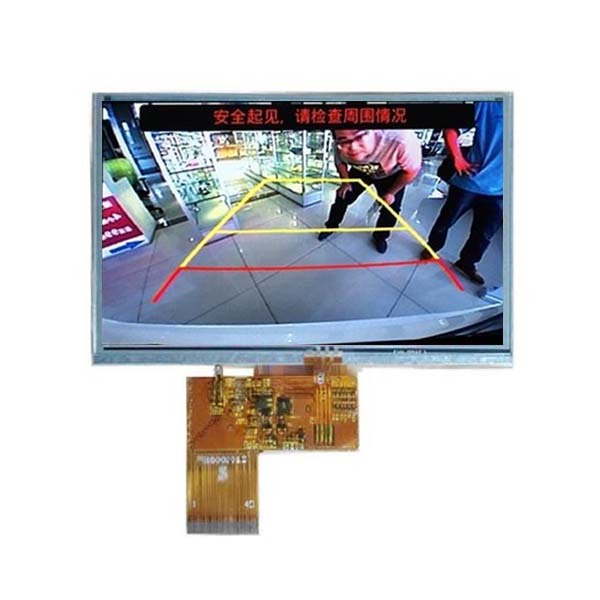

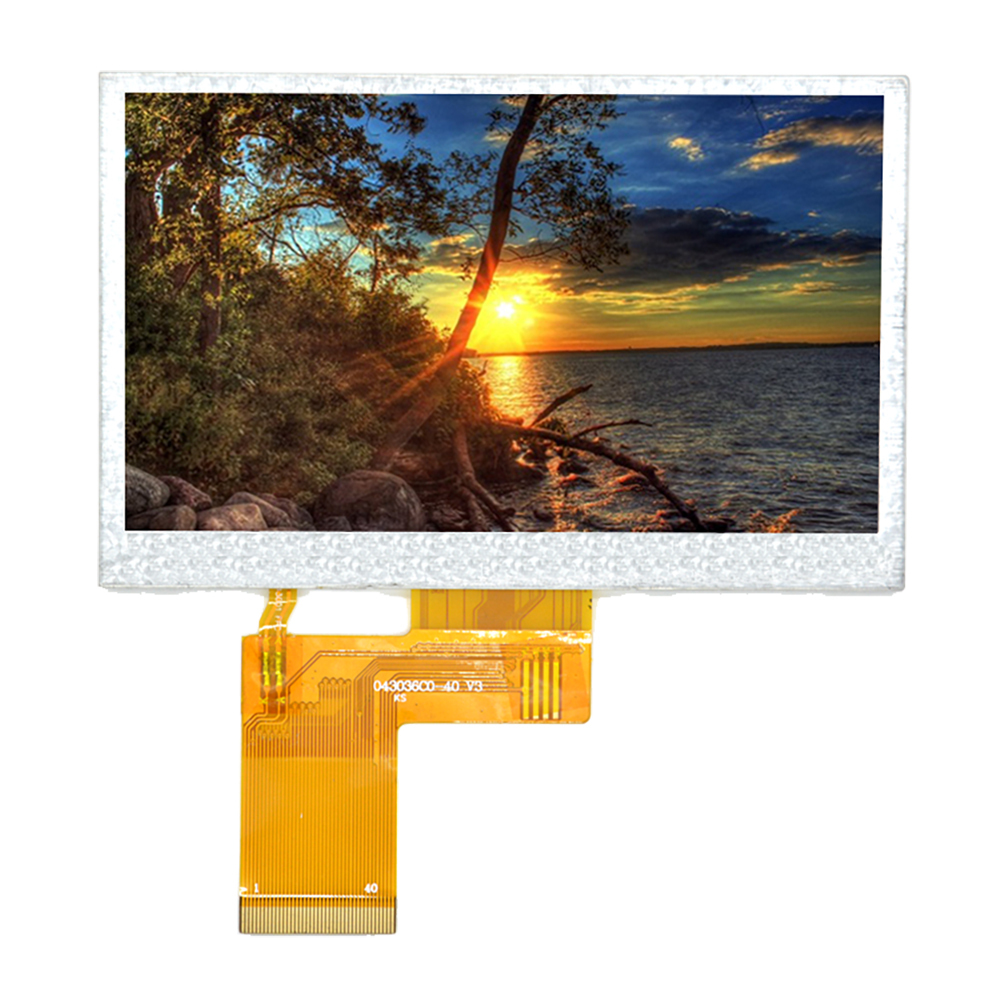

OEM 4.3inch LCD Display 480x272 24bits RGB 40Pin display screen module

Item No.: RP043M006-40Z10-C
Model: RP043M006-40Z10-C
Dot Matrix: 480 x 272
Module size: 105.5(W)x67.2(H)x2.9(T)mm
Active area: 95.04(W)x53.856(H)mm
Description
OEM 4.3inch LCD Display 480x272 24bits RGB 40Pin display screen module
Model: RP043M006-40Z10-C
Panel Size 4.3 inch
LCD Type TFT TRANSMISSIVE
Module Size 105.5(W) x67.2(H) x 4.05(T)mm
Display Area 95.04(W) x53.856(H)mm
Resolution 480×(RGB)×272 Dots
Driver IC ST7282E
Backlight Type 7chips white LEDS
Interface Parallel RGB 24-Bit
Operating Temperature: -20 ~ +70ºC
Storage Temperature: -30 ~ +80ºC
Brand:
Reaper , over ten years manufacturer and exporter of various LCD display including mono LCD, TFT display, OLED display, touch panel and customized LCD solution.With the advantages of high contrast,fast response time, wide viewable angle and low power consumption, Reaper's products are widely used in Industrial Equipment, Medical devices,Home Intelligent Devices, Digital comsumers, Video Game Devices,Instruments etc.
