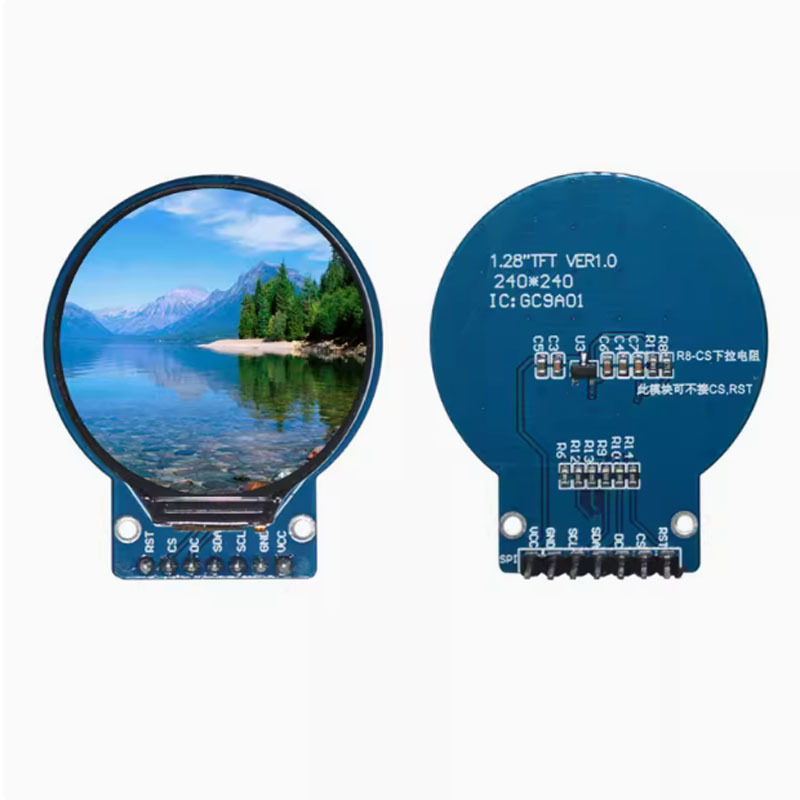

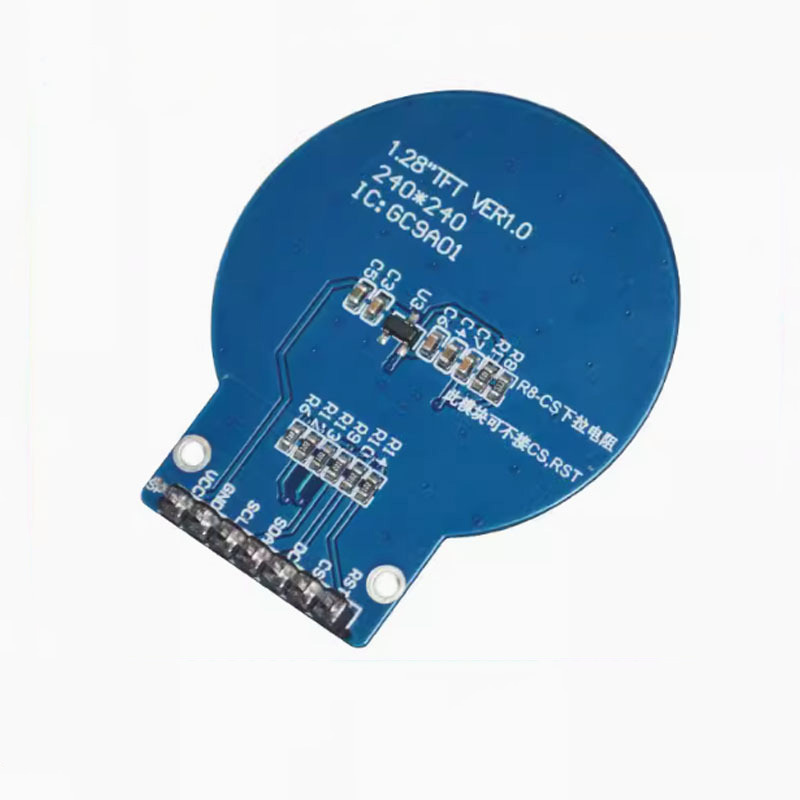

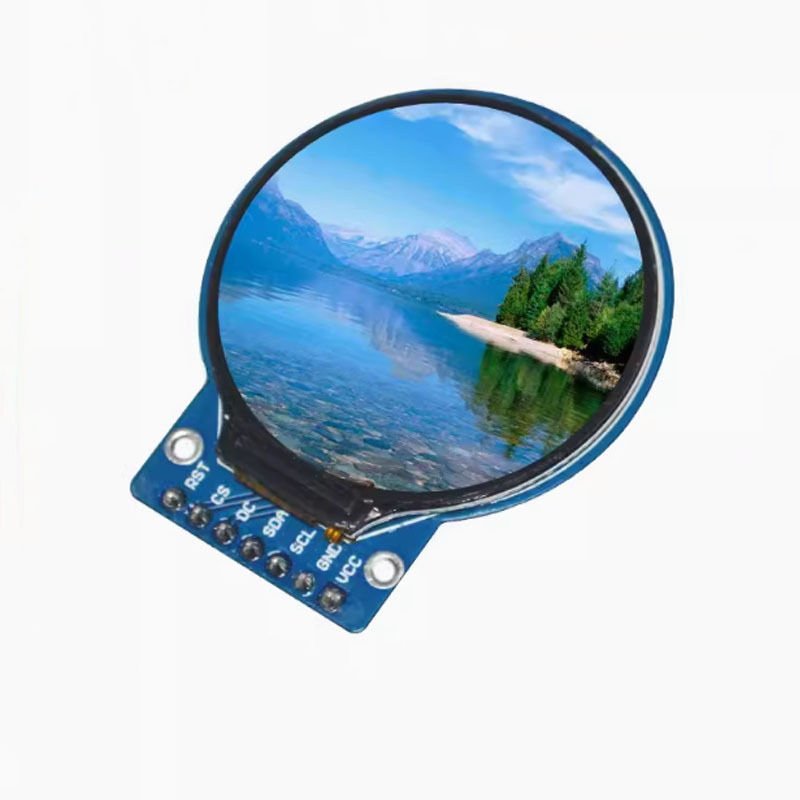

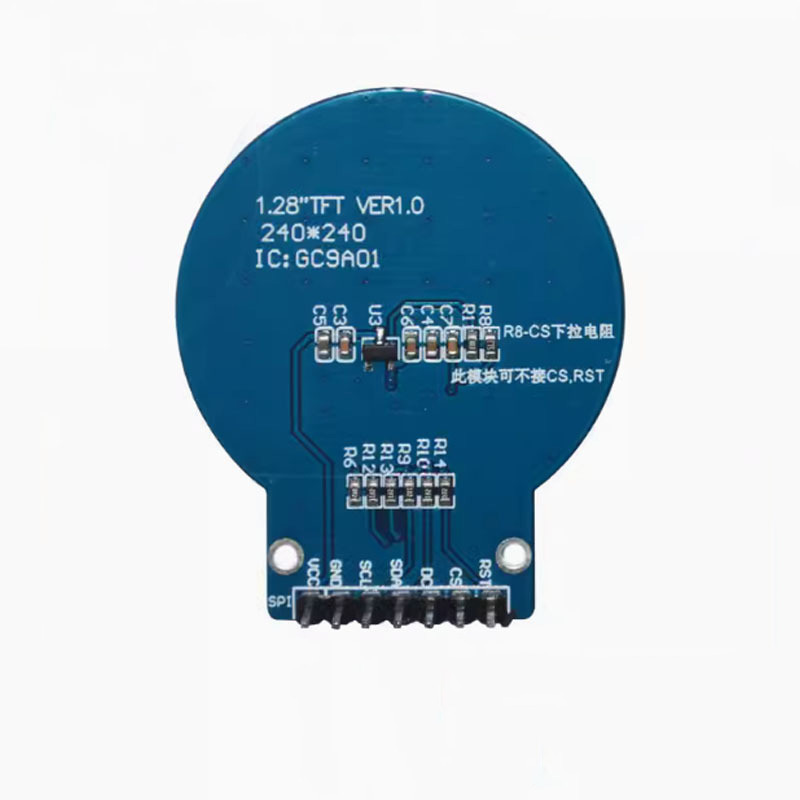

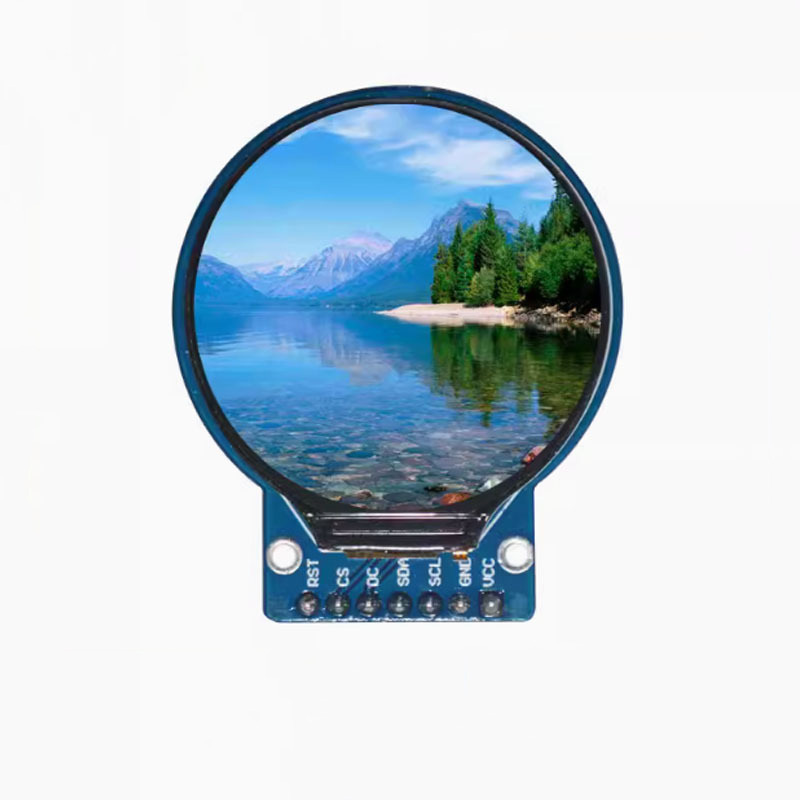

1.28inch IPS TFT LCD Display Module 240*240 Resolution 4 Line SPI Interface GC9A01 Small LCD Module
1. INTRODUCTION
1.28'' TFT LCD is a versatile display technology that offers high resolution, accurate color representation, low power consumption, and a compact size. It is a popular choice for use in wearable devices, industrial equipment, medical devices, and other applications where a small, high-quality display is required.
2.Features
| Model Number |
RPBIP128-V03 |
| size |
1.28 inch |
| Resolution |
240RGB(H)x240(V) |
| Dot pitch |
0.135(H)x0.135(V)mm |
| Active area |
Ø32.4
|

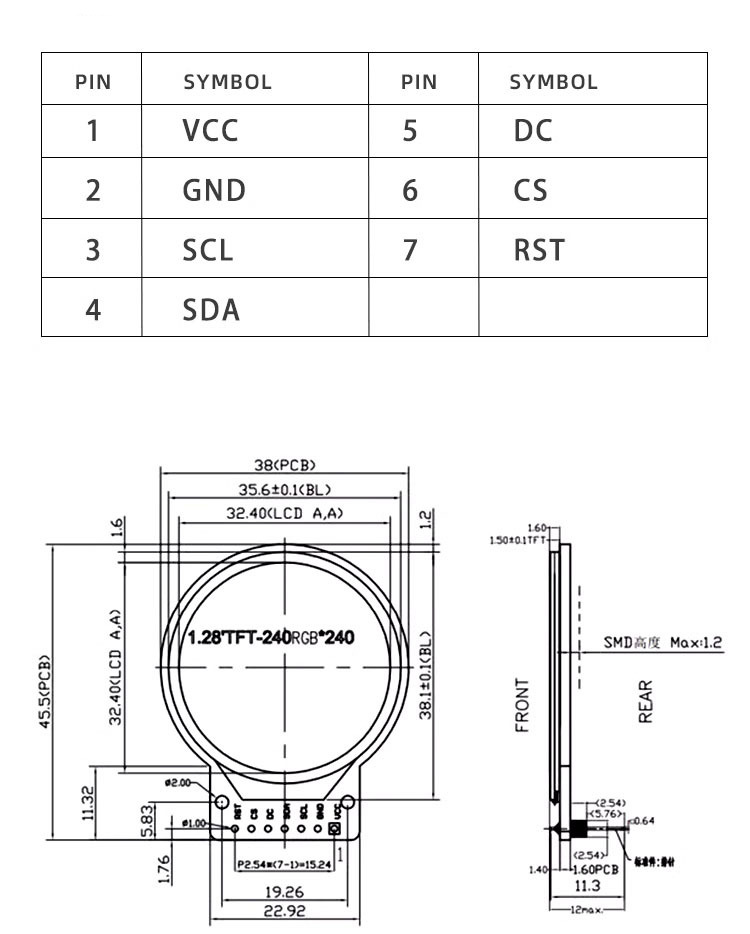

| Module size |
45.5(H)x48(V)x11.5(D) |
| Color arrangement |
RGB Vtertical stripe |
| Interface |
4 Line SPI |
| Drive IC |
GC9A01 |
| Luminance(cd/m2) |
400(TYP) |
| Viewing Direction |
All View |
| Backlight |
2 White LED Parallel |
| Operating Temperature |
-20-+70ºC |
| Storage Temperature |
-30-+80ºC |
| Weight |
TBD |
Brand:
Reaper , over ten years manufacturer and exporter of various LCD display including mono LCD, TFT display, OLED display, touch panel and customized LCD solution.With the advantages of high contrast,fast response time, wide viewable angle and low power consumption, Reaper's products are widely used in Industrial Equipment, Medical devices,Home Intelligent Devices, Digital comsumers, Video Game Devices,Instruments etc.
