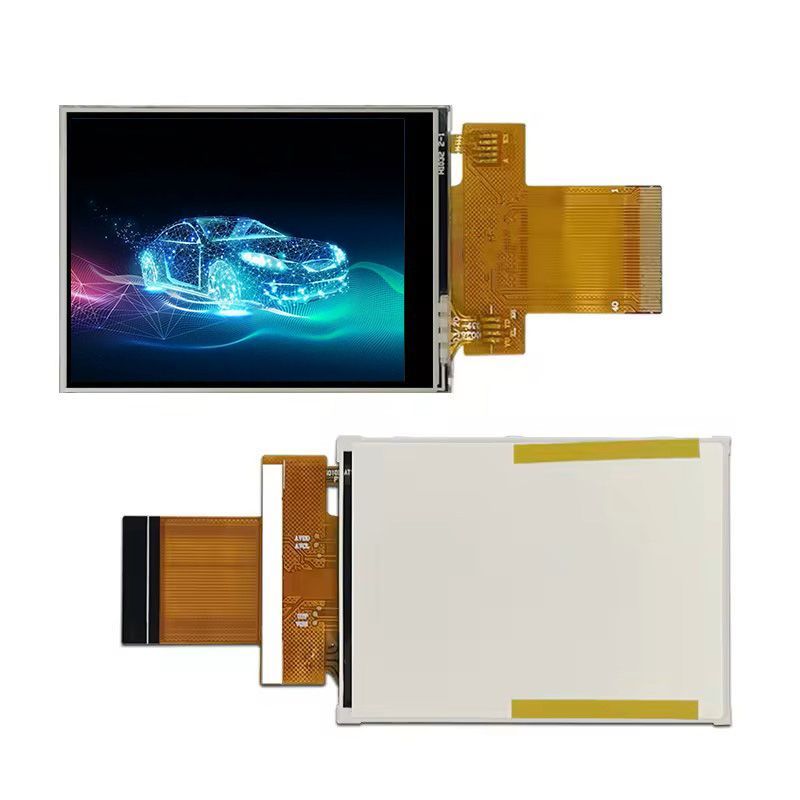

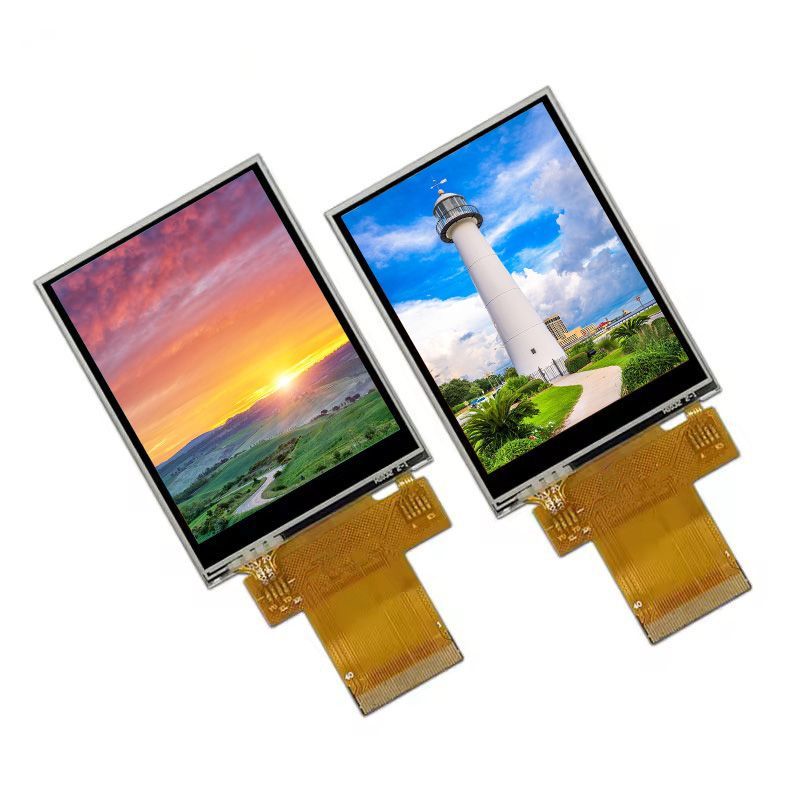

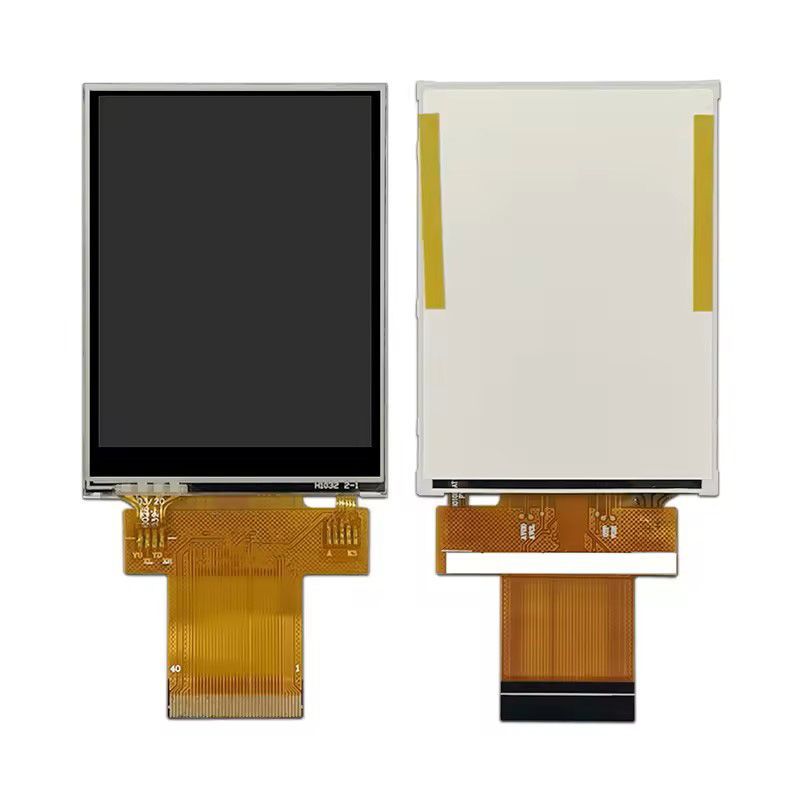

2.6 Inch IPS TFT LCD Display Module 240*320 Resolution Spi/MCU Interface Optional Capacitive or Resistive Touch Screen
| Model Number |
RP260009S0 |
| Size |
2.8 inch |
| LCD Type |
Normally White
|
| Drive Element |
TFT active matrix |
| Number of Pixels |
240*3RGB(H)X320(V) Dots |
| Pixel Arrangement |
RGB stripe |
| Pixel Pitch (W*H) |
0.153*0.153mm |

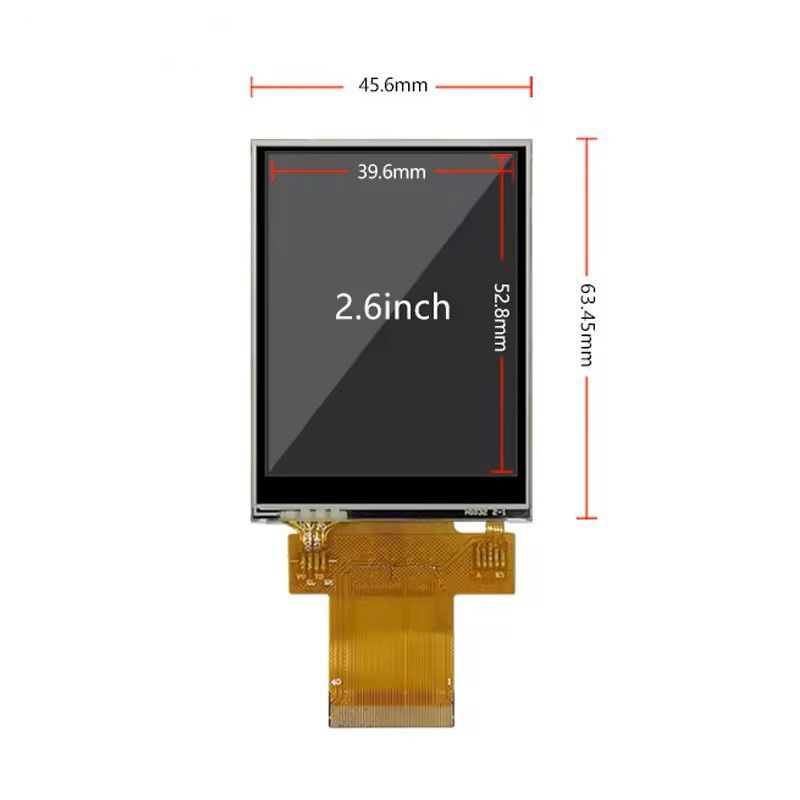

| Active Area |
39.6(H) * 52.8(V)mm |
| LCM Mechanical Outline Size(W*H*T) |
69.2*50*2.3 mm |
| Viewing Direction |
TN |
| LCM Driver IC |
ST7789V |
| LCM Interface |
SPI4/MCU BIT Interface |
| LCM Pin Count |
40 |
| Backlight LEDS |
4 pcs |
| Backlight Current |
80ma |
| Backlight Voltage |
2.8-3.3V |
| Operating Temperature |
-20+70 ºC |
| Storage Temperature |
-30+80 ºC |
| Lumens Degrees |
300cd/m2 |
Brand:
Reaper standard TFT-LCD display modules are available in various sizes from 1.77" to 10.4' TFT LCD, such as 2.4" TFT display, 2.8", 3.5" TFT display, 4.3" TFT display, 5 inch display, 7" LCD display. These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, and wide operating temperatures of -20°C to +70°C or -30°C to +80°C.
Reaper TFT displays are available in various graphic display resolutions including QVGA (320 x 240), WQVGA (480x272), VGA (640x480), WVGA (800x480), 640x320, 1024x600, XGA (1024x768) and WXGA(1280x800). Many of Reaper TFT display modules have more than one interface available including MCU, RGB, TTL and LVDS as well as two touch panels optional in resistive and capacitive technology.
