TFT LCD Display

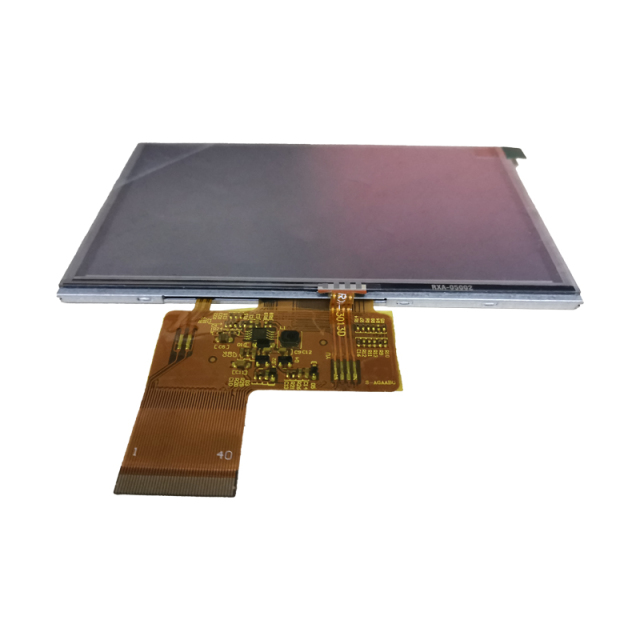

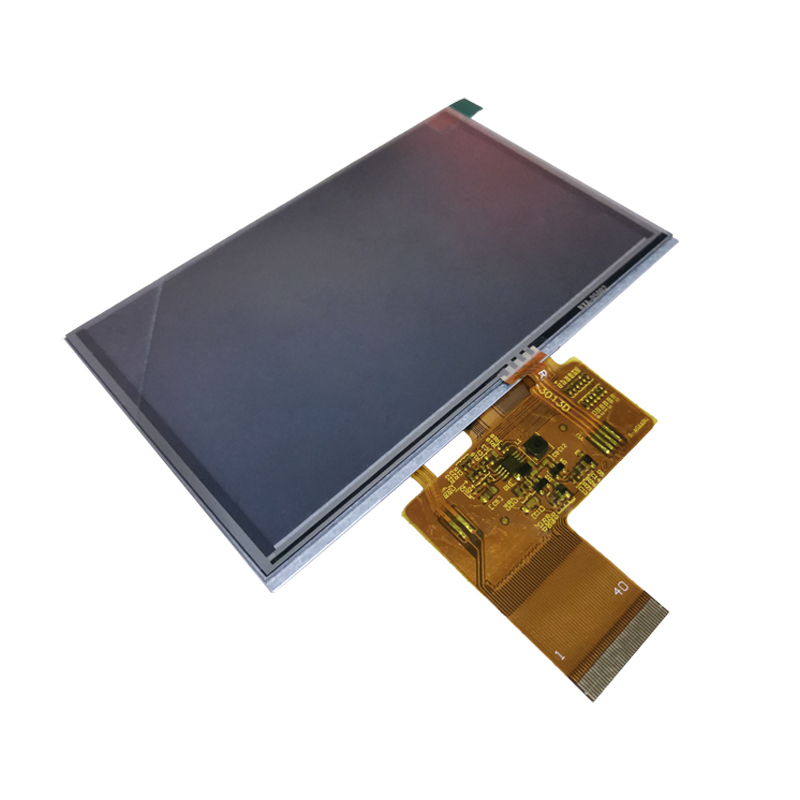

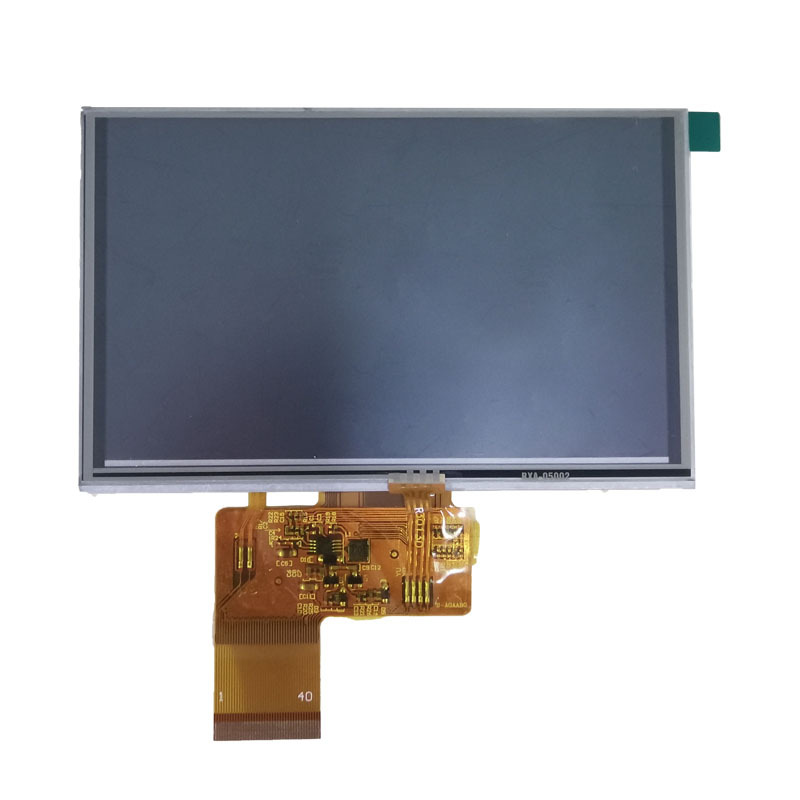

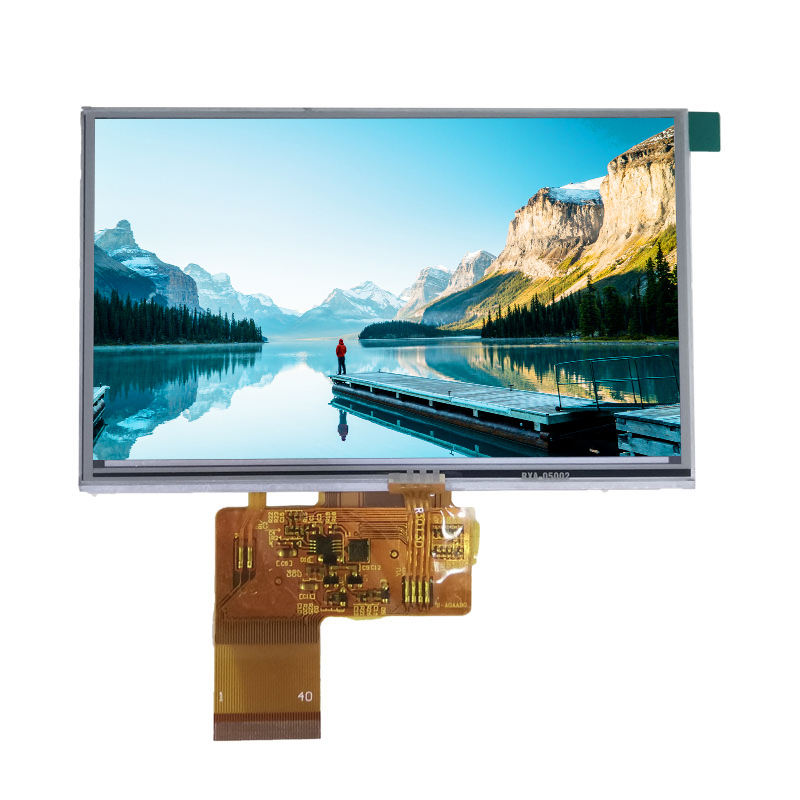

5inch tft lcd screen 800x480 with resistive touch panel display

Item No.: RP-500J5023C
RP-500J5023C is a 5inch lcd display,resolution 800x480,interface RGB40pin,it is optional resistive touch screen and capacitive touch panels,and can be customized for highbrightness,sunlight readble.
Description
5inch tft lcd screen 800x480 with resistive touch panel display
Model: RP-500J5023C
Panel Size 5 inch
LCD Type TFT TRANSMISSIVE

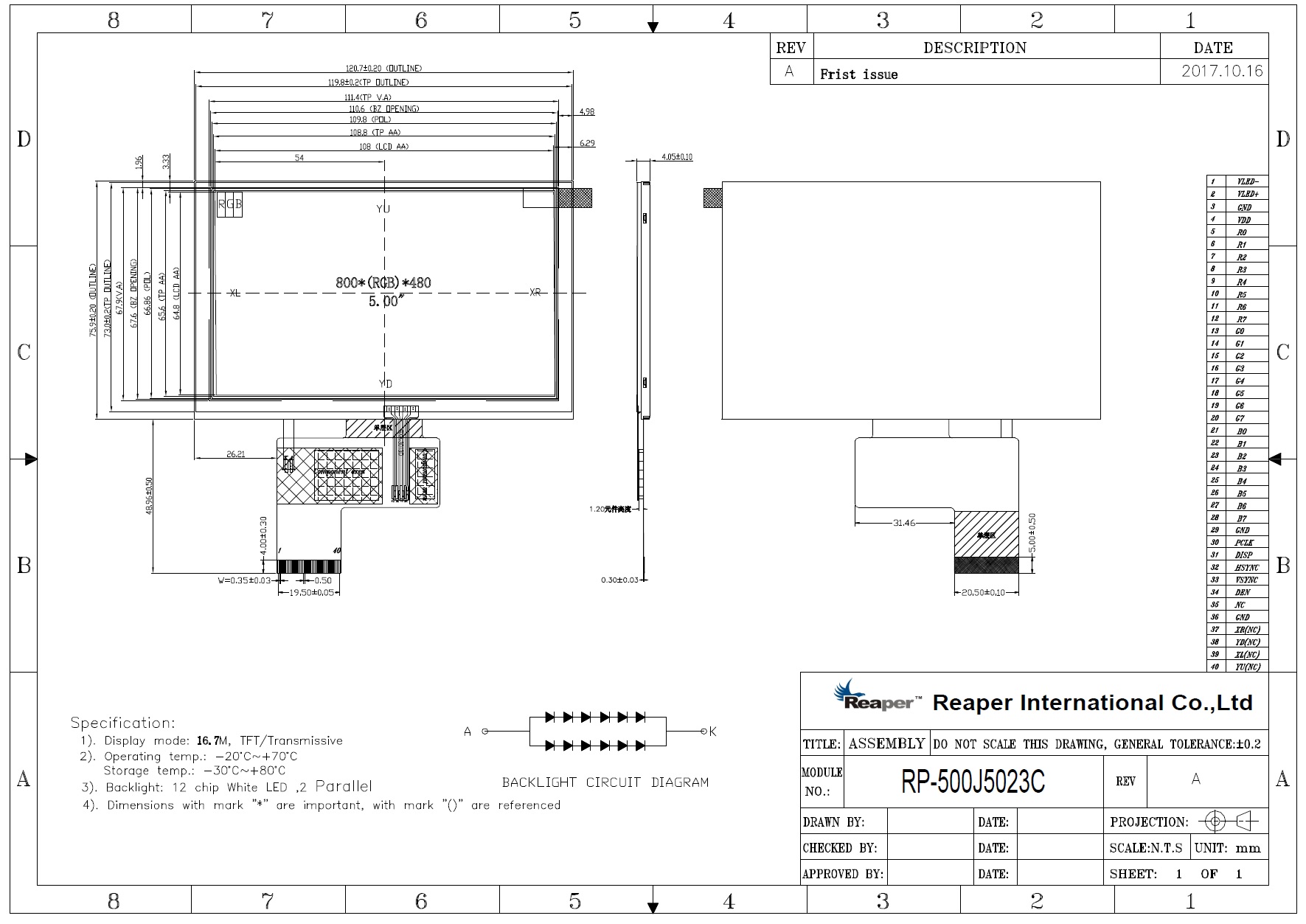

Module Size 120.7(W)*75.9(H)*4.05(T) mm
Display Area 108*64.8 mm
Number of Dots 800×(RGB)×480 Dots
Best Viewing Direction 12 O’clock
LED Numbers 12 White leds
Operating Temperature: -20 ~ +70ºC
Storage Temperature: -30 ~ +80ºC
Brand:
Reaper standard TFT-LCD display modules are available in various sizes from 1.77" to 10.4' TFT LCD, such as 2.4" TFT display, 2.8", 3.5" TFT display, 4.3" TFT display, 5 inch display, 7" LCD display.  These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, and wide operating temperatures of -20°C to +70°C or -30°C to +80°C.

Reaper TFT displays are available in various graphic display resolutions including QVGA (320 x 240), WQVGA (480x272), VGA (640x480), WVGA (800x480), 640x320, 1024x600, XGA (1024x768) and WXGA(1280x800).  Many of Reaper TFT display modules have more than one interface available including MCU, RGB, TTL and LVDS as well as two touch panels optional in resistive and capacitive technology.
