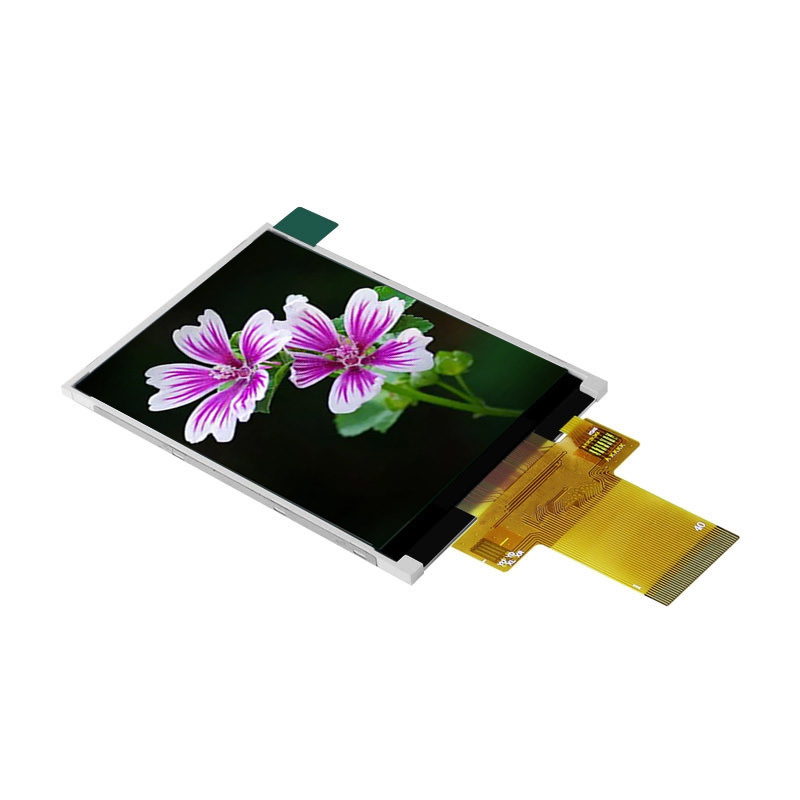

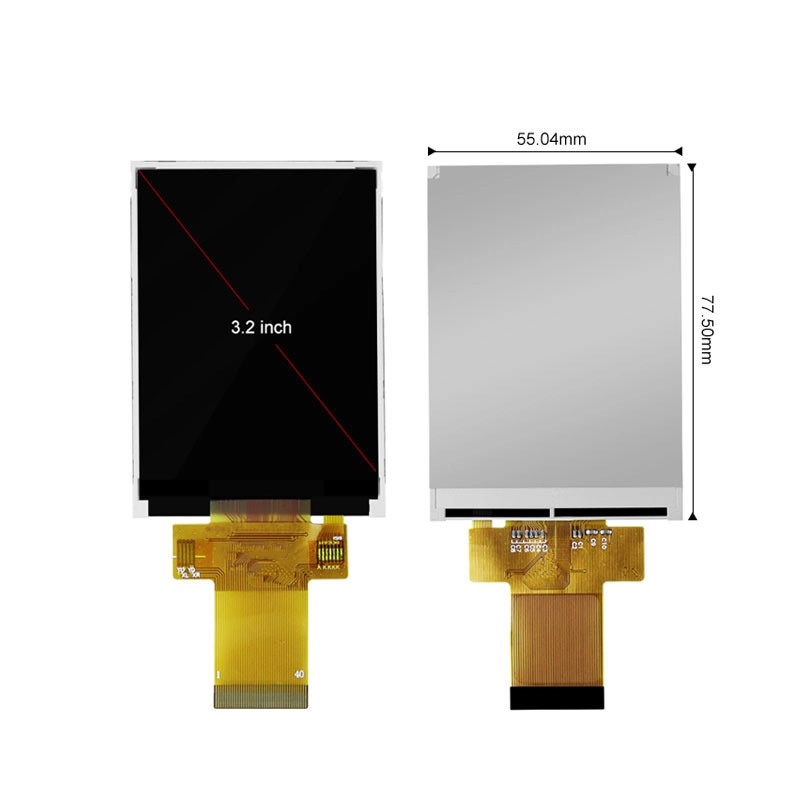

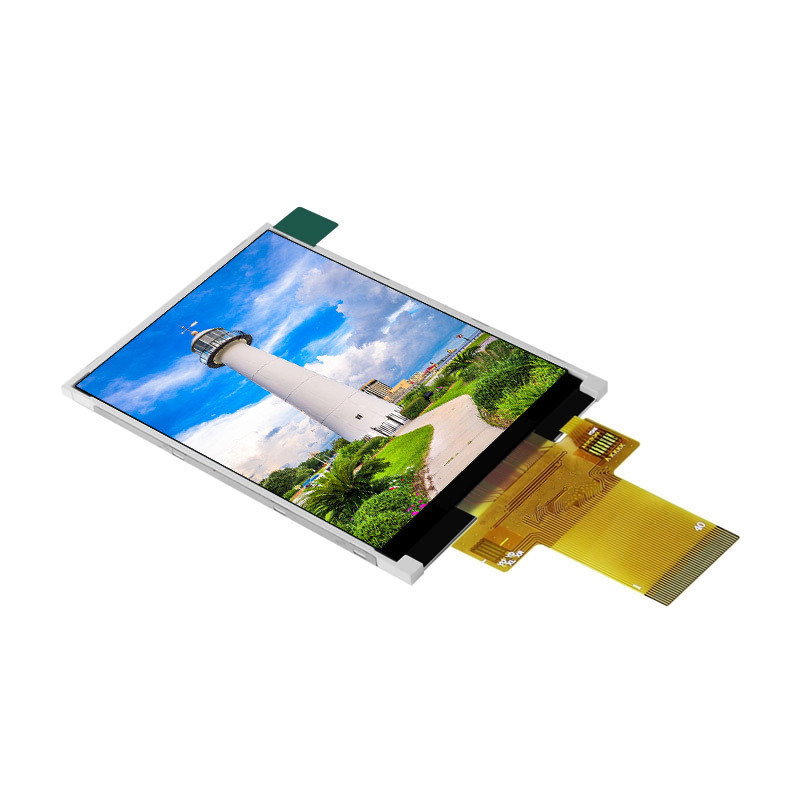

3.2 Inch TFT LCD Screen 240*320 Resolution IC Ili9341V MCU Interface 350nit Industrial LCD Display
| Model Number |
RP032H005 |
| Size |
3.2 inch |
| LCD Type |
Normally black
|
| Number of Pixels |
240*3RGB(H)X320(V) Dots |
| Pixel Arrangement |
RGB stripe |

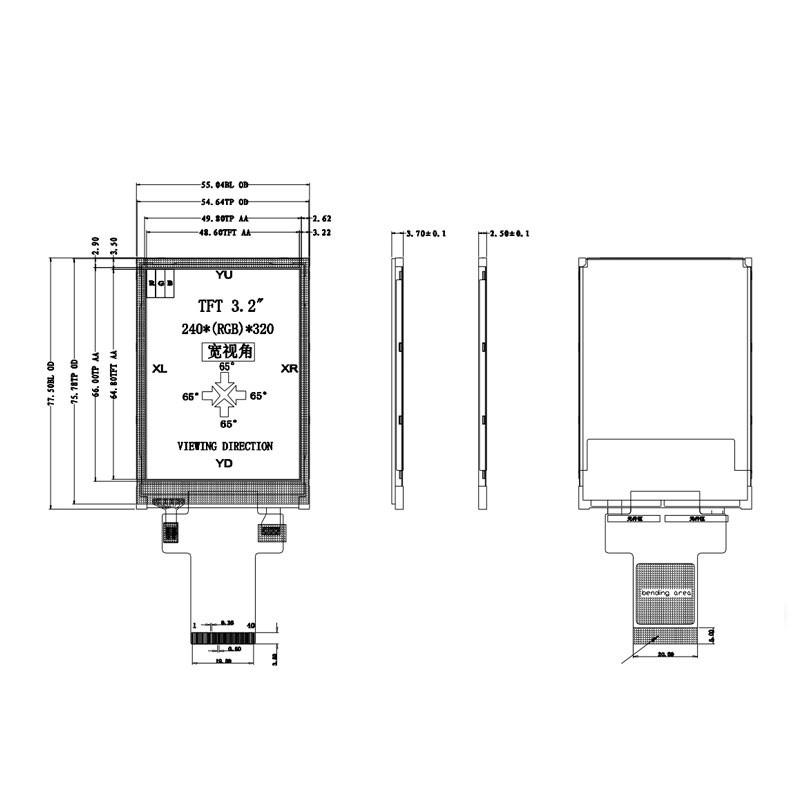

| Module size(W*H*T) |
55.04(W) x77.5(H) x 2.50(T)mm |
| Active Area |
48.6(W) x64.8(H)mm |
| Viewing Direction |
12 O'CLOCK |
| LCM Driver IC |
Ili9341V |
| LCM Interface |
MCU |
| Brightness |
350cd/m² |
| Operating Temperature |
-20+70 ºC |
| Storage Temperature |
-30+80 ºC |
Brand:
Reaper standard TFT-LCD display modules are available in various sizes from 1.77" to 10.4' TFT LCD, such as 2.4" TFT display, 2.8", 3.5" TFT display, 4.3" TFT display, 5 inch display, 7" LCD display. These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, and wide operating temperatures of -20°C to +70°C or -30°C to +80°C.
Reaper TFT displays are available in various graphic display resolutions including QVGA (320 x 240), WQVGA (480x272), VGA (640x480), WVGA (800x480), 640x320, 1024x600, XGA (1024x768) and WXGA(1280x800). Many of Reaper TFT display modules have more than one interface available including MCU, RGB, TTL and LVDS as well as two touch panels optional in resistive and capacitive technology.
