TFT LCD Display with controller board

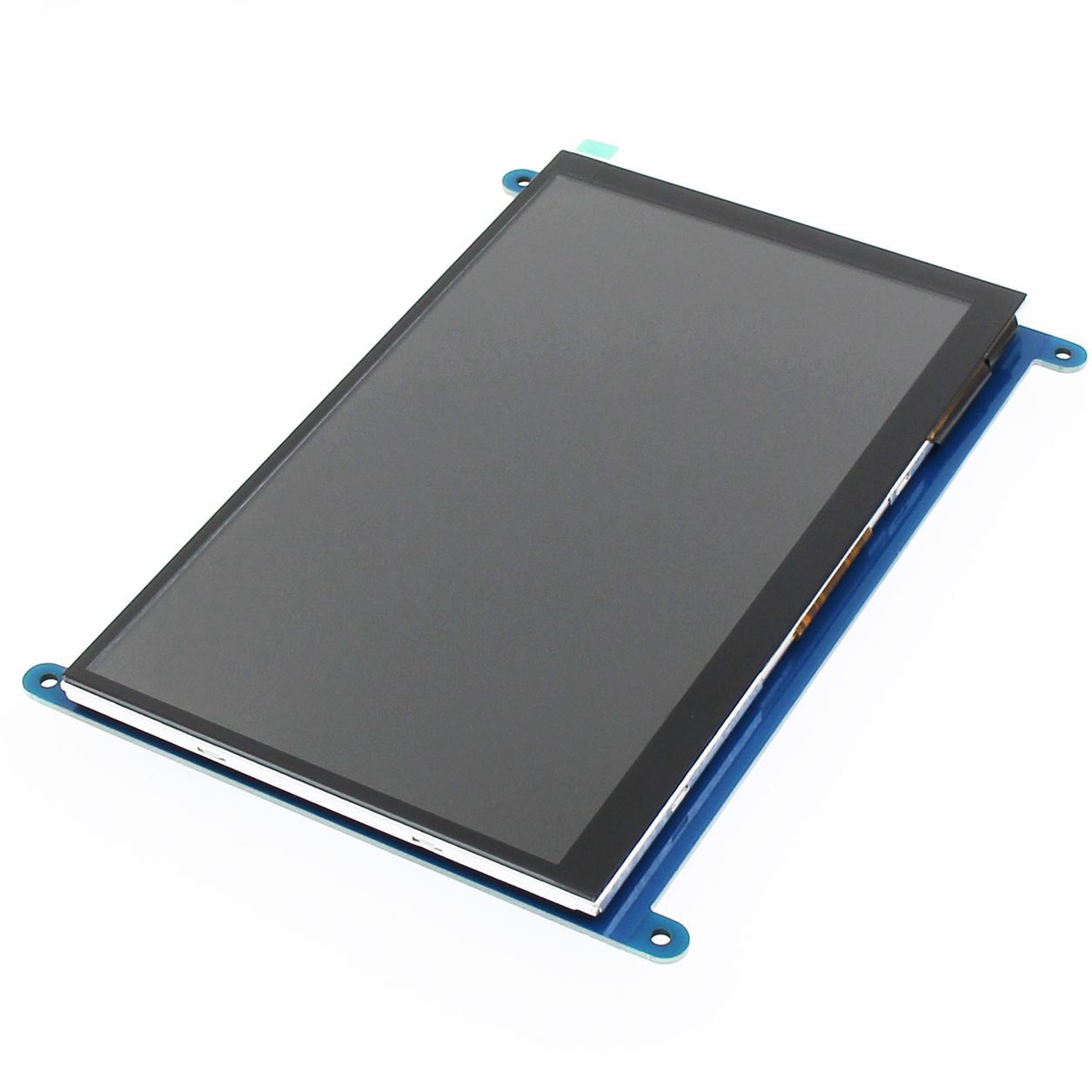

7inch HDMI Display 1024X600 with 5 Point Capacitive Touch Screen Support Raspberry Pi, Bb Black, Banana Pi and Other Mainstream Mini PC

Item No.: RPMPI7002
Model: RPMPI7002
Dot Matrix: 1024 x 600
Resolution: 1024 × 600 (dots)
Touch: five-point capacitive touch
Product Size: 164.9*124.27 (mm)
Package Size: 211*150*53 (mm)
Rough Weight: 405 (g)
Power Dissipation: 0.84A*5V
Description
7inch HDMI Display 1024X600 with 5 Point Capacitive Touch Screen Support Raspberry Pi, Bb Black, Banana Pi and Other Mainstream Mini PC

Product Description

  • 7'' standard display, 1024 × 600 Hardware resolution, Up to 1920x1080 software configuration resolution.
  • Capacitive touch screen, maximum support 5 point touch
  • Support backlight control alone, the backlight can be turned off to save power
  • Support Raspberry Pi, BB Black, Banana Pi and other mainstream mini PC
  • Can be used as general-purpose-use HDMI monitor, for example: connect with a computer HDMI as the sub-display

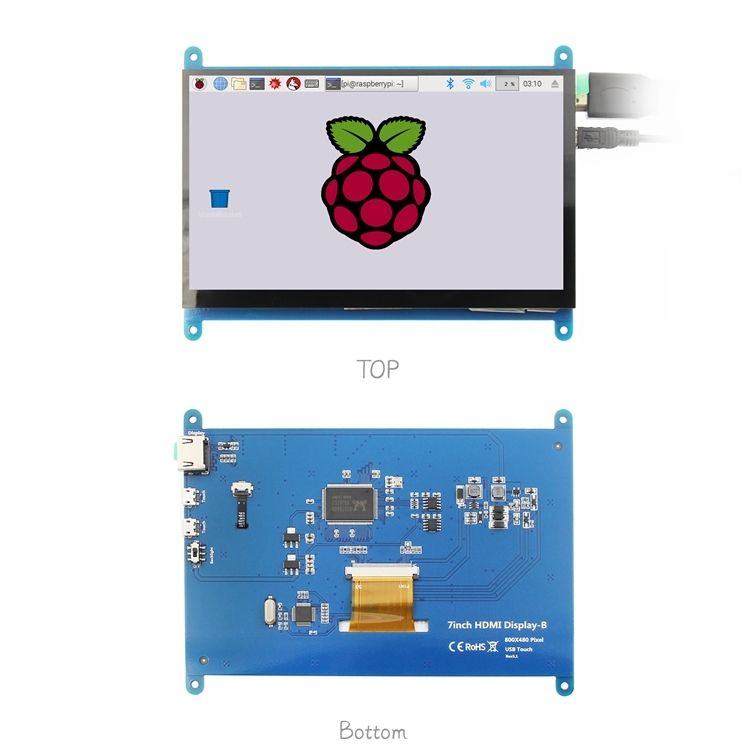

  • Used as a raspberry pi display that supports Raspbian, Ubuntu, Kali-Linux, Kodi, win10 IOT, single-touch, free drive
  • Work as a PC monitor, support win7, win8, win10 system 5 point touch (XP and older version system: single-point touch), free drive

Product Parameters

  • Size: 7.0 (inch)
  • SKU: MPI7002
  • Resolution: 1024 × 600 (dots)
  • Touch: five-point capacitive touch

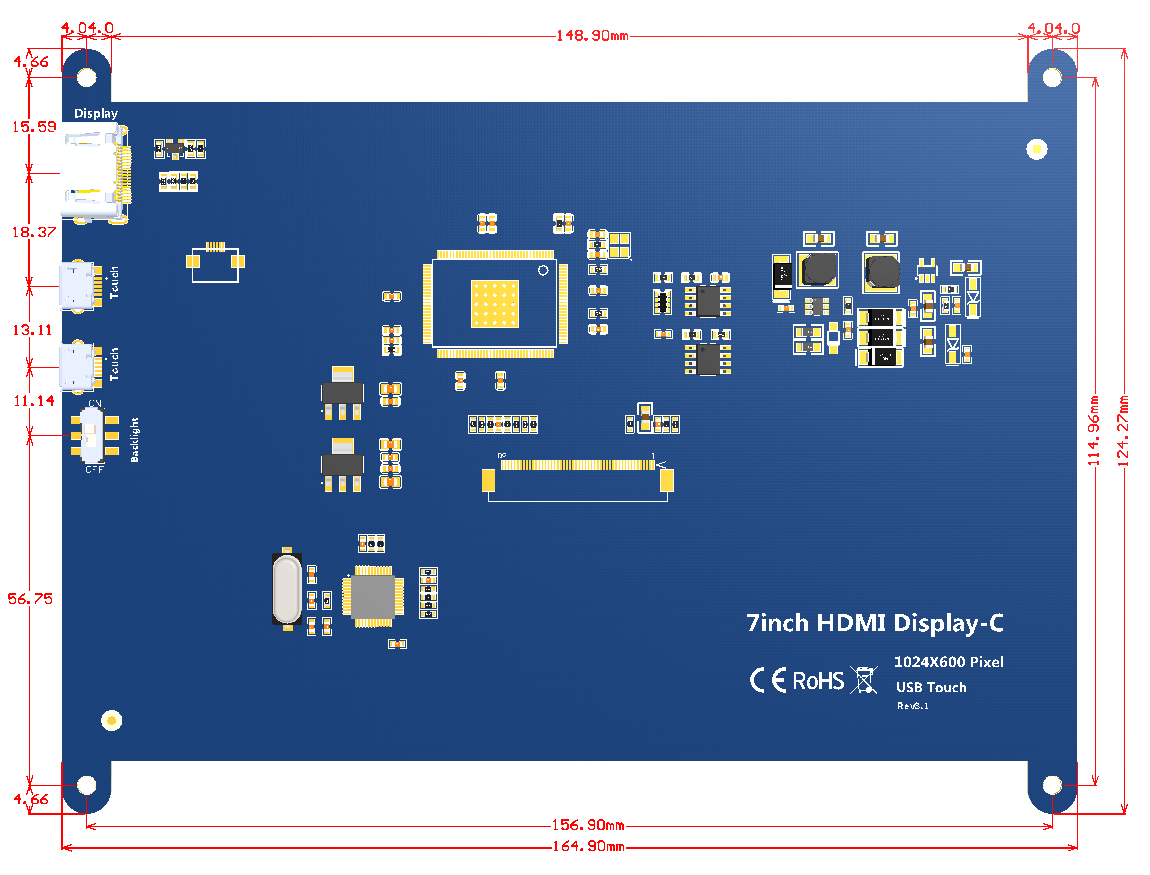

  • Product Size: 164.9*124.27 (mm)
  • Package Size: 211*150*53 (mm)
  • Rough Weight: 405 (g)
  • Power Dissipation: 0.84A*5V

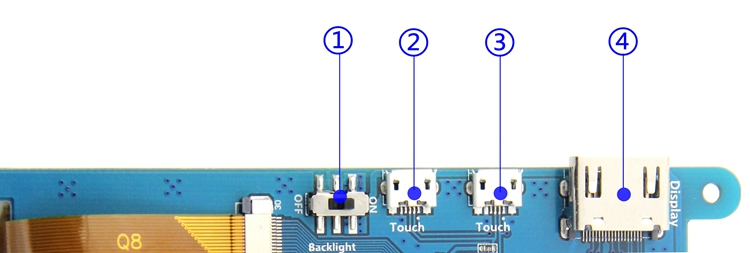

Hardware Description

PIN 1 Backlight Power switch: Controls the backlight turned on and off to save power.

PIN 2 & PIN 3 USB Touch / power supply connector: For power supply and touch output, the functions of the both are the same, can just use one of them.

PIN 4 HDMI interface: For connecting motherboard and LCD monitor to HDMI transmission.
