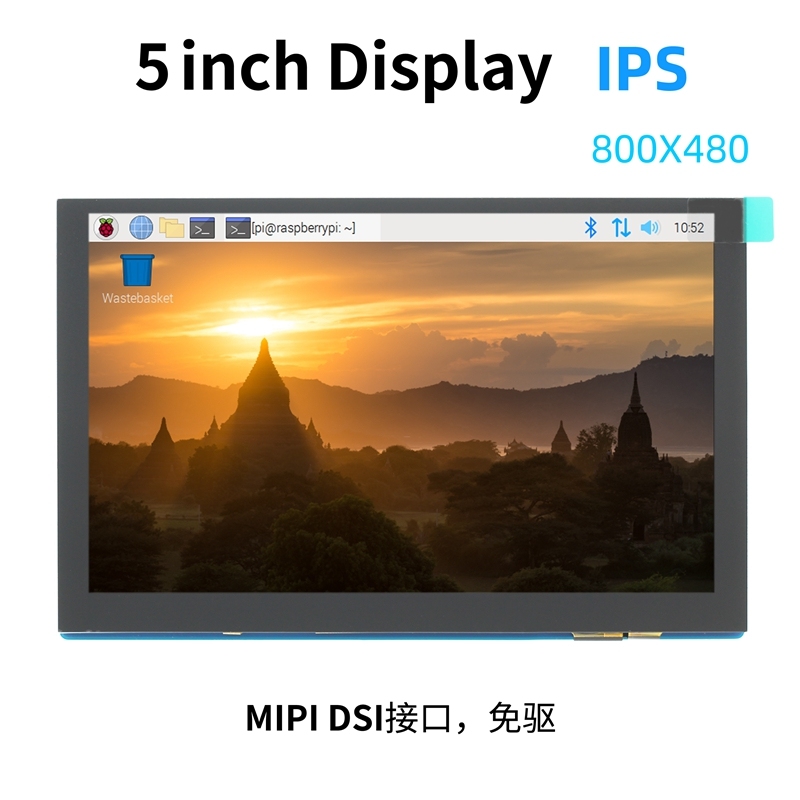

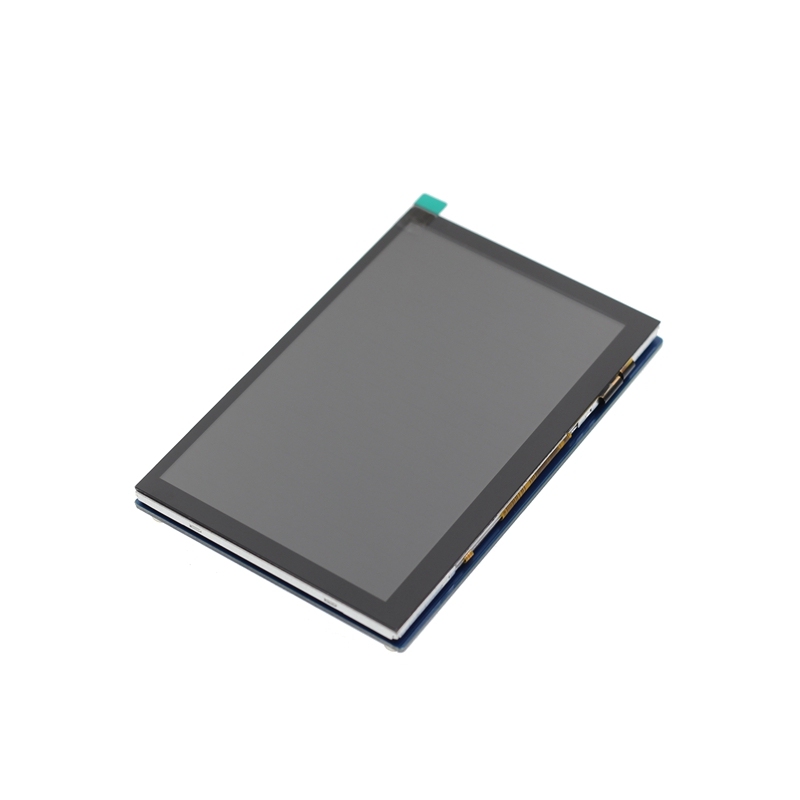

5 Inch IPS TFT LCD Screen 800*480 Mipi Dsi Interface Capacitive Touch Panel Raspberry Pi Display

Item No.: RP501DSI016
MIPI DSI signal Displays are designed to work with the Raspberry Pi or embedded system, single board computers (or desktop/laptops) which support MIPI DSI  signal output. This series display modules come with a control board with a MIPI DSI signal interfa
Description
5 Inch IPS TFT LCD Screen 800*480 Mipi Dsi Interface Capacitive Touch Panel Raspberry Pi Display

Product Description

  • 800x480 resolution display, IPS full view
  • Raspberry Pi MIPI DSI interface direct output, plug and play, no need to install driver

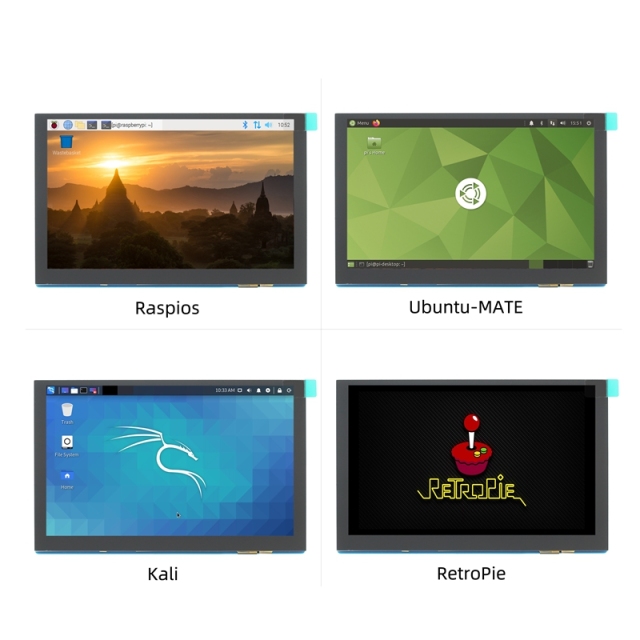

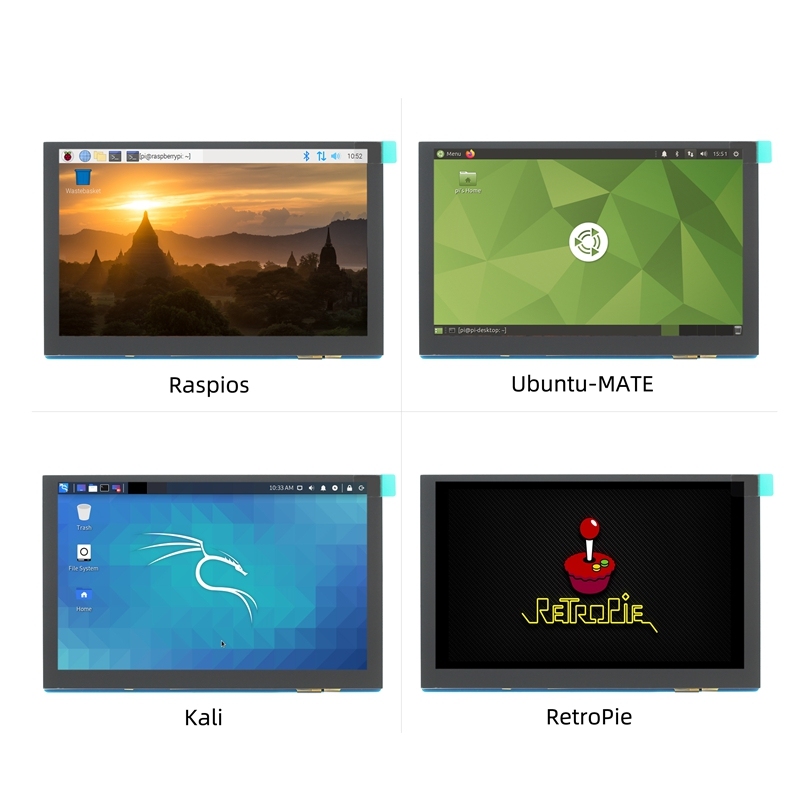

  • Support for official system Raspbian, 2 points to zoom the page
  • Support Ubuntu/Kali/Win10 IoT, single touch
  • Support Retropie
  • Backlight adjustment through KEY, IIC command and PWM, adapt to different
    use environment

Parameter
Name Descriptions
LCD Type IPS TFT
LCD Size 5 inch
LCD Resolution 800*480
LCD Interface type RGB888,16.7M true color

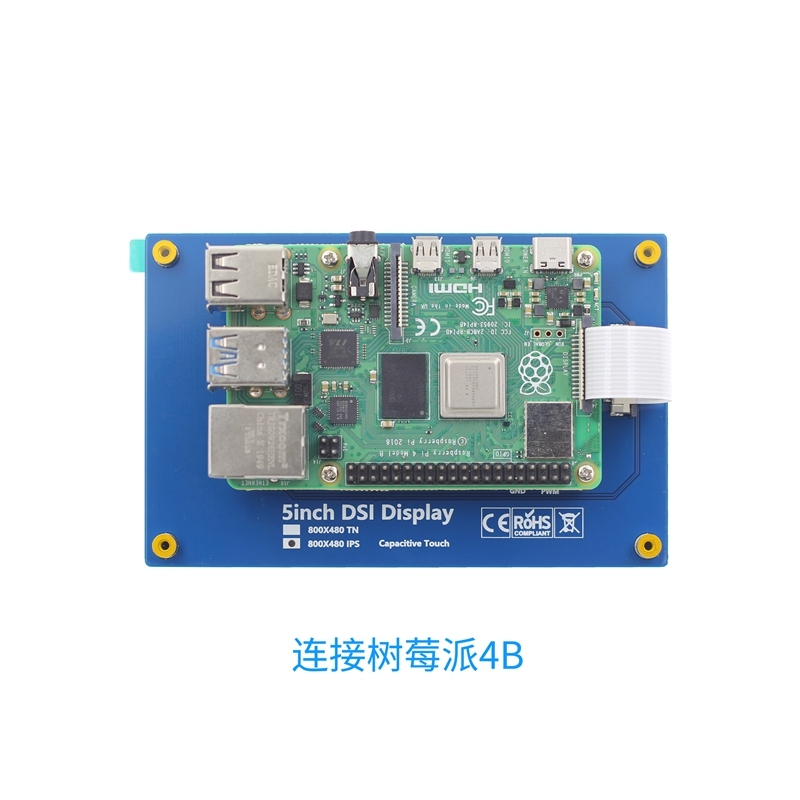

Module Interface Type Raspberry Pi MIPI DSI
Touch screen type Capacitive touch screen
Viewing Angle IPS: 178°
Active Area 108.00*64.80 (mm)
Working Voltage 3.3V
Maximum Operating Current 340mA
Operating Temperature -20ºC-70ºC

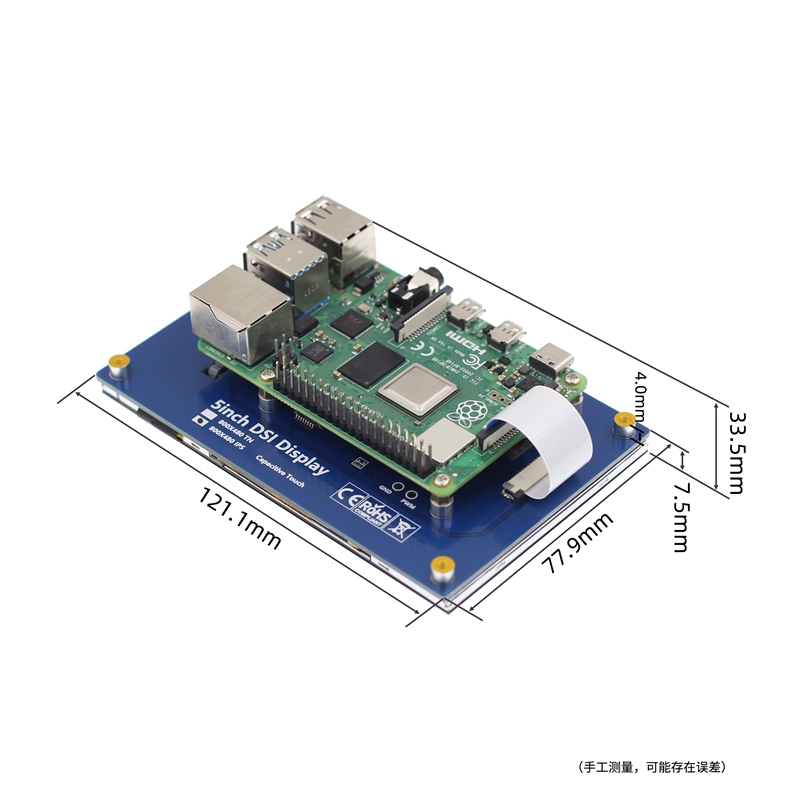

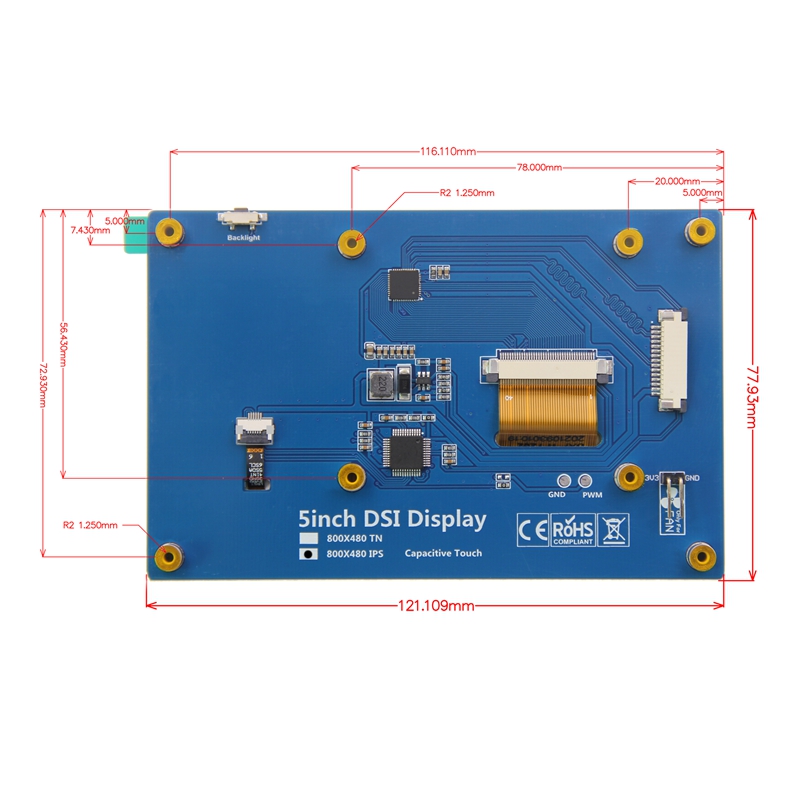

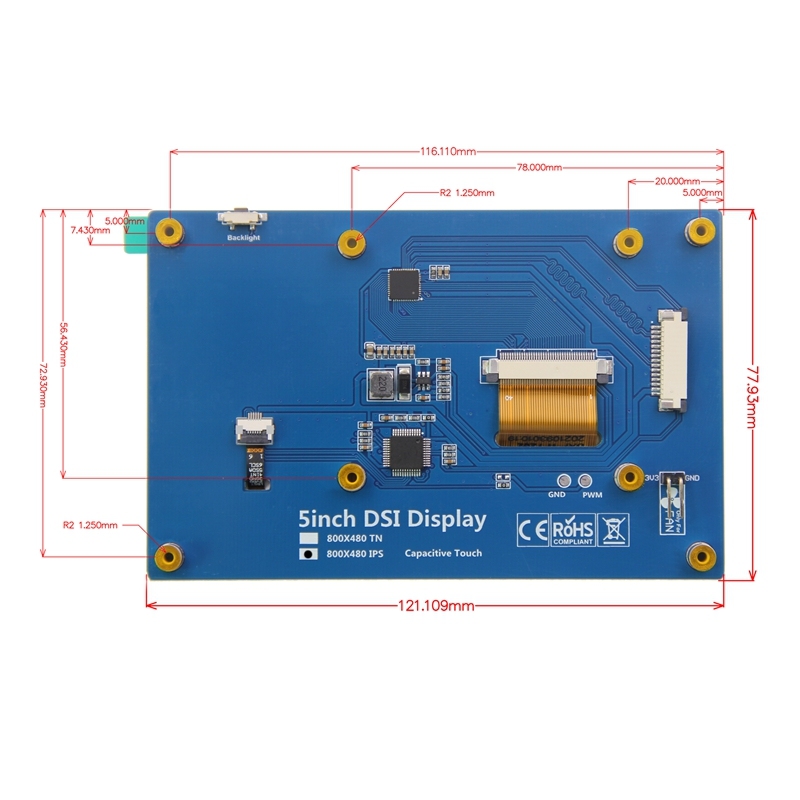

Module Size 121.1*77.9 (mm)
Module Weight (net weight) 112g
Package Size 154*143*38(mm)
Package Weight 180g





Brand:
Reaper , over ten years manufacturer and exporter of various LCD display including mono LCD, TFT display, OLED display, touch panel and customized LCD solution.With the advantages of high contrast,fast response time, wide viewable angle and low power consumption, Reaper's products are widely used in Industrial Equipment, Medical devices,Home Intelligent Devices, Digital comsumers, Video Game Devices,Instruments etc.
