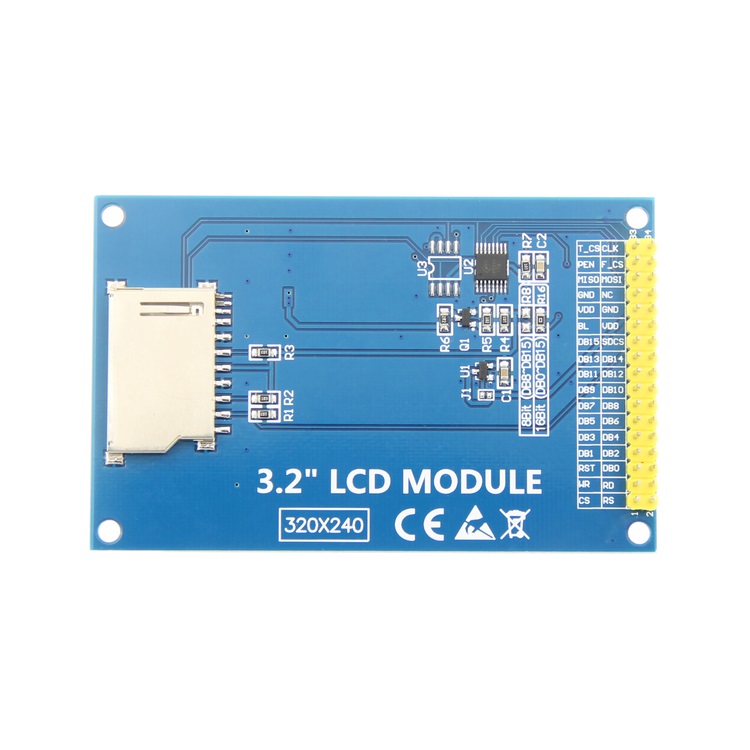

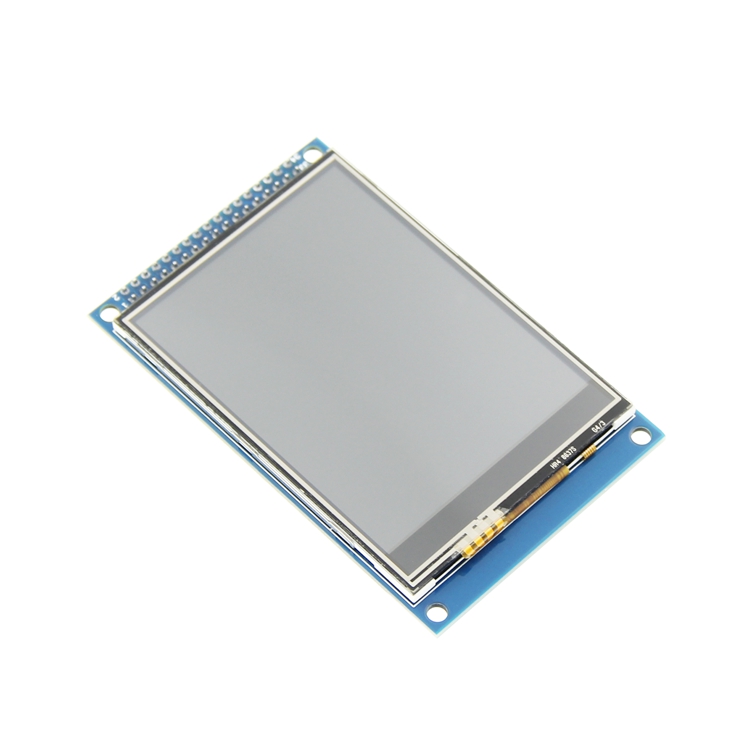

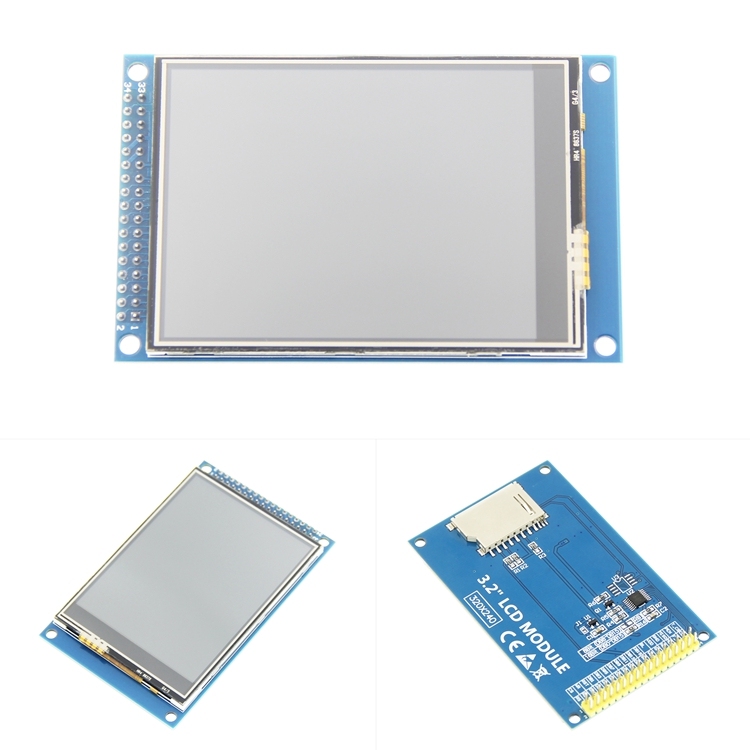

3.2 Inch 240X320 Touch Screen TFT LCD Color Display SD Card Module Ili9341 Compatible with Atomic 34p LCD Interface
> 3.2-inch color screen, support 16BIT RGB 65K color display, display rich colors
> 240x320 resolution for clear display
> 16-bit parallel bus transmission for fast transfer speed
> Supports ALIENTEK STM32 Mini, Elite, WarShip, Explorer, and Apollo development boards program and direct plug-in use
> Support for touch function
> Support SD card function expansion
> Provides a rich sample program for STM32 and C51 platforms
> Military-grade process standards, long-term stable work
> Provide underlying driver technical support
| Name |
Parameter |
| Display Color |
RGB 65K color |
| SKU |
have touch screen: RPMRB3205 |
| have no touch screen: RPMRB3204 |
| Screen Size |
3.2(inch) |
| Type |
TFT |
| Driver IC |
ILI9341 |
| Resolution |
240*320(Pixel) |
| Module Interface |
16-Bit Parallel Interface |
| Active Area (AA area) |
48.6x64.8(mm) |
| Module PCB Size |
57.6x90.73.0(mm) |
| Operating Temperature |
-20℃~70℃ |
| Storage Temperature |
-40℃~70℃ |
| VCC power voltage |
3.3V~5V |
| Logic IO port voltage |
TBD |
| Power Consumption |
TBD |
| Rough Weight(Package containing) |
No touch: 45(g) / With touch: 57(g) |
