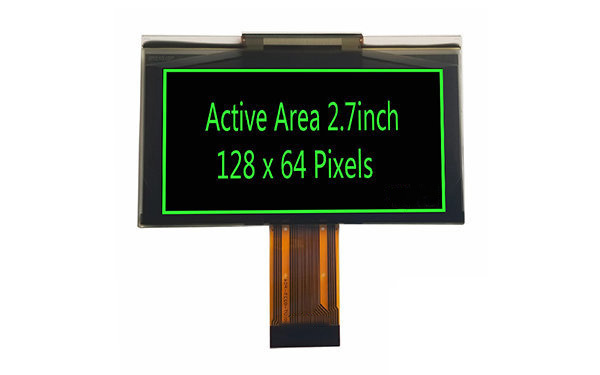

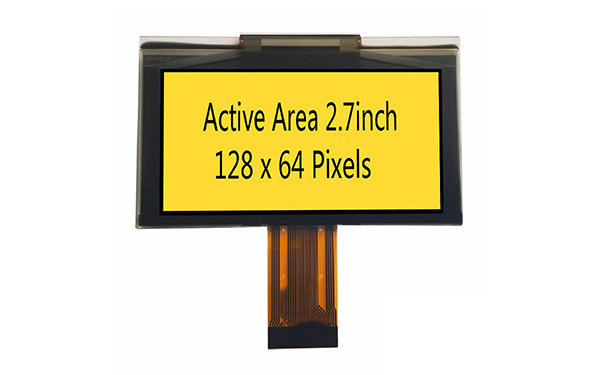

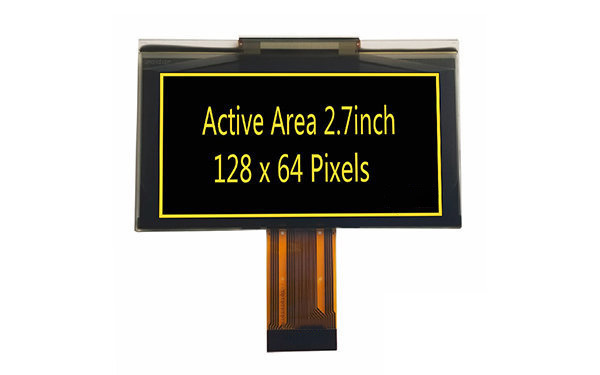

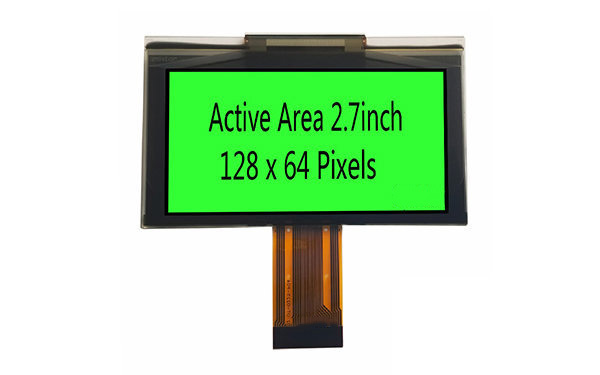

2.7 Inch Yellow/Blue/Green/White Industrial-Control OLED Display Screen Module 128*64 Resolution
| Model: |
RP-2864RPDT06 |
| Size |
2.7 inch |
| Dots |
128x64 |
| Color |
Monochrome |
| Display type |
OLED Display |
| Driving mode |
passive matrix |
| Driving responsibility |
1/64 task |
| Drive IC |
SSD1322 |
| Interface |
3-line、4-line SPI、IIC interface |
| Display color |
16 grayscale monochrome |
| Operating Temperature: |
-40 ~ +85ºC |

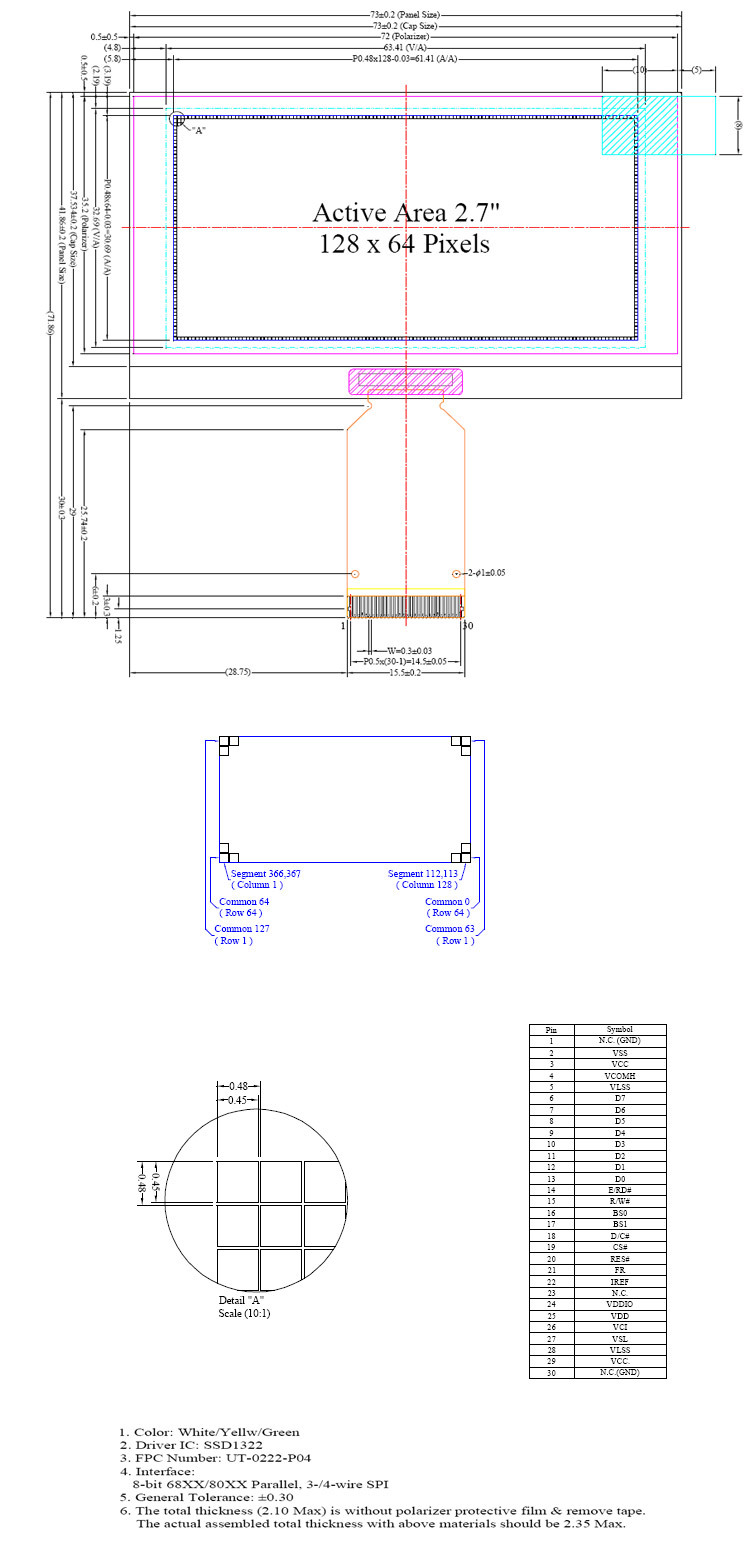

| Module size |
84.00 × 45.80 × 2.00(mm) |
| Panel size |
84.00 × 25.80 × 2.00 (mm) including "anti glare polarizer" |
| Effective area |
69.10 × 17.26(mm) |
| Pixel spacing |
0.27 × 0.27(mm) |
| Pixel size |
0.254 × 0.254(mm) |
| Weight |
9.01 (g) ± 10% |
