OLED

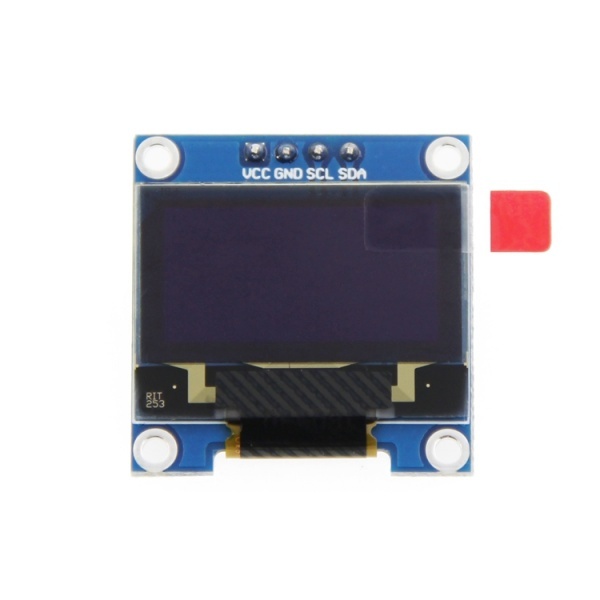

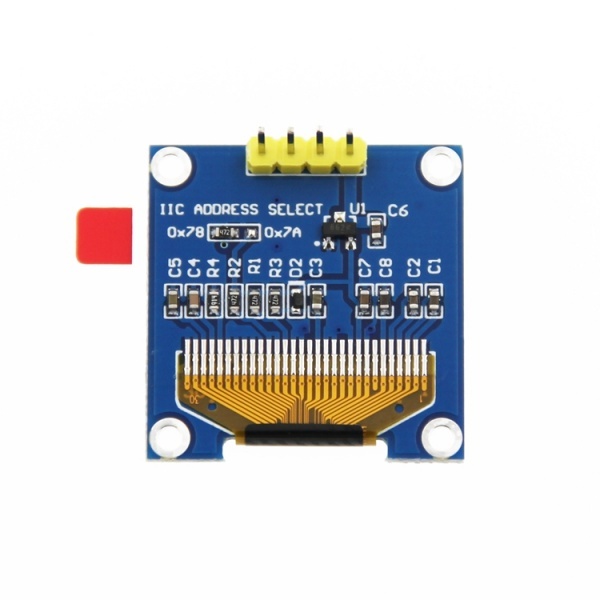

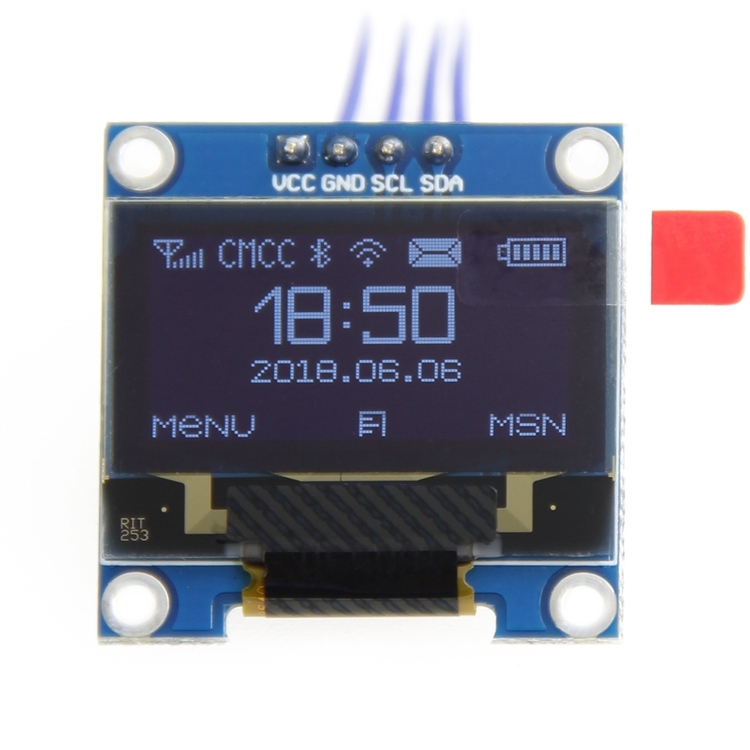

0.96inch 128x64 IIC Oled module

Item No.: RPMC096GW
High resolution: 128x64 (have the same resolution as 12864, high PPI);Large viewing angle: greater than 160° (a screen with the largest viewing angle in the monitor);Ultra-low power consumption: it's 0.06w in normal condition(far less than TFT display)
Description
0.96inch OLED Module 128X64 with IIC interface board
Model: RPMC096GW
Size 0.96 inch
Dots 128x64
Color White

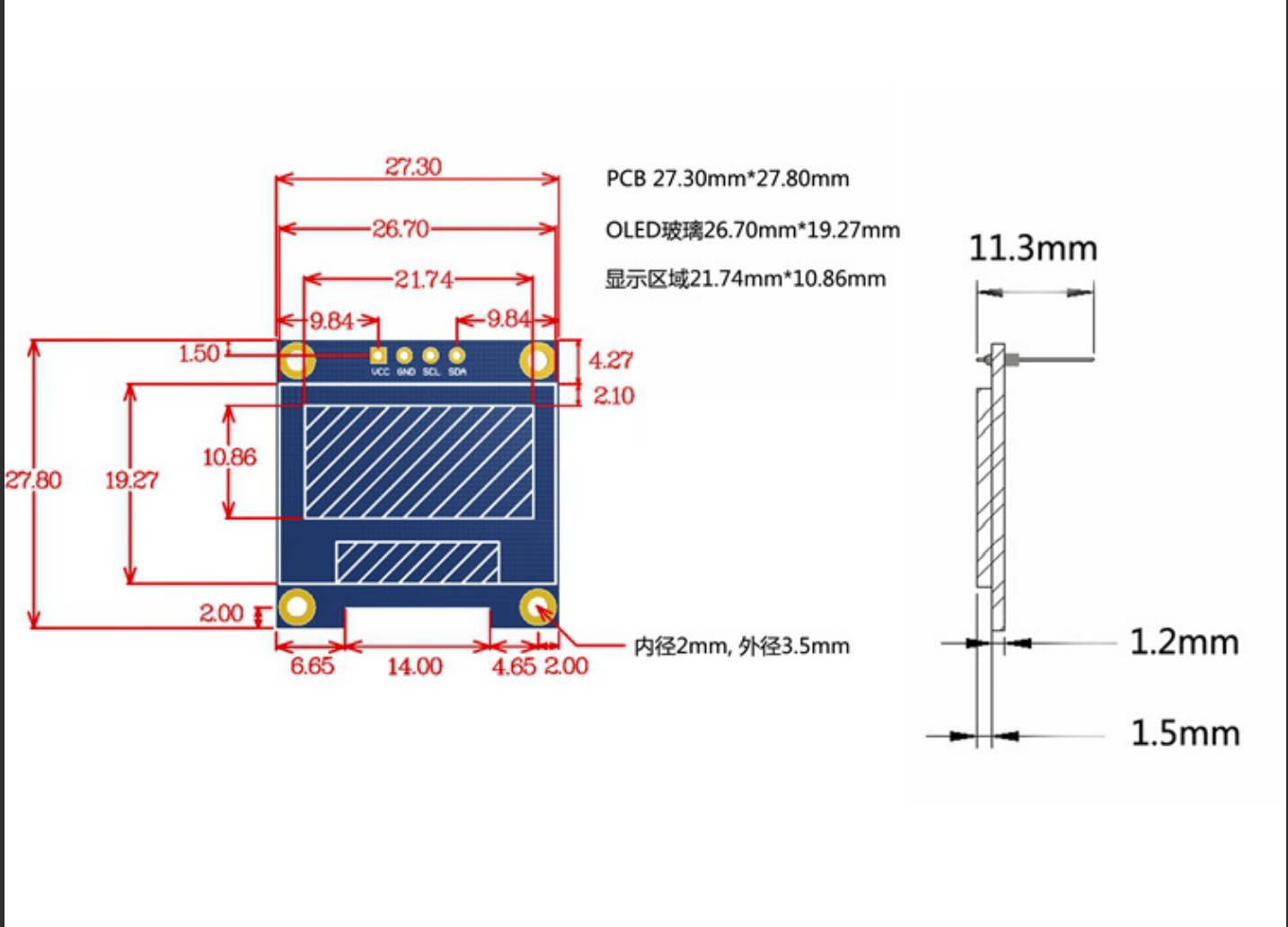

Outline Demision 27.3 x 27.8 x 1.41 mm
Viewing Area 23.74 x 12.864 mm
Active Area 21.744 x 10.864 mm
Drive IC SSD1306BZ
Interface IIC,4PIN
Pin number 30
Operating Temperature: -40 ~ +70ºC
Storage Temperature: -40 ~ +85ºC
