OLED

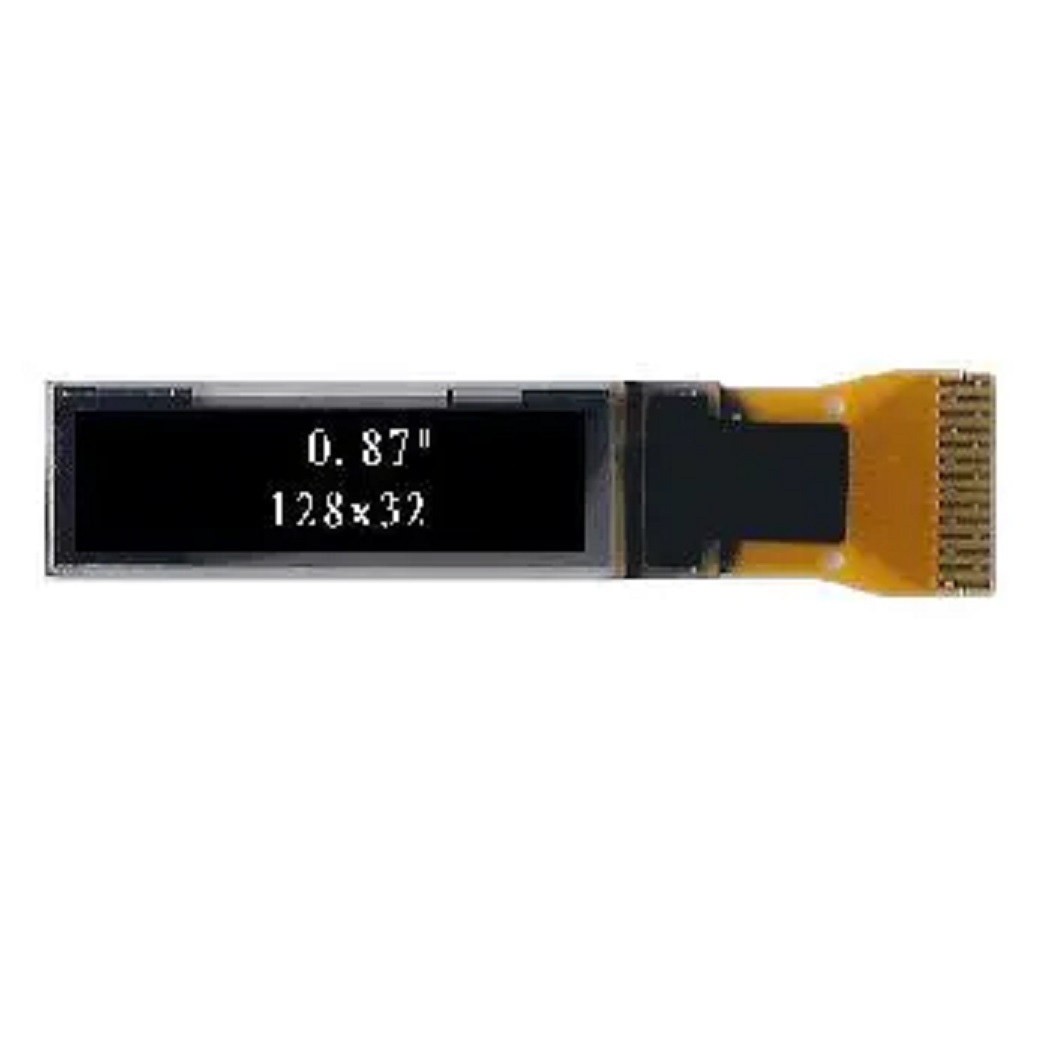

0.87inch OLED Display 128X32 OLED LCD Module

Item No.: HP12832-00-TSWG15P087
OLED Modules are perfect for wearable devices, hardware wallet, E-cigarette, white goods, smart home applications, IoT System, medical system, industrial instrument, DJ mixer, car equipment, car dashboard, car audio, car clock, car door display system, wa
Description
0.87inch OLED Display 128X32 OLED LCD Module
Model: HP12832-00-TSWG15P087
Size 0.87 inch
Dots 128x32
Color White

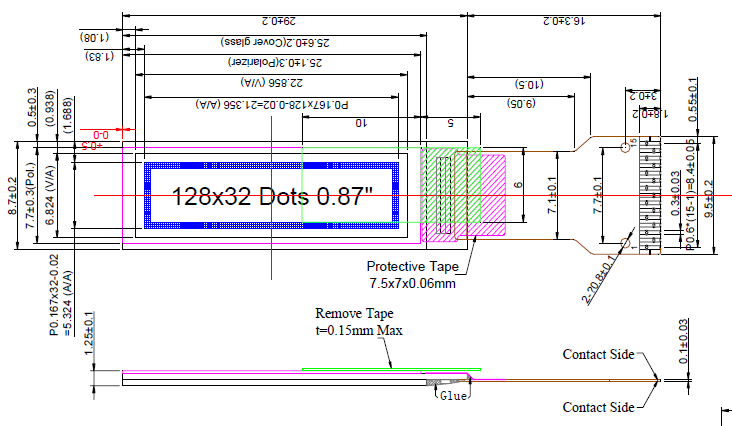

Outline Demision 29.0 x 8.7 x 1.22 mm
Viewing Area 22.856 x 6.824 mm
Active Area 21.356 x 5.324 mm
Drive IC SSD1316Z
Interface SPI
Pin number 15
Operating Temperature: -40 ~ +70ºC
Storage Temperature: -40 ~ +85ºC
