Graphic LCD Display

192x64 Monochrome Graphic lcd display module

Item No.: RP19264F
Reaper's graphic LCD displays (liquid crystal display) are available in dot matrix format of graphic resolution including 122x32, 128x64, 128x128, 144x32, 160x128, 160x160, 160x32, 160x80, 192x64, 192x128, 240x64, 320x240 and etc.  The sizes are including

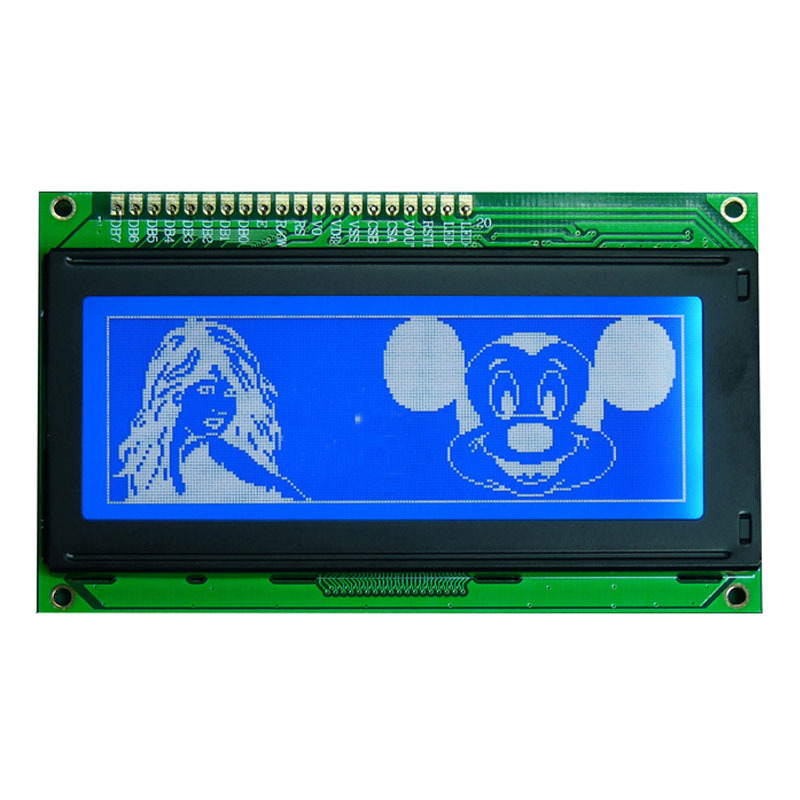

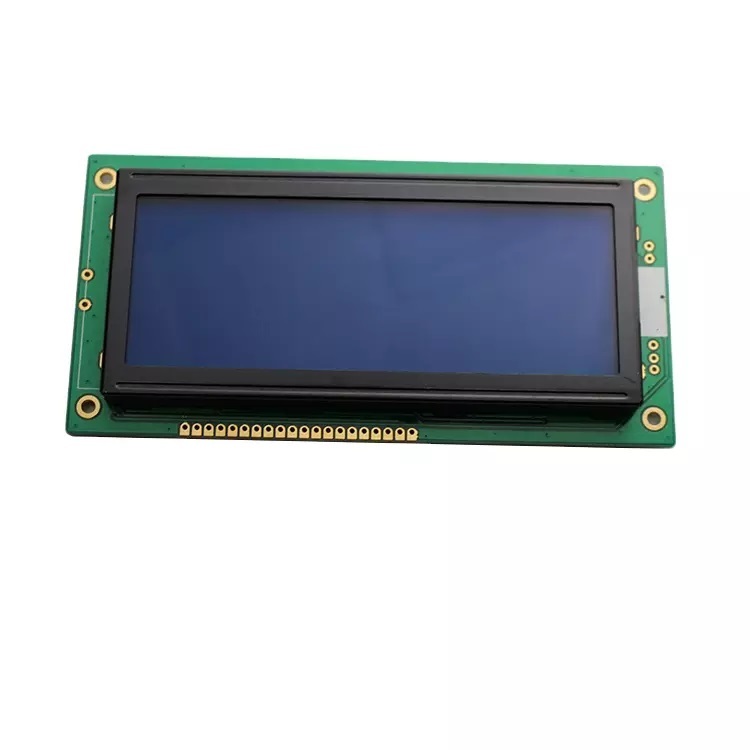

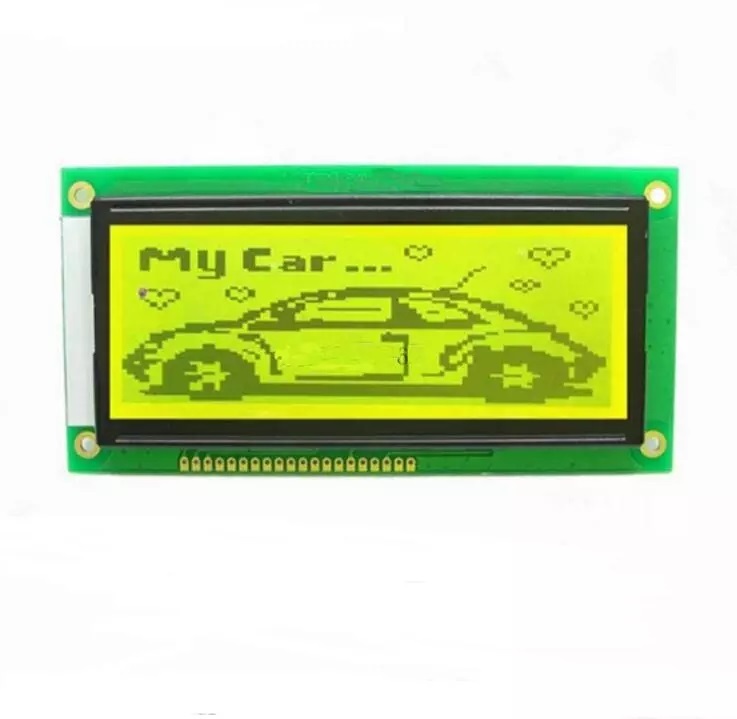

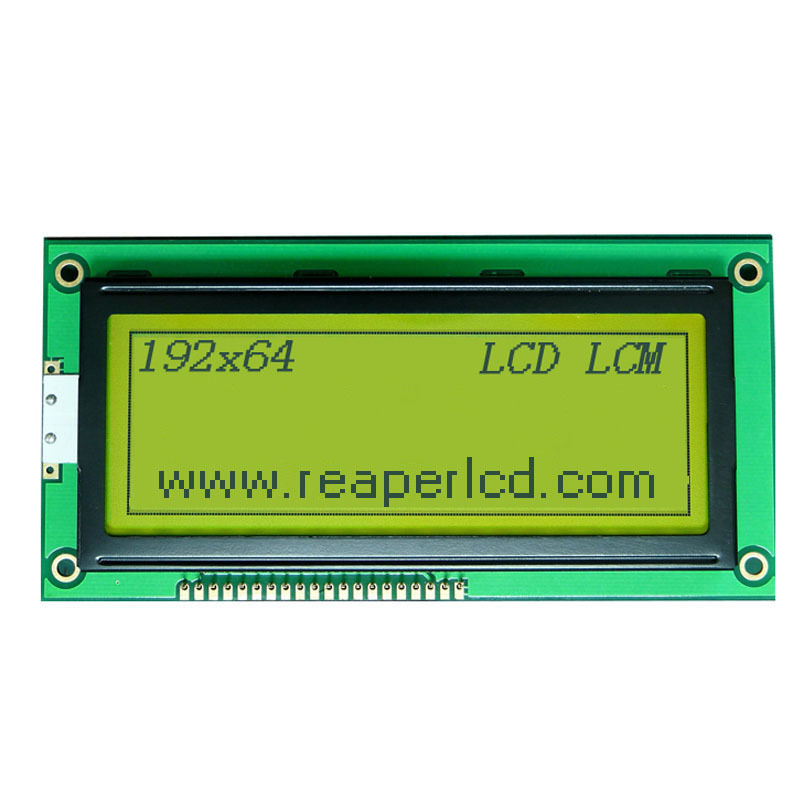

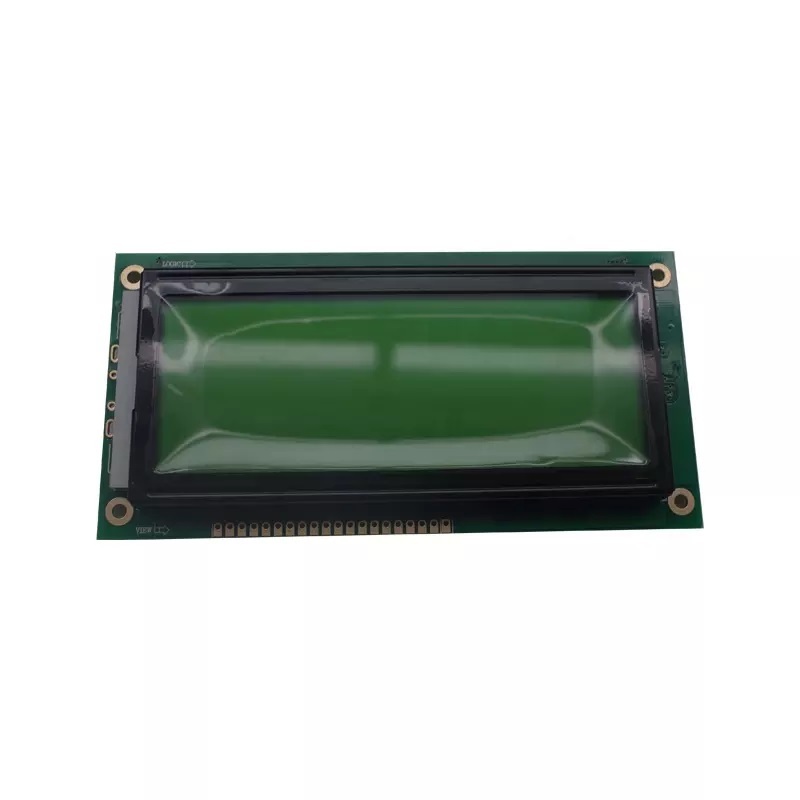

192x64 Monochrome Graphic lcd display module
Model: RP19264F
Dots: 192 x 64
Module Size 100 x 60 x 13.3mm
Viewing Area 84 x 31 mm
Active Area 78.68 x26.2 mm
Dot Pitch 0.41 x 0.41 mm
Dot Size(W*Hmm) 0.36 x 0.36 mm
Controller NT7107,NT7108 or Equivalent
LCD Type STN BLUE/Yellow-Green
Operating Voltage 5V
Operating Temperature -20 ~ +70ºC
Storage Temperature -30 ~ +80ºC
