Graphic LCD Display

192x64 Monochrome Graphic lcd display module

graphic LCD can be used on instrument and industry machinery equipment as well as electrical home appliances, consumer electronics including white goods, POS system, home applications, industrial instrument, automation, audio/visual display systems, and m

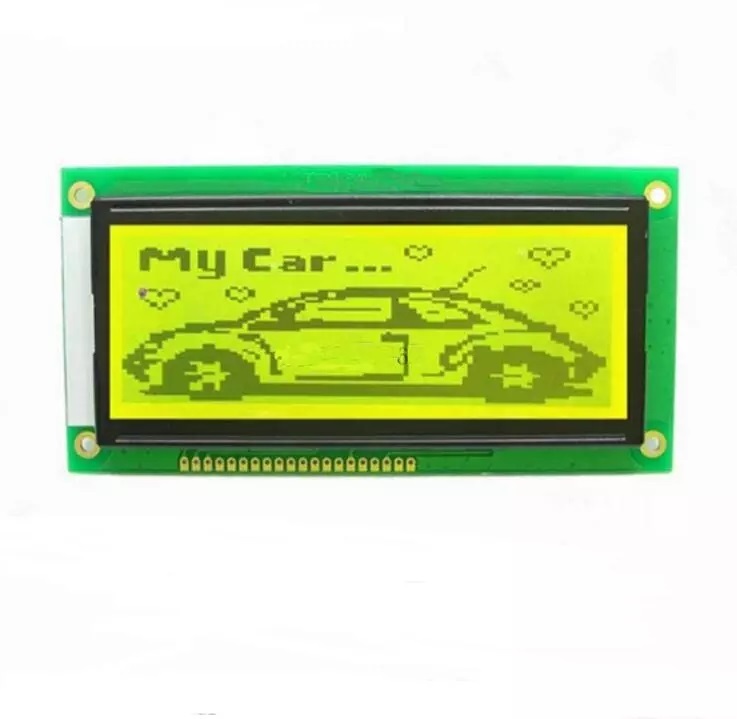

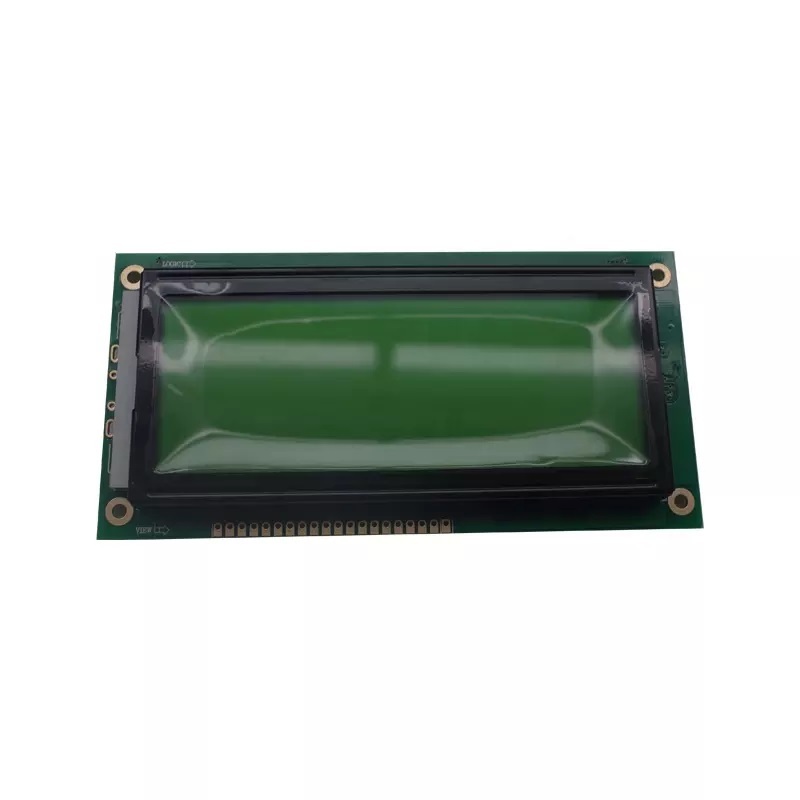

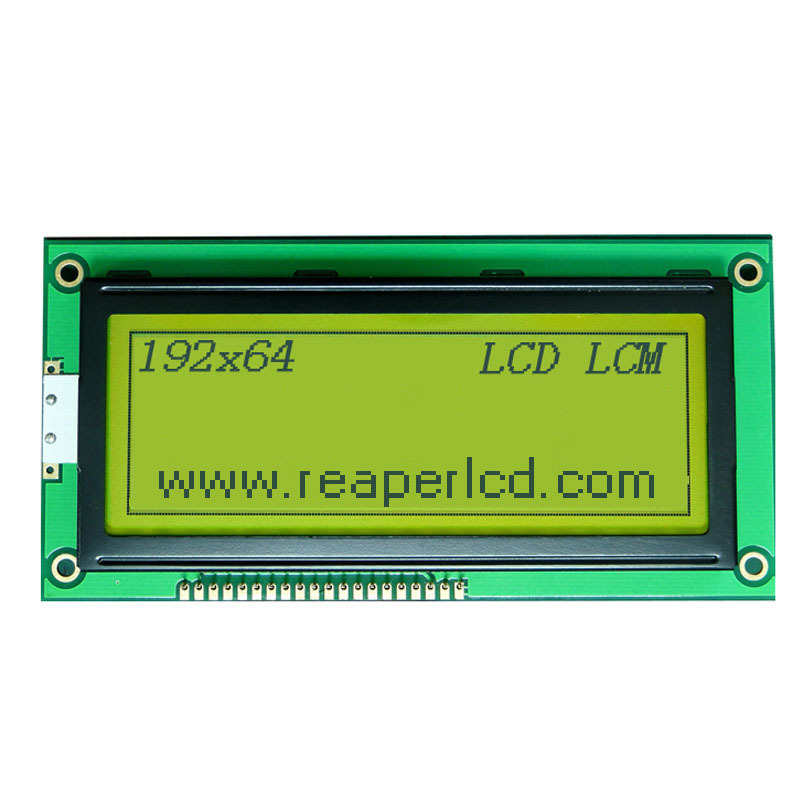

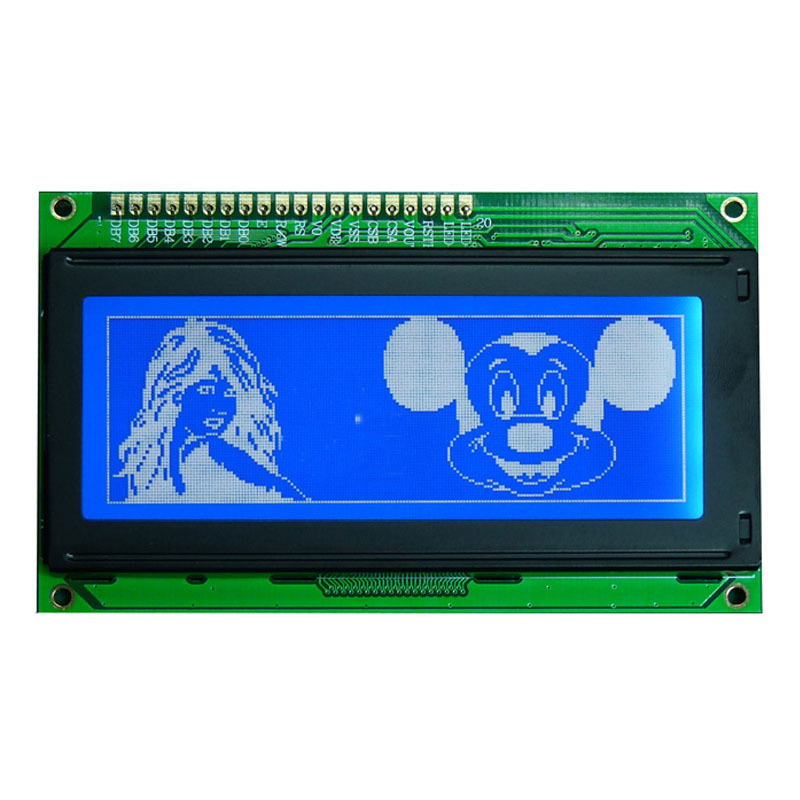

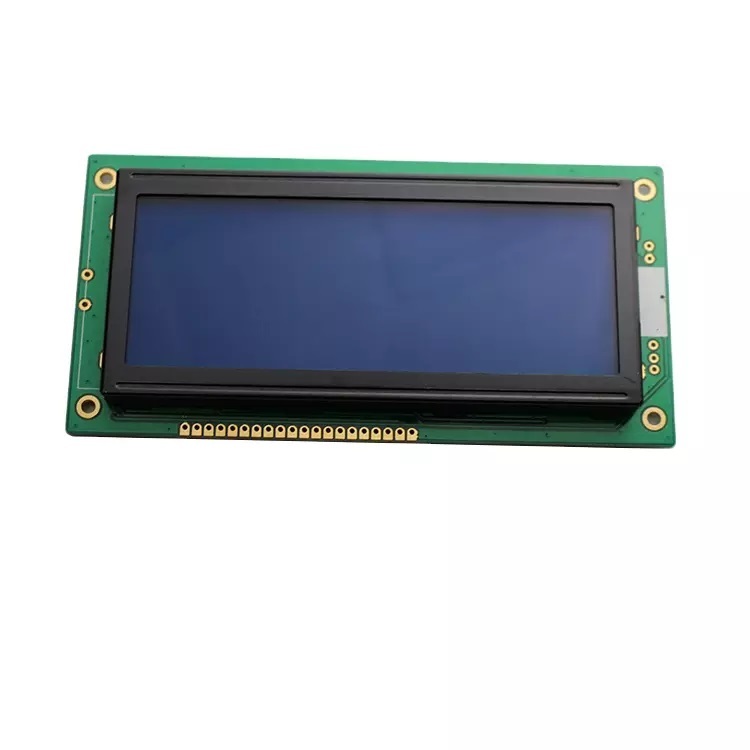

192x64 Monochrome Graphic lcd display module
Model: RP19264F
Dots: 192 x 64
Module Size 100 x 60 x 13.3mm
Viewing Area 84 x 31 mm
Active Area 78.68 x26.2 mm
Dot Pitch 0.41 x 0.41 mm
Dot Size(W*Hmm) 0.36 x 0.36 mm
Controller NT7107,NT7108 or Equivalent
LCD Type STN BLUE/Yellow-Green
Operating Voltage 5V
Operating Temperature -20 ~ +70ºC
Storage Temperature -30 ~ +80ºC
