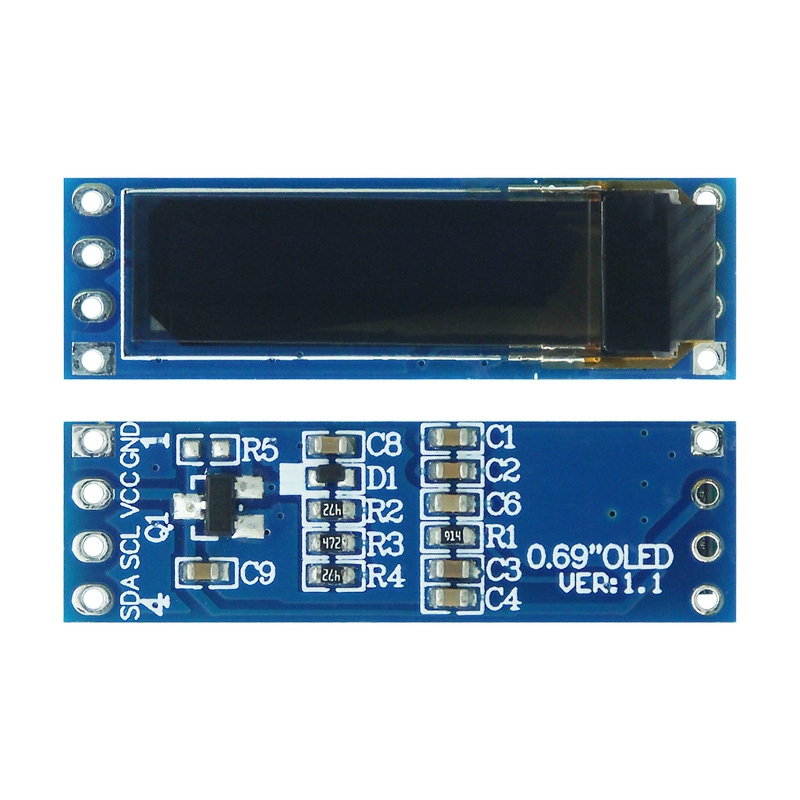

Small Monochrome OLED Screen 0.69 Inch 96*16 Resolution Iic Interface Bar OLED Display

No.RP069HJ91S-V01

High resolution: 96x16 (have the same resolution as 9616, high PPI);Large viewing angle: greater than 160° (a screen with the largest viewing angle in the monitor);Ultra-low power consumption: it's 0.06w in normal condition(far less than TFT display)

  • Small Monochrome OLED Screen 0.69 Inch 96*16 Resolution Iic Interface Bar OLED Display
  • Small Monochrome OLED Screen 0.69 Inch 96*16 Resolution Iic Interface Bar OLED Display
  • Small Monochrome OLED Screen 0.69 Inch 96*16 Resolution Iic Interface Bar OLED Display

Description

Small Monochrome OLED Screen 0.69 Inch 96*16 Resolution Iic Interface Bar OLED Display

Model: RP069HJ91S-V01
Size 0.69 inch
Dots 96x16
Color White

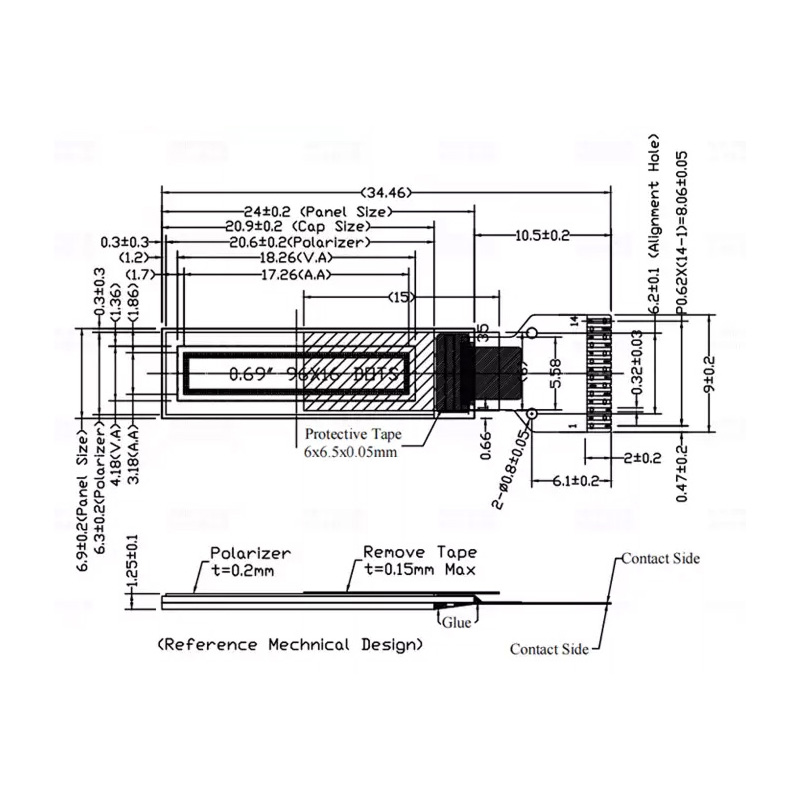

Outline Demision 26.30 x8.00 x 1.2 mm
Viewing Area 19.26 x 5.18 mm
Active Area 17.26 x 3.18 mm
Drive IC SSD1315
Interface IIC/SPI

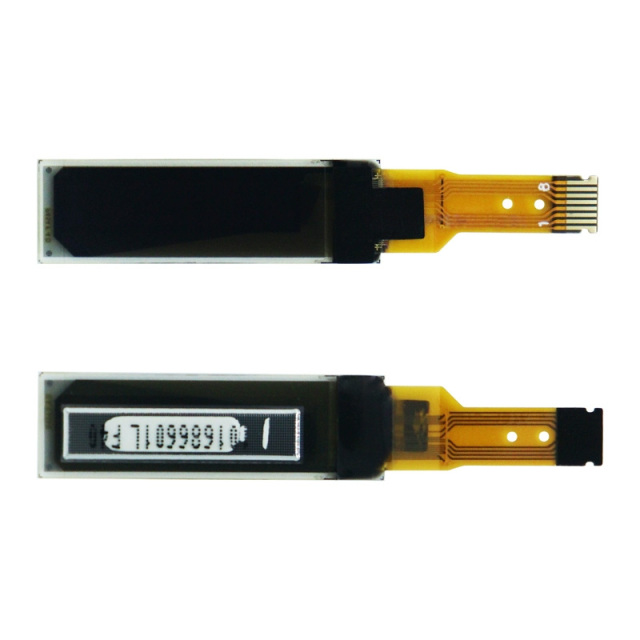

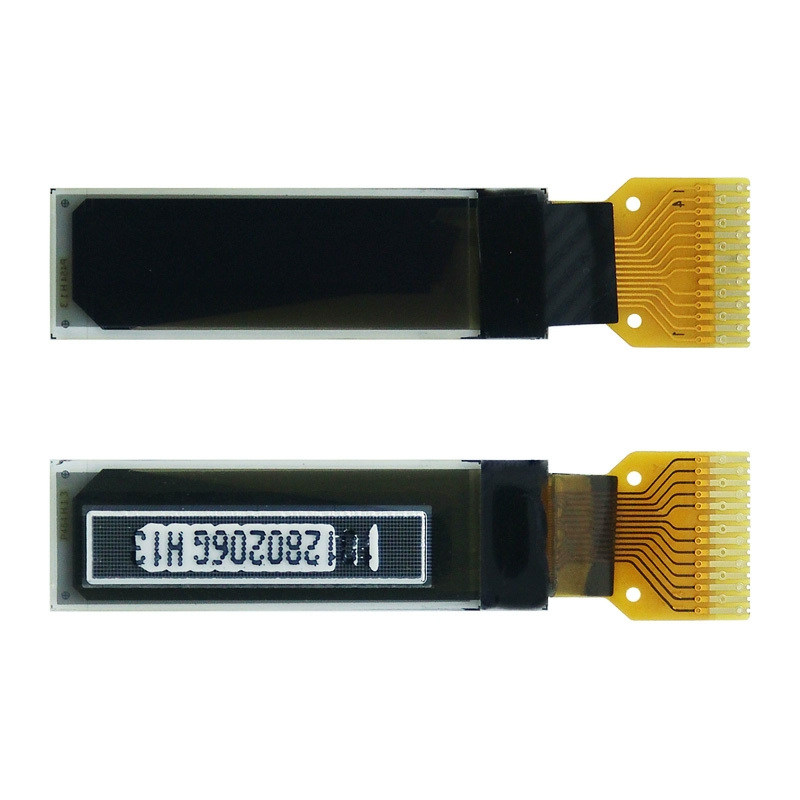

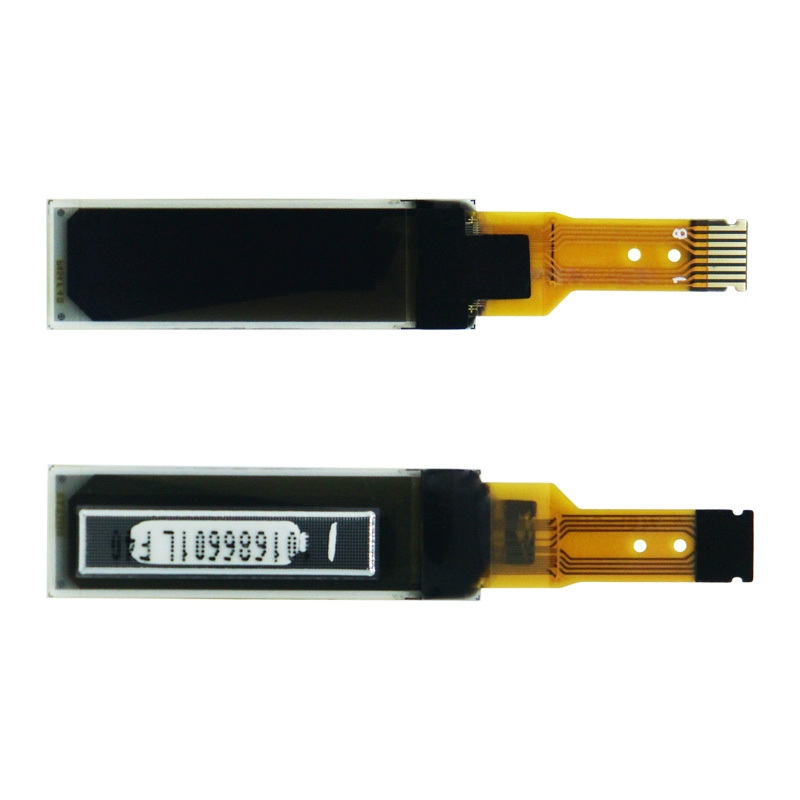

Pin number 4/8/14
Operating Temperature: -40 ~ +70ºC
Storage Temperature: -40 ~ +85ºC
