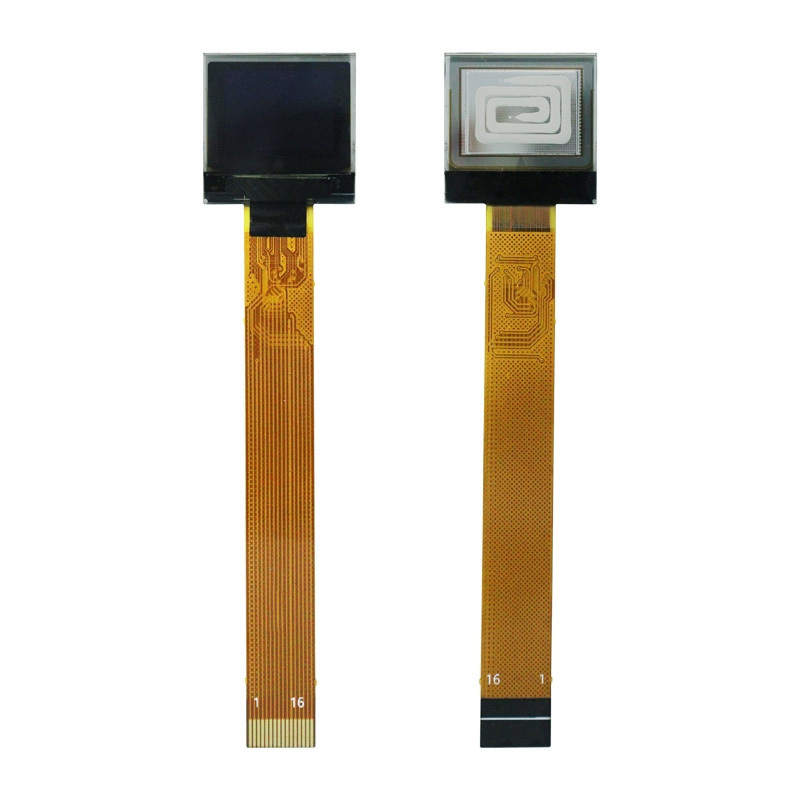

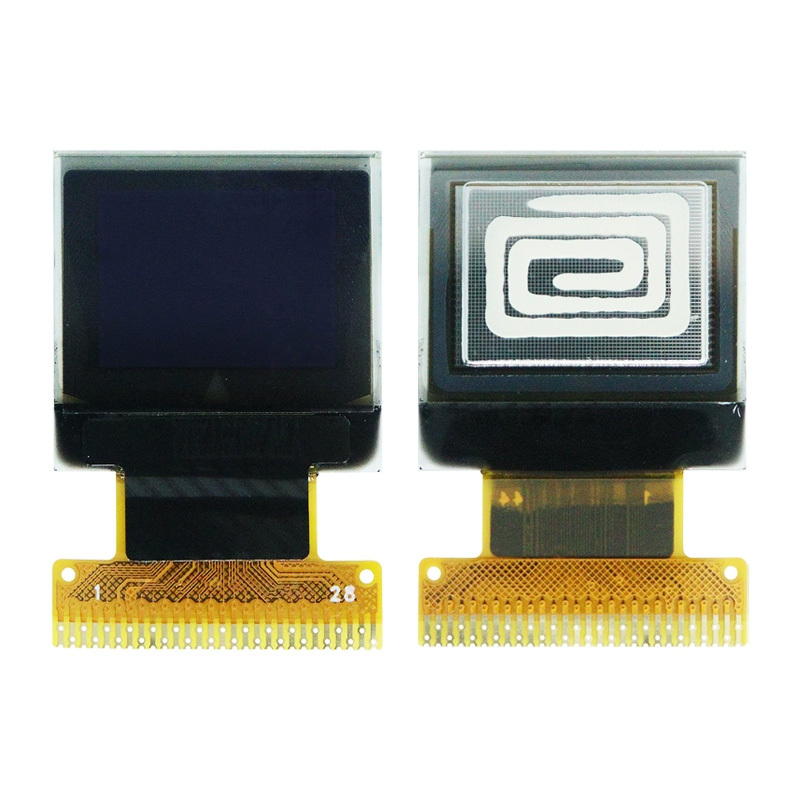

Small Monochrome OLED Screen 0.66 Inch 64*48 Resolution Iic/Spi Interface OLED Display

No.RP066HJ64S-V01

High resolution: 64x48 (have the same resolution as 6448, high PPI);Large viewing angle: greater than 160° (a screen with the largest viewing angle in the monitor);Ultra-low power consumption: it's 0.06w in normal condition(far less than TFT display)

GET A QUOTE
  • Small Monochrome OLED Screen 0.66 Inch 64*48 Resolution Iic/Spi Interface OLED Display
  • Small Monochrome OLED Screen 0.66 Inch 64*48 Resolution Iic/Spi Interface OLED Display
  • Small Monochrome OLED Screen 0.66 Inch 64*48 Resolution Iic/Spi Interface OLED Display
  • Small Monochrome OLED Screen 0.66 Inch 64*48 Resolution Iic/Spi Interface OLED Display

Description

Small Monochrome OLED Screen 0.66 Inch 64*48 Resolution Iic/Spi Interface OLED Display

Model: RP066HJ64S-V01
Size 0.66 inch
Dots 64x48
Color White

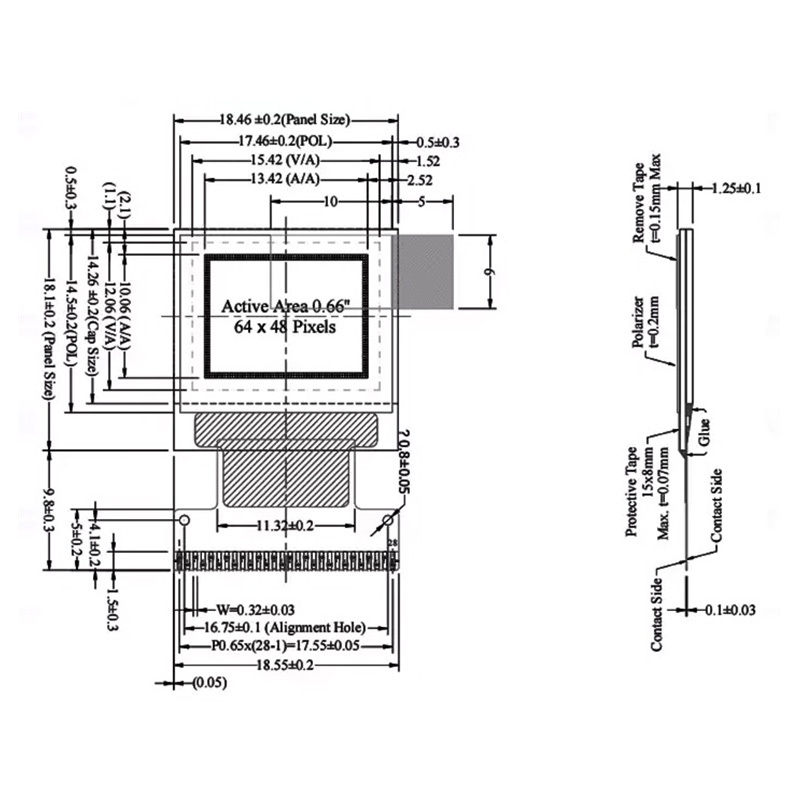

Outline Demision 18.46 x18.10 x 1.25 mm
Viewing Area 15.42 x 12.06 mm
Active Area 13.42 x 10.06 mm
Drive IC SSD1315

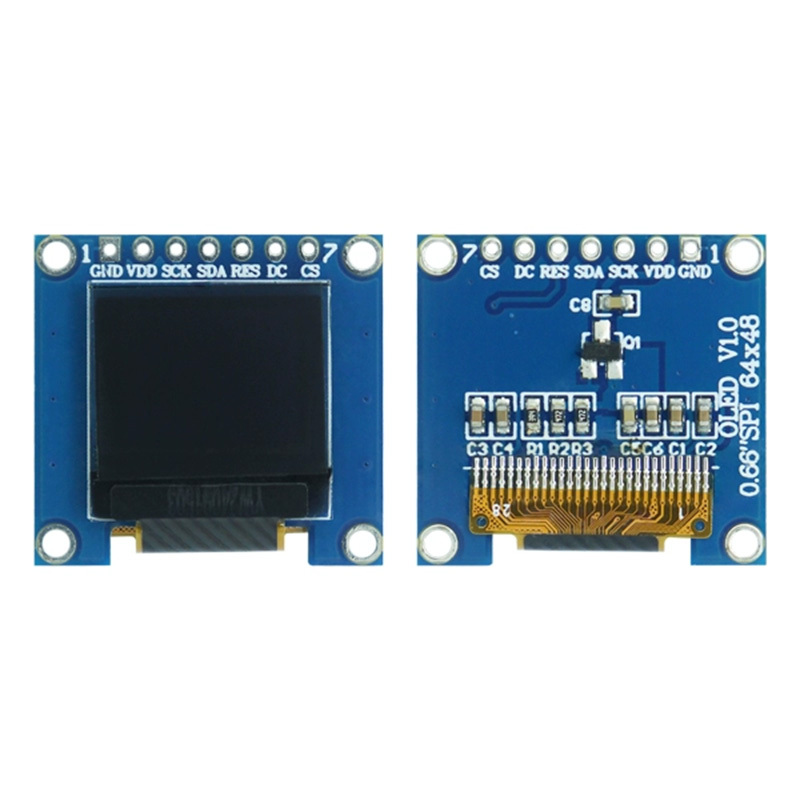

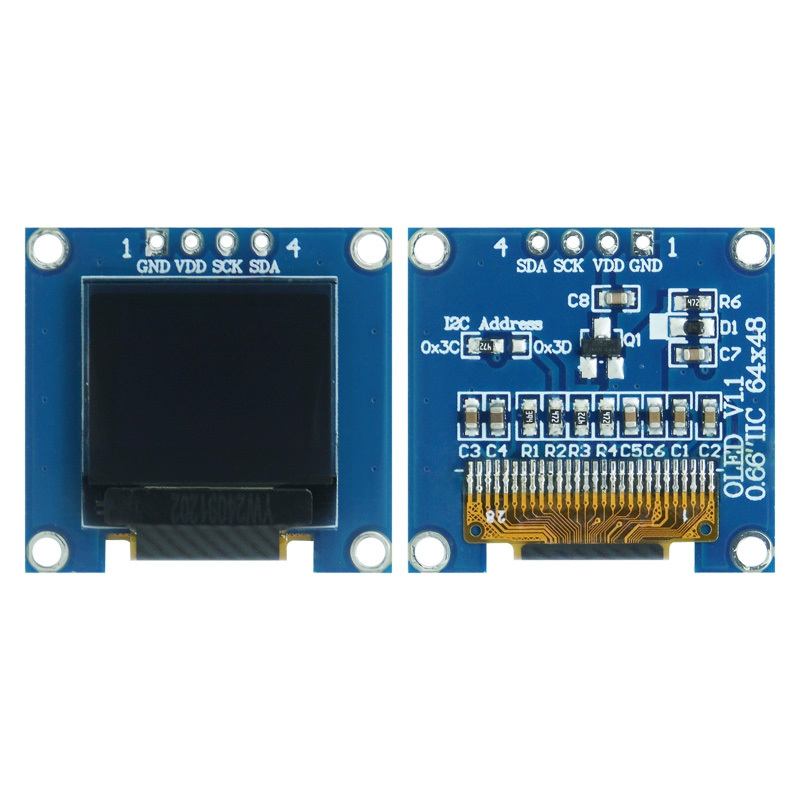

Interface IIC/SPI
Pin number 4/7/28
Operating Temperature: -40 ~ +70ºC
Storage Temperature: -40 ~ +85ºC
