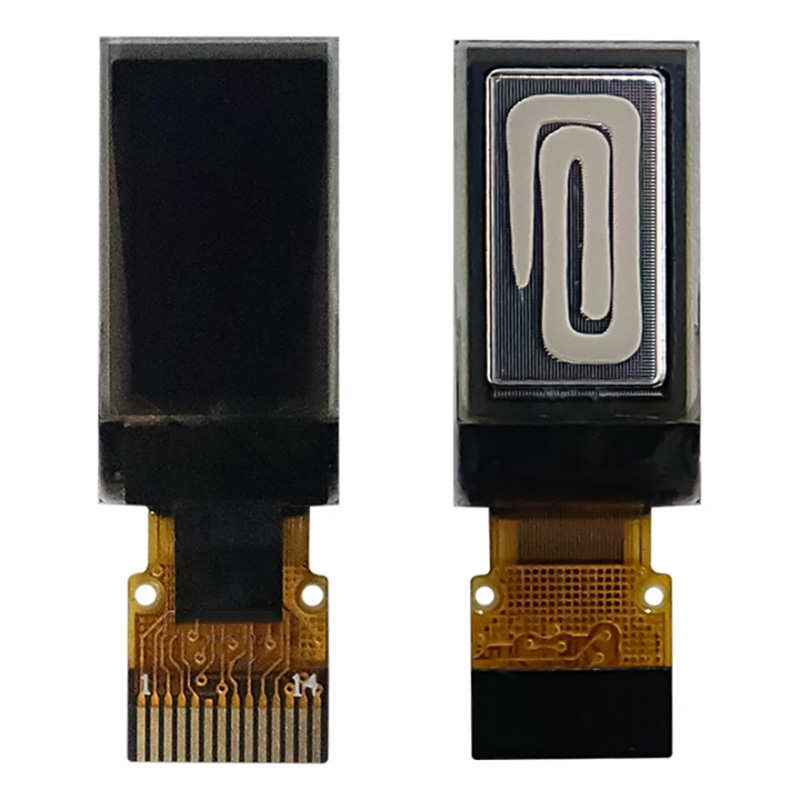

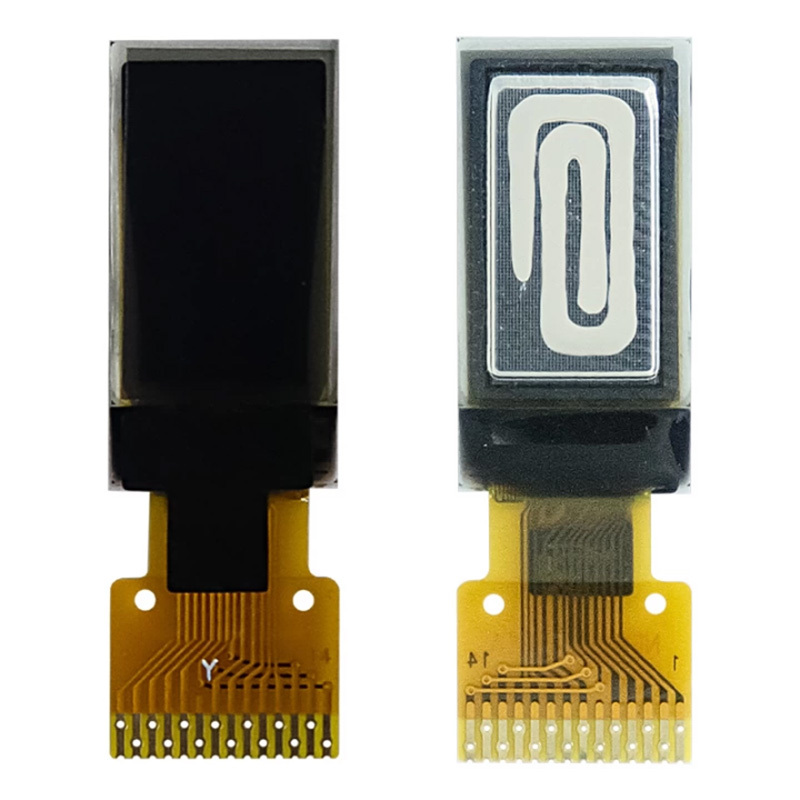

Small Monochrome OLED Display 0.5 Inch 48*88 Resolution Iic 14pin Interface OLED

Name: Small Monochrome OLED Display 0.5 Inch 48*88 Resolution Iic 14pin Interface OLED
Brand: reaperlcd
SKU: RP050HJ48S-V01
Availability: InStock
Rating: 5 (1 reviews)

No.RP050HJ48S-V01

High resolution: 48x88 (have the same resolution as 4888, high PPI);Large viewing angle: greater than 160° (a screen with the largest viewing angle in the monitor);Ultra-low power consumption: it's 0.06w in normal condition(far less than TFT display)

GET A QUOTE

Description

Small Monochrome OLED Display 0.5 Inch 48*88 Resolution Iic 14pin Interface OLED

Model:	RP050HJ48S-V01
Size	0.5 inch
Dots	48x88
Color	White

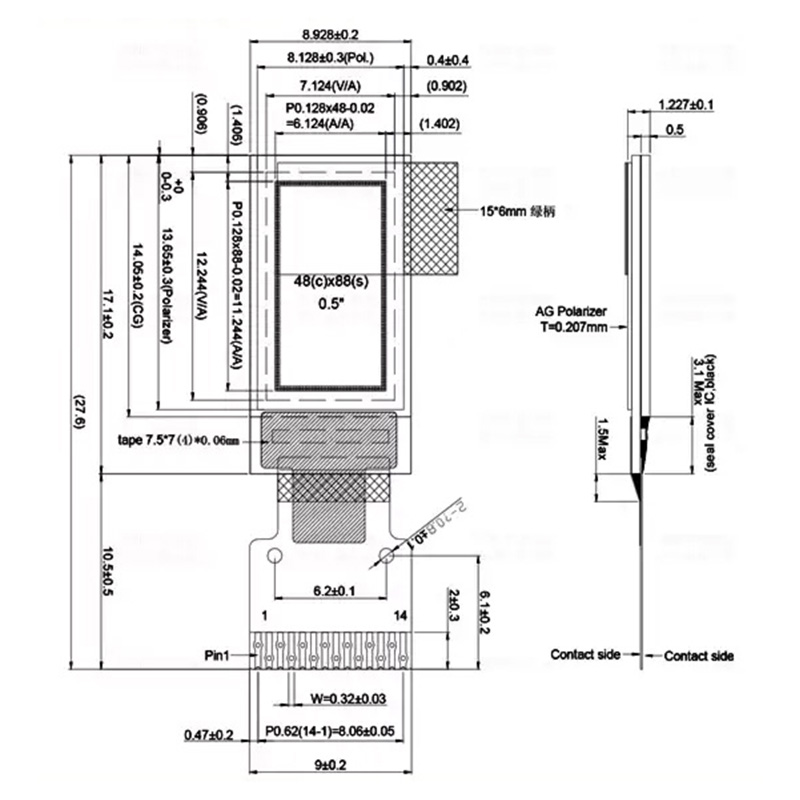

Outline Demision	8.928 x17.10 x 1.227 mm
Viewing Area	7.124 x 12.244 mm
Active Area	6.124 x 11.244 mm
Drive IC	CH1115

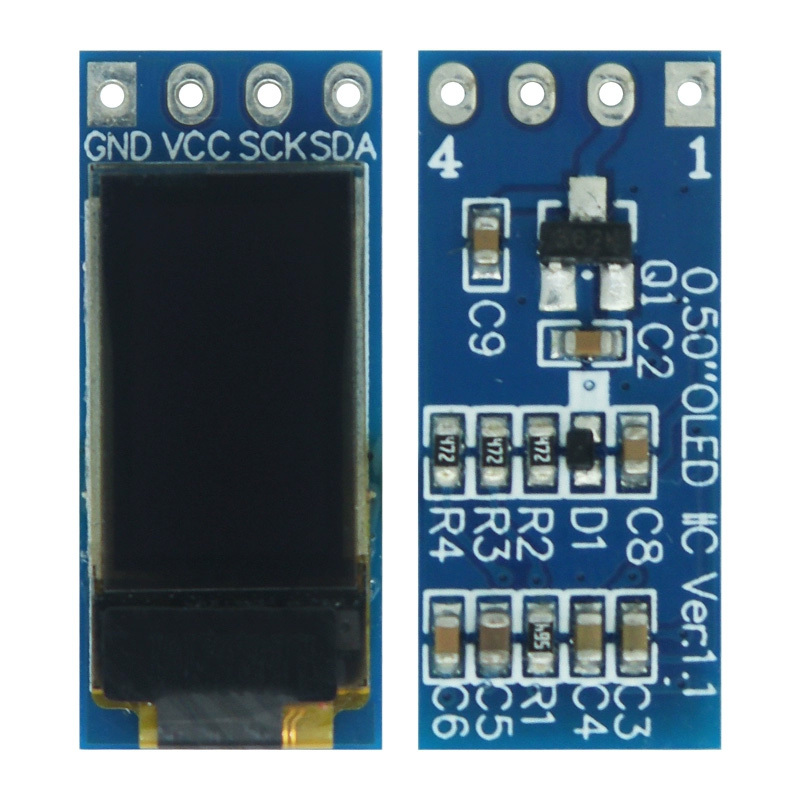

Interface	IIC
Pin number	4/14
Operating Temperature:	-40 ~ +70ºC
Storage Temperature:	-40 ~ +85ºC
