OLED

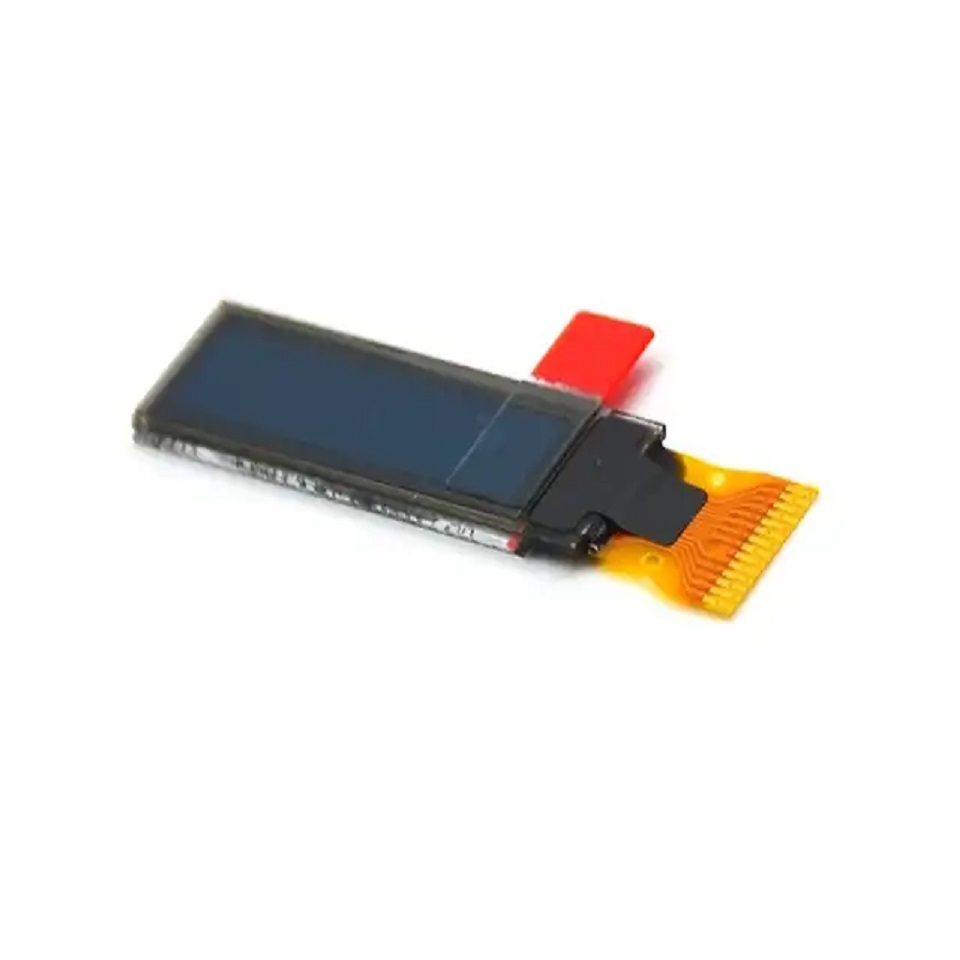

OLED Display 0.91inch 128X32 OLED

Item No.: HP12832-01-TSWG14P091-A
OLED Modules are perfect for wearable devices, hardware wallet, E-cigarette, white goods, smart home applications, IoT System, medical system, industrial instrument, DJ mixer, car equipment, car dashboard, car audio, car clock, car door display system, wa
Description
OLED Display 0.91inch 128X32 OLED
Model HP12832-01-TSWG14P091-A
Size 0.91 inch
Dots 128x32
Color Blue

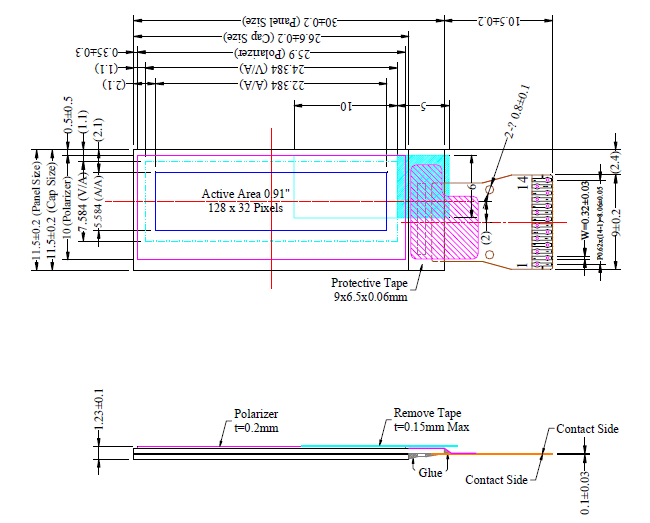

Outline Demision 30.0 x 11.5 x 1.227 mm
Viewing Area 24.384 x 7.584 mm
Active Area 22.384 x 5.584 mm
Drive IC SSD1306BZ
Interface 4-wire SPI
Pin number 14PIN
Operating Temperature: -40 ~ +70ºC
Storage Temperature: -40 ~ +85ºC
