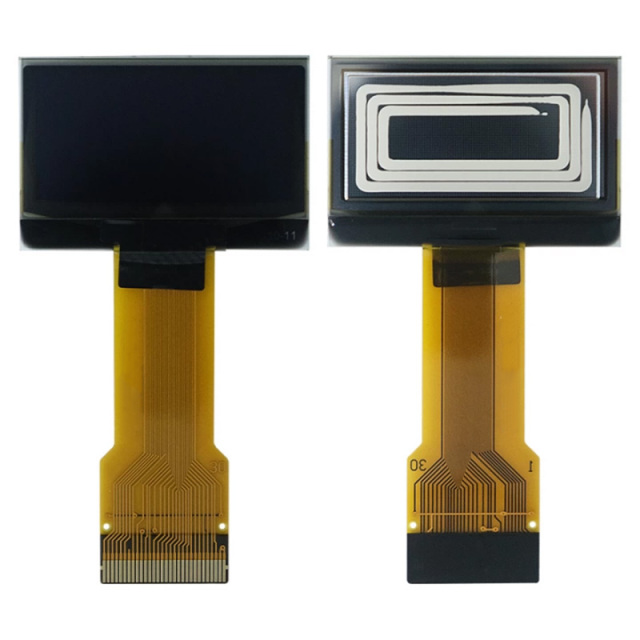

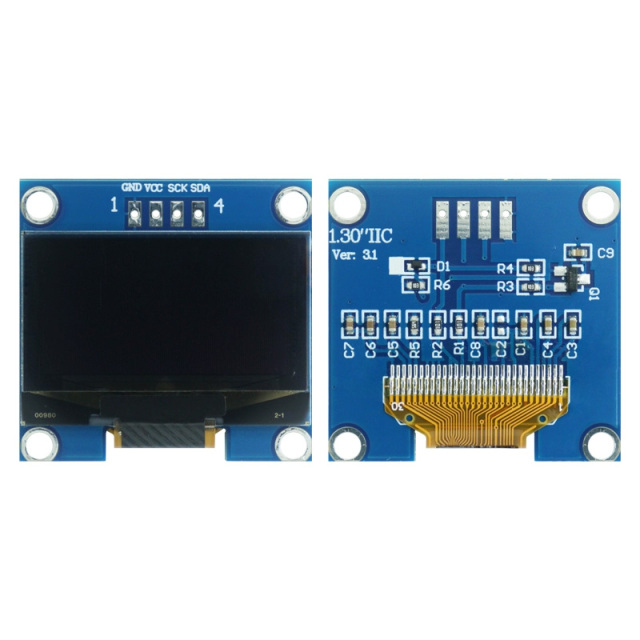

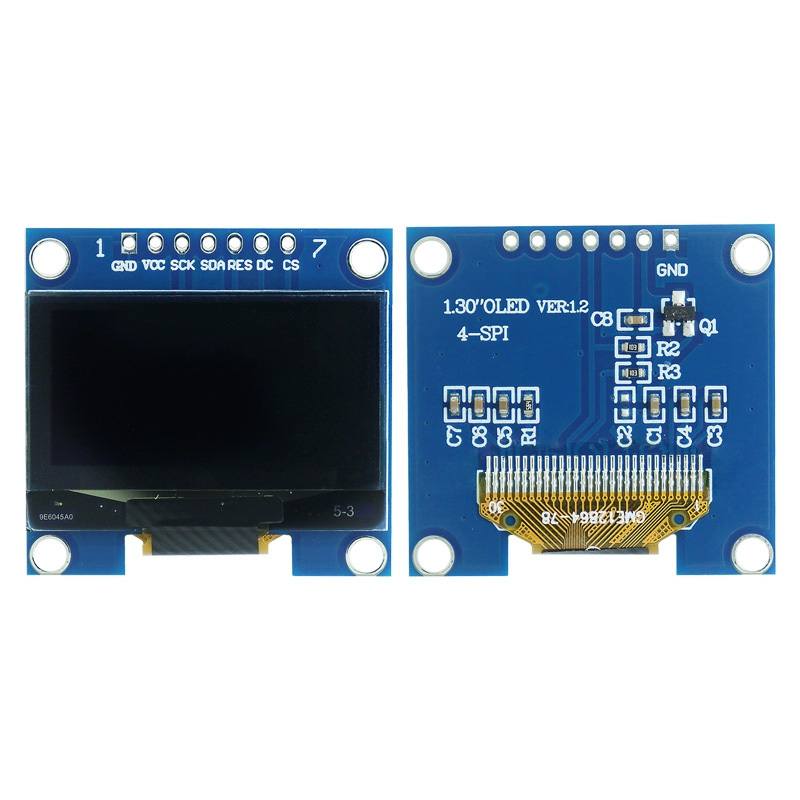

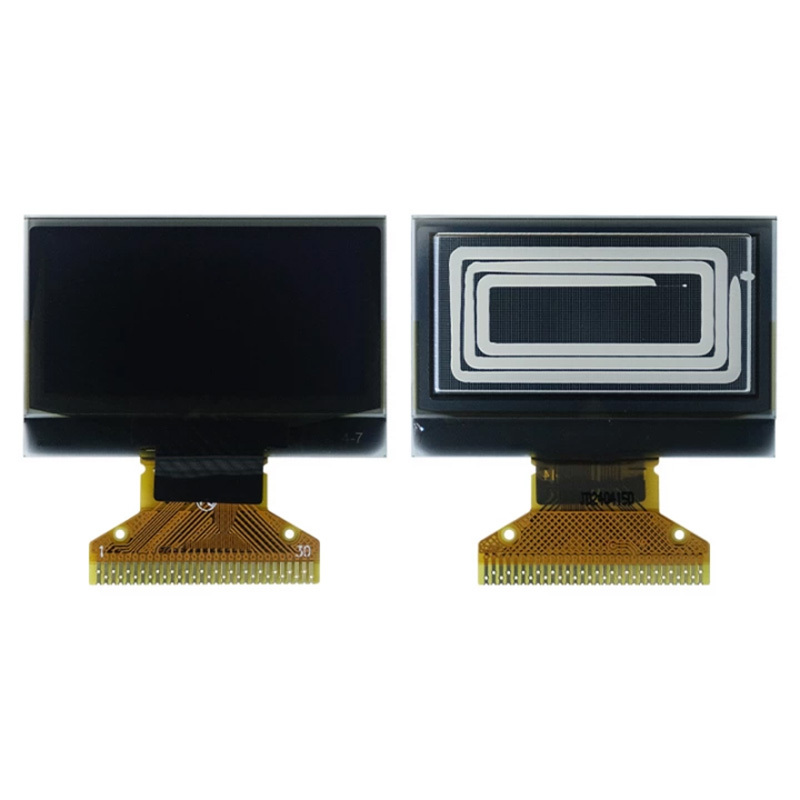

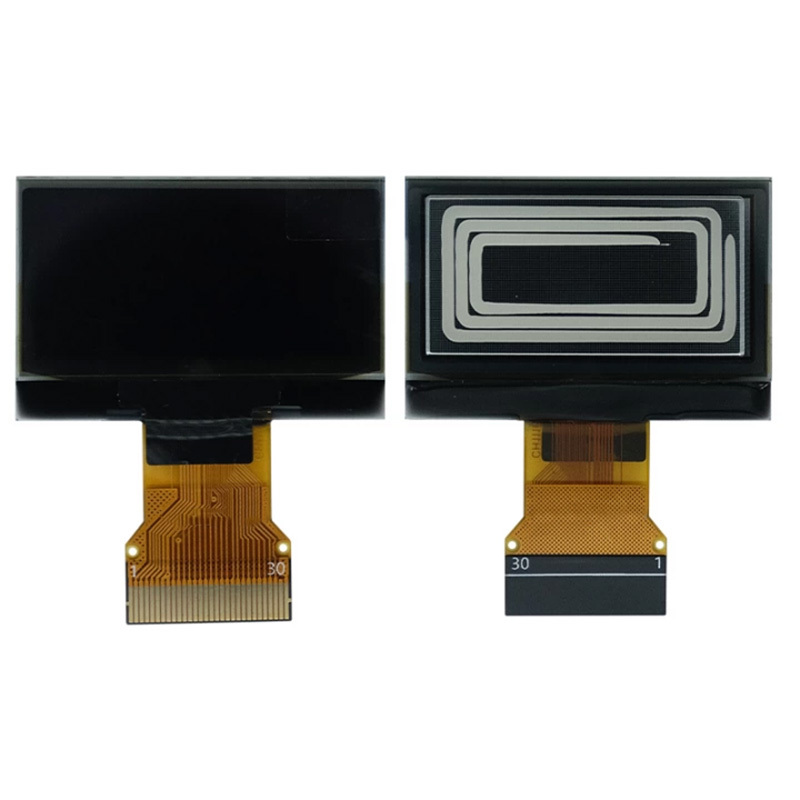

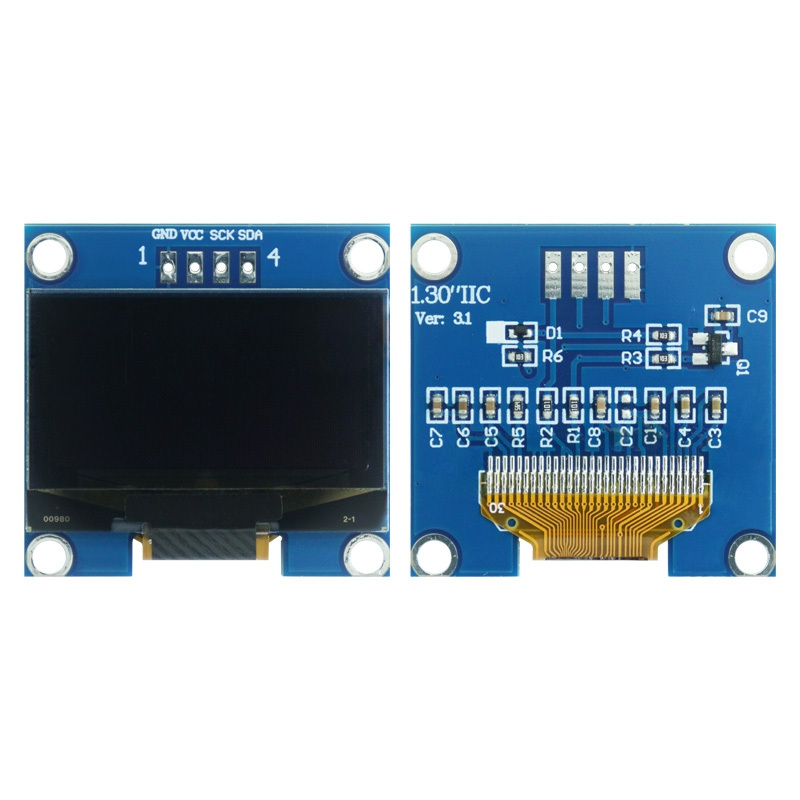

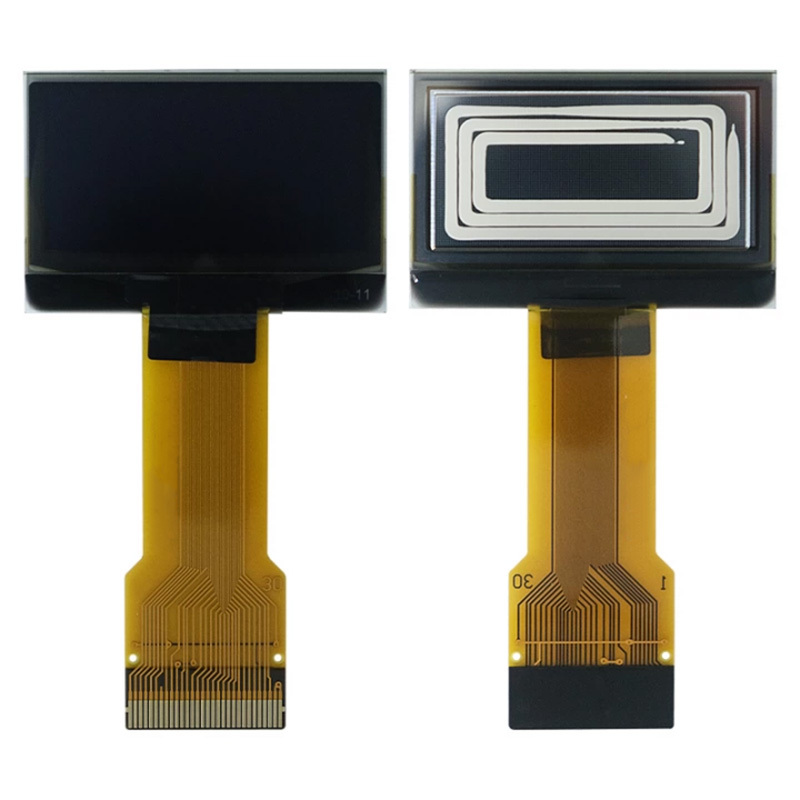

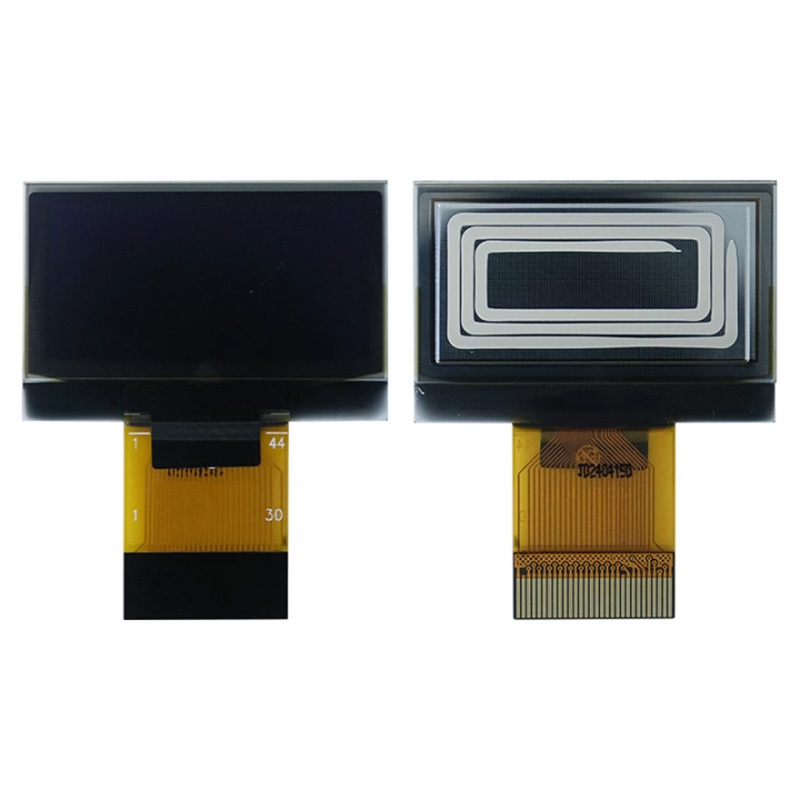

Monochrome OLED Screen 1.3 Inch 128*64 Resolution I2c/Spi Interface Sh1116 OLED Display Optional with Board

Name: Monochrome OLED Screen 1.3 Inch 128*64 Resolution I2c/Spi Interface Sh1116 OLED Display Optional with Board
Brand: reaperlcd
SKU: RP130O16HJ-V01
Availability: InStock
Rating: 5 (1 reviews)

No.RP130O16HJ-V01

High resolution: 128x64 (have the same resolution as 12864, high PPI);Large viewing angle: greater than 160° (a screen with the largest viewing angle in the monitor);Ultra-low power consumption: it's 0.06w in normal condition(far less than TFT display)

GET A QUOTE

Description

Monochrome OLED Screen 1.3 Inch 128*64 Resolution I2c/Spi Interface Sh1116 OLED Display Optional with Board

Model:	RP130O16HJ-V01
Size	1.3 inch
Dots	128x64
Color	White/Blue

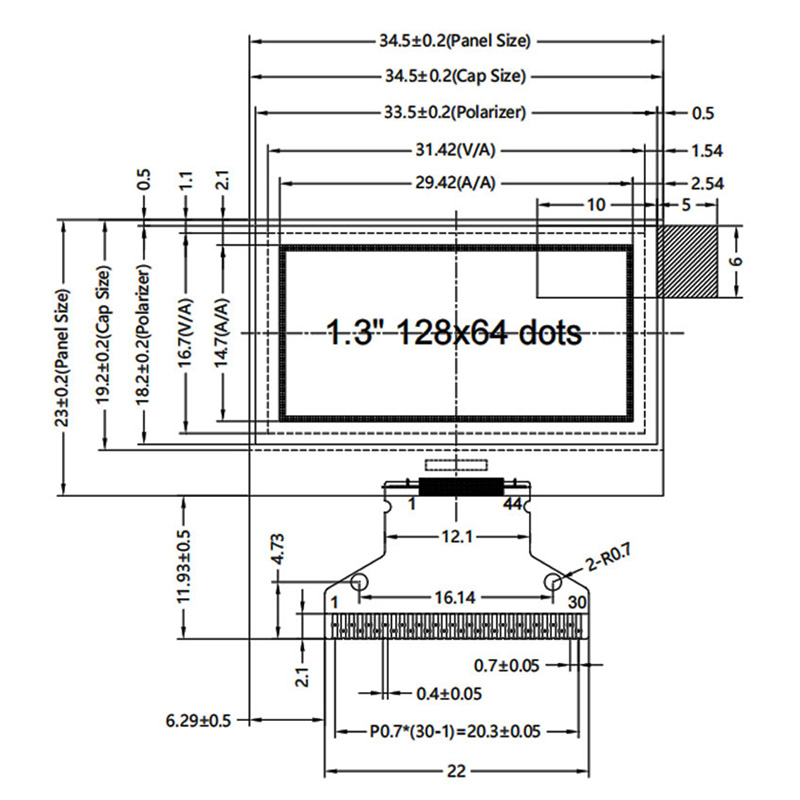

Outline Demision	34.50 x 23.00 x 1.4 mm
Viewing Area	31.42 x 16.70 mm
Active Area	29.42 x 14.70 mm
Drive IC	SSD1306/CH1106
Interface	IIC/SPI
Pin number	4/7/25
Operating Temperature:	-40 ~ +70ºC
Storage Temperature:	-40 ~ +85ºC
