Monochrome OLED Screen 0.96 Inch 64*128 Resolution I2c/Spi Interface White/Yellow/Blue OLED Display

Name: Monochrome OLED Screen 0.96 Inch 64*128 Resolution I2c/Spi Interface White/Yellow/Blue OLED Display
Brand: reaperlcd
SKU: RP096H61S-V02
Availability: InStock
Rating: 5 (1 reviews)

No.RP096H61S-V02

High resolution: 64x128 (have the same resolution as 64128, high PPI);Large viewing angle: greater than 160° (a screen with the largest viewing angle in the monitor);Ultra-low power consumption: it's 0.06w in normal condition(far less than TFT display)

GET A QUOTE

Description

Monochrome OLED Screen 0.96 Inch 64*128 Resolution I2c/Spi Interface White/Yellow/Blue OLED Display

Model:	RP096H61S-V02
Size	0.96 inch
Dots	64x128
Color	White

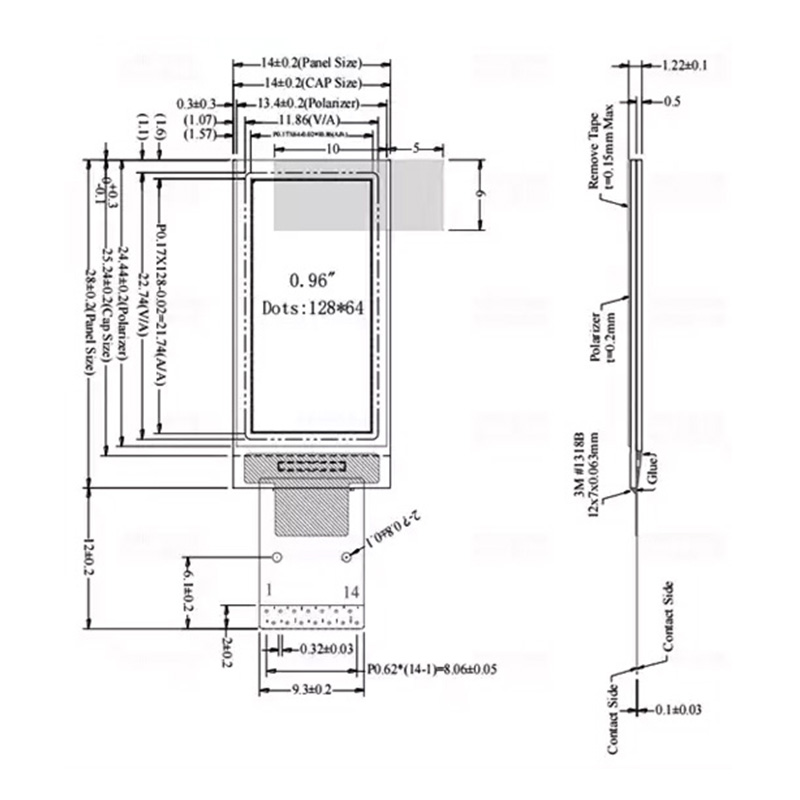

Outline Demision	14.00 x28.00 x 1.22 mm
Viewing Area	11.86 x 22.74 mm
Active Area	10.86 x 21.74 mm
Drive IC	SSD1312
Interface	IIC/SPI
Pin number	4/7/14
Operating Temperature:	-40 ~ +70ºC
Storage Temperature:	-40 ~ +85ºC
