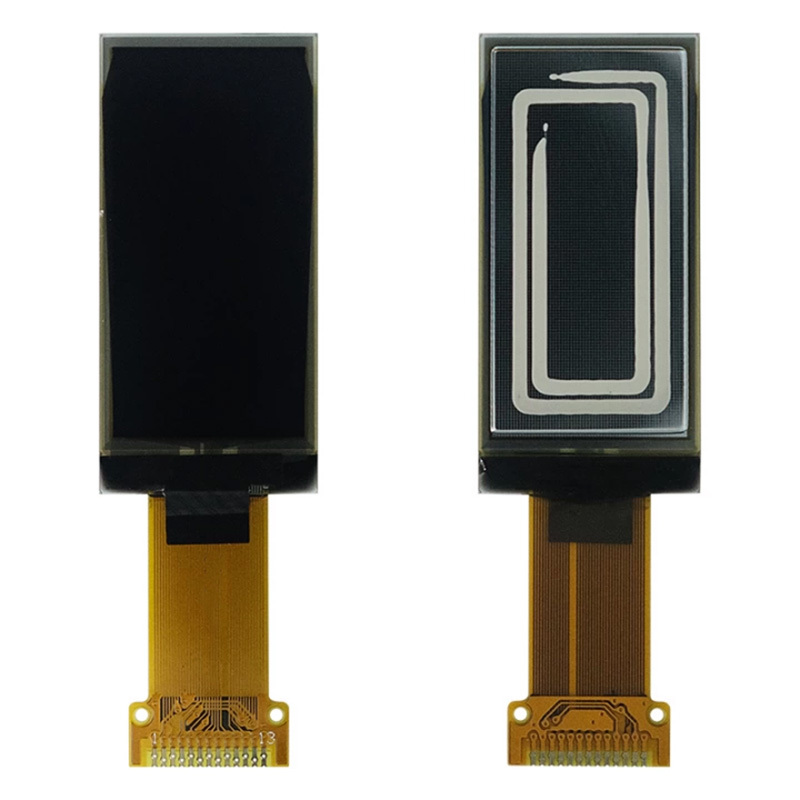

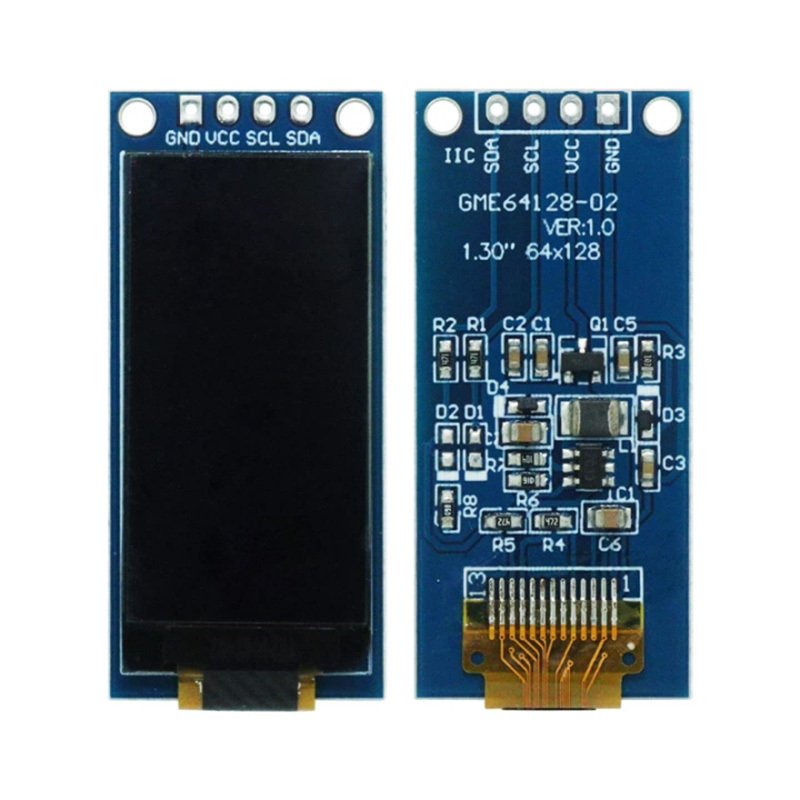

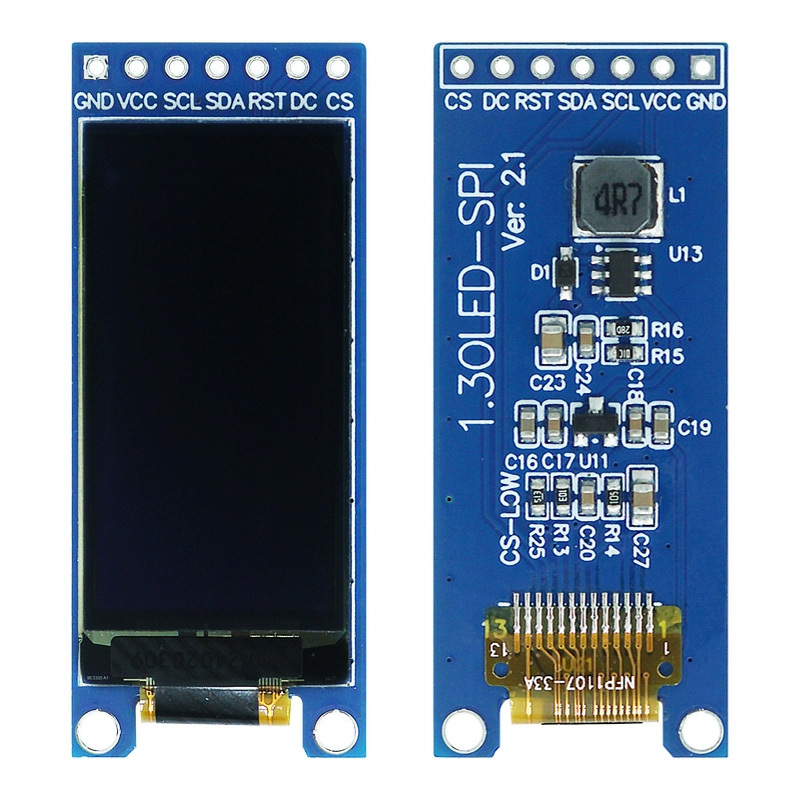

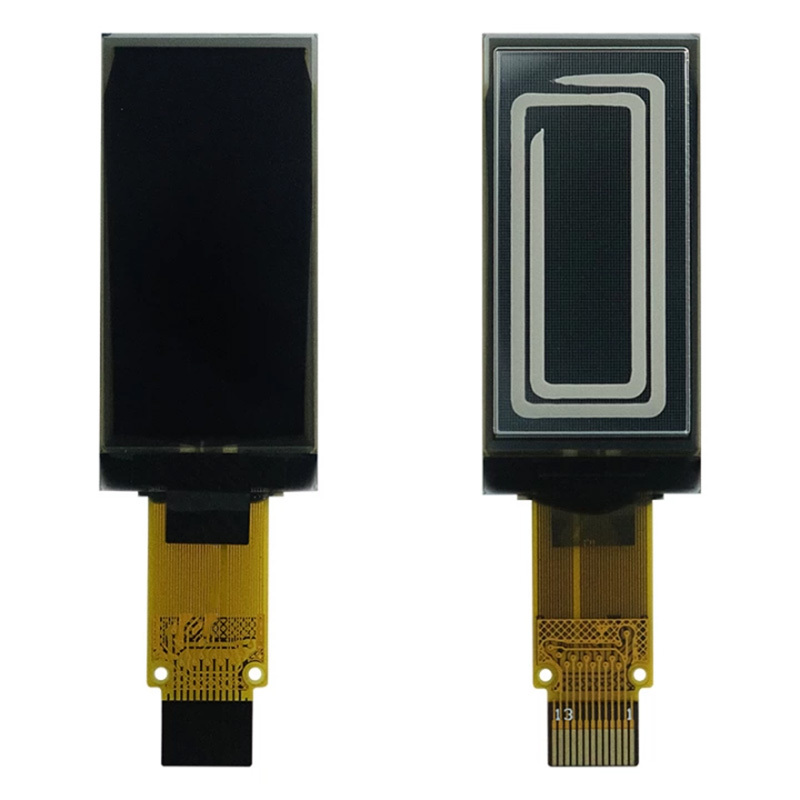

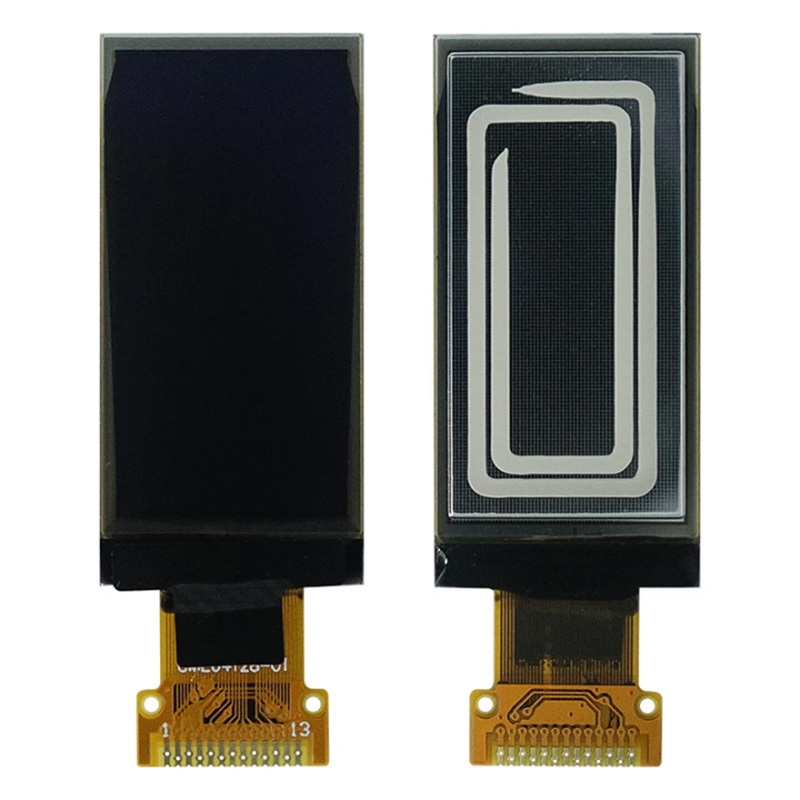

Monochrome OLED Display 1.3 Inch 64*128 Resolution I2c/Spi Interface SH1107/SSD1312 OLED Module

Name: Monochrome OLED Display 1.3 Inch 64*128 Resolution I2c/Spi Interface SH1107/SSD1312 OLED Module
Brand: reaperlcd
SKU: RP130O61S-V02
Availability: InStock
Rating: 5 (1 reviews)

No.RP130O61S-V02

High resolution: 64x128 (have the same resolution as 64128, high PPI);Large viewing angle: greater than 160° (a screen with the largest viewing angle in the monitor);Ultra-low power consumption: it's 0.06w in normal condition(far less than TFT display)

GET A QUOTE

Description

Monochrome OLED Display 1.3 Inch 64*128 Resolution I2c/Spi Interface Sh1107 OLED Module

Model:	RP130O61S-V02
Size	1.3 inch
Dots	64x128
Color	White

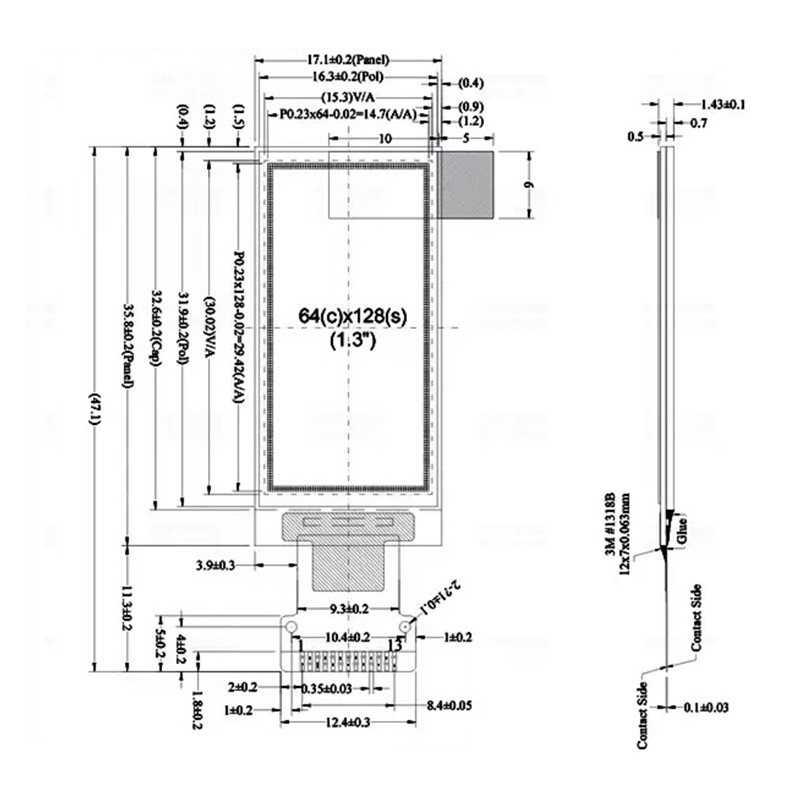

Outline Demision	17.10 x 35.80 x 1.43 mm
Viewing Area	15.30 x 30.02 mm
Active Area	14.70 x 29.42 mm
Drive IC	SSD1312/SH1107
Interface	IIC/SPI
Pin number	4/7/13
Operating Temperature:	-40 ~ +70ºC
Storage Temperature:	-40 ~ +85ºC
