Monochrome OLED Display 0.77 Inch 128*64 Resolution Spi Interface Wide Temperature Range OLED Screen

Name: Monochrome OLED Display 0.77 Inch 128*64 Resolution Spi Interface Wide Temperature Range OLED Screen
Brand: reaperlcd
SKU: RP077HJ61S-V02
Availability: InStock
Rating: 5 (1 reviews)

No.RP077HJ61S-V02

High resolution: 128x64 (have the same resolution as 12864, high PPI);Large viewing angle: greater than 160° (a screen with the largest viewing angle in the monitor);Ultra-low power consumption: it's 0.06w in normal condition(far less than TFT display)

GET A QUOTE

Description

Monochrome OLED Display 0.77 Inch 128*64 Resolution Spi Interface Wide Temperature Range OLED Screen

Model:	RP077HJ61S-V02
Size	0.77 inch
Dots	128x64
Color	White

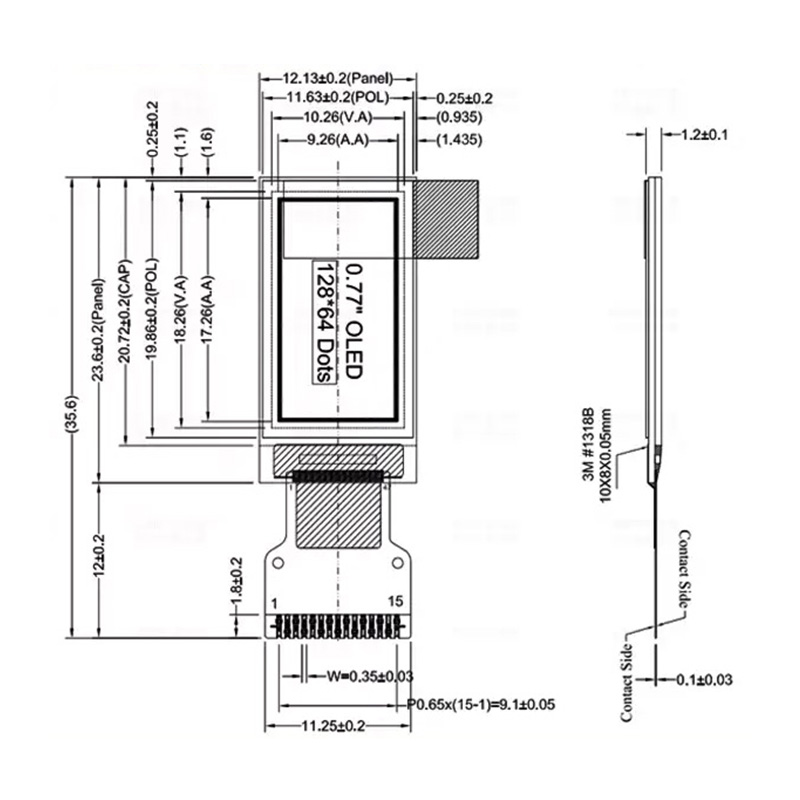

Outline Demision	12.13 x23.60 x 1.2 mm
Viewing Area	10.26 x 18.26 mm
Active Area	9.26 x 17.26 mm
Drive IC	SSD1312
Interface	IIC/SPI
Pin number	4/7/13/15
Operating Temperature:	-40 ~ +70ºC
Storage Temperature:	-40 ~ +85ºC
