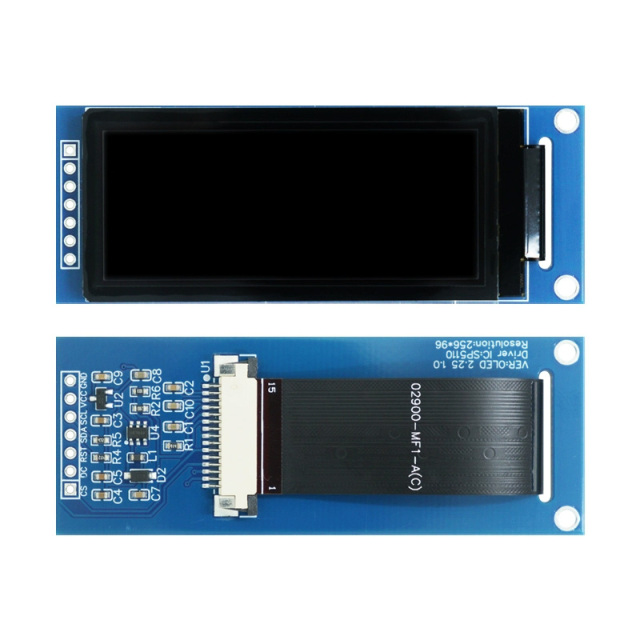

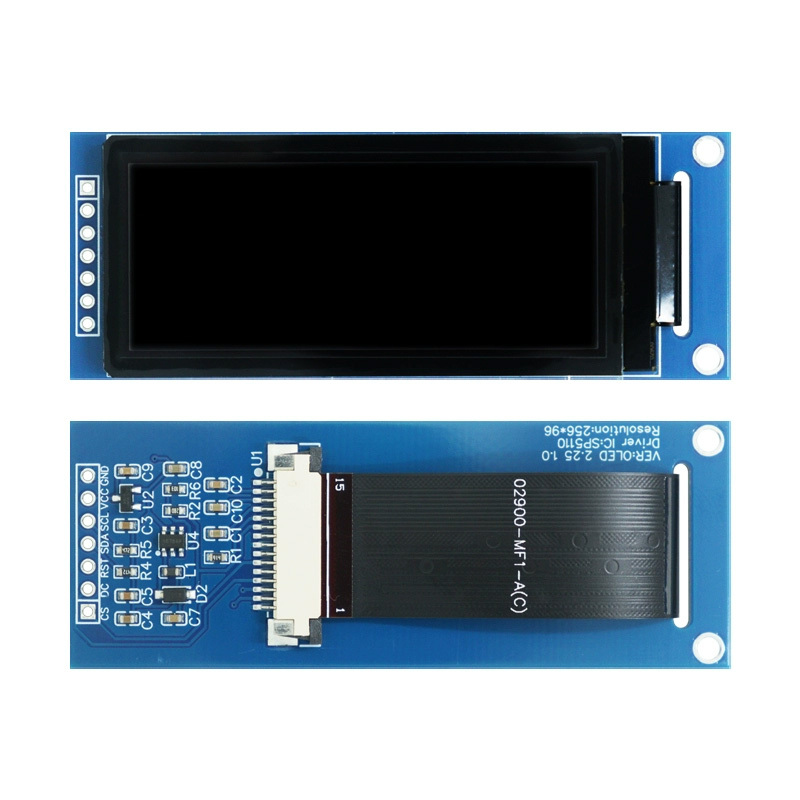

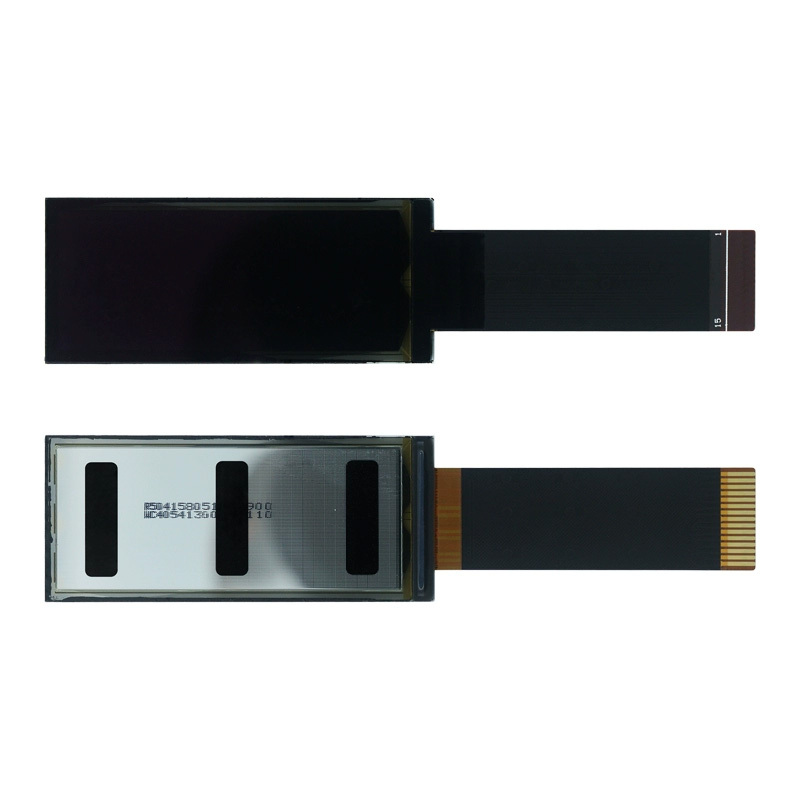

Monochrome 2.25 inch OLED screen 256*96 IIC/SPI interface SP5110 OLED display

Name: Monochrome 2.25 inch OLED screen 256*96 IIC/SPI interface SP5110 OLED display
Brand: reaperlcd
SKU: RP225O13VB-V01
Availability: InStock
Rating: 5 (1 reviews)

No.RP225O13VB-V01

High resolution: 256x96 (have the same resolution as 25696, high PPI);Large viewing angle: greater than 160° (a screen with the largest viewing angle in the monitor);Ultra-low power consumption: it's 0.06w in normal condition(far less than TFT display)

GET A QUOTE

Description

Monochrome 2.25 inch OLED screen 256*96 IIC/SPI interface SP5110 OLED display

Model:	RP242O13VB-V01
Size	2.25 inch
Dots	256x96
Color	White

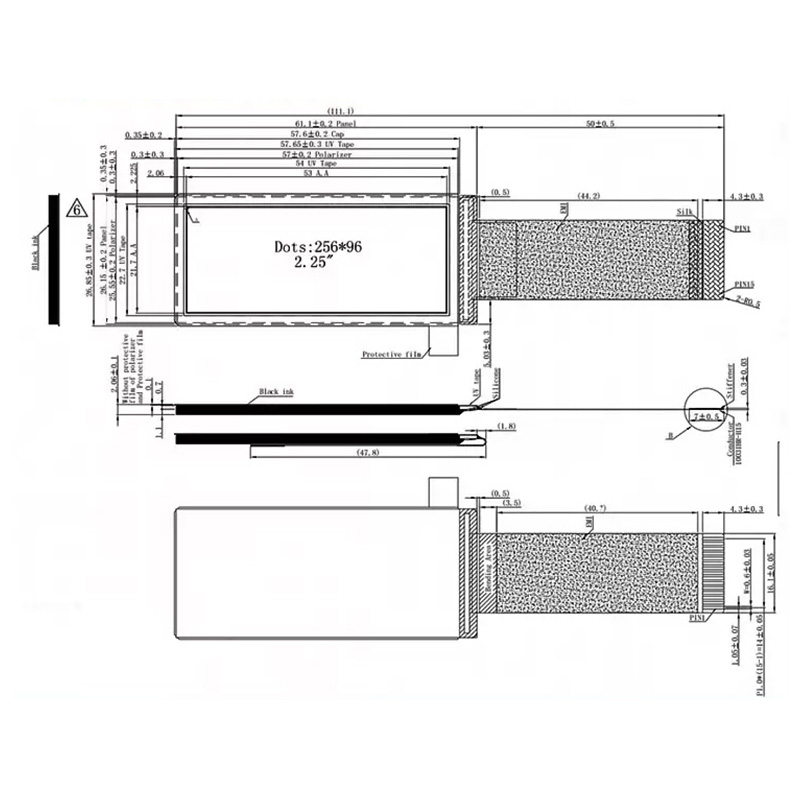

Outline Demision	61.1 x 26.15 x 1.8 mm
Viewing Area	54.00 x 22.70 mm
Active Area	53.00 x 21.70 mm
Drive IC	SP5110
Interface	IIC/SPI
Pin number	7/15
Operating Temperature:	-40 ~ +70ºC
Storage Temperature:	-40 ~ +85ºC
