Industrial 2.42 Inch 128*64 OLED Screen Iic Interface SSD1309 White/Blue/Yellow 2.42inch OLED Display Module

Name: Industrial 2.42 Inch 128*64 OLED Screen Iic Interface SSD1309 White/Blue/Yellow 2.42inch OLED Display Module
Brand: reaperlcd
SKU: RP242O13VB-V01
Availability: InStock
Rating: 5 (1 reviews)

No.RP242O13VB-V01

High resolution: 128x64 (have the same resolution as 12864, high PPI);Large viewing angle: greater than 160° (a screen with the largest viewing angle in the monitor);Ultra-low power consumption: it's 0.06w in normal condition(far less than TFT display)

GET A QUOTE

Description

Industrial 2.42 Inch 128*64 OLED Screen Iic Interface SSD1309 White/Blue/Yellow 2.42inch OLED Display Module

Model:	RP242O13VB-V01
Size	2.42 inch
Dots	128x64
Color	White/Blue/Yellow

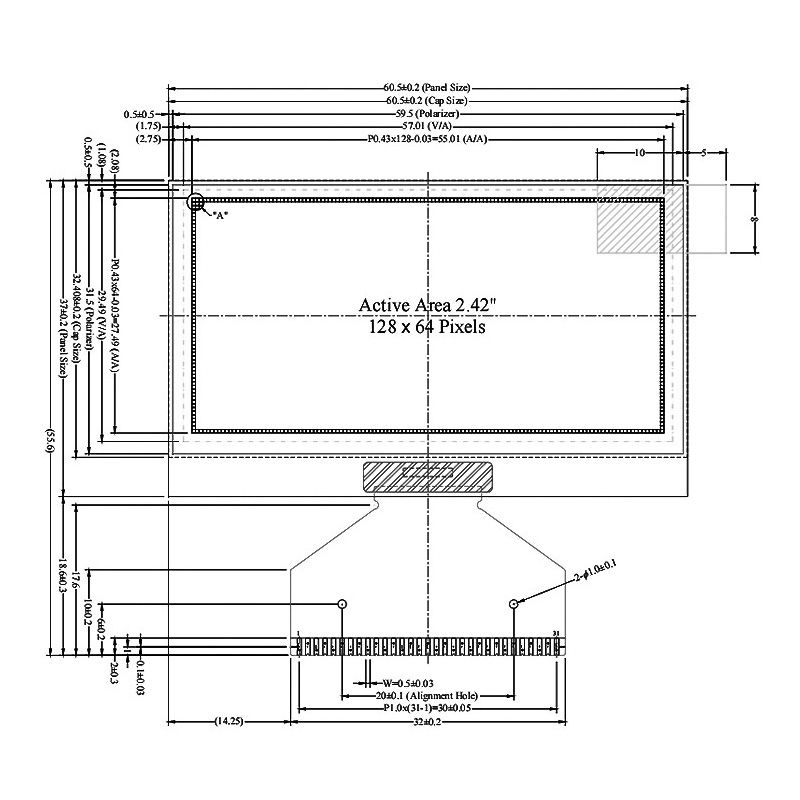

Outline Demision	60.5 x 37.0 x 2.0 mm
Viewing Area	57.01 x 29.49 mm
Active Area	55.01 x 27.49 mm
Drive IC	SSD1309
Interface	IIC/SPI
Pin number	4/7/31
Operating Temperature:	-40 ~ +70ºC
Storage Temperature:	-40 ~ +85ºC
