Factory Monochrome OLED Screen 0.78 Inch 80*128 Resolution I2c/Spi Interface OLED Display

Name: Factory Monochrome OLED Screen 0.78 Inch 80*128 Resolution I2c/Spi Interface OLED Display
Brand: reaperlcd
SKU: RP078HJ81S-V01
Availability: InStock
Rating: 5 (1 reviews)

No.RP078HJ81S-V01

High resolution: 80x128 (have the same resolution as 80128, high PPI);Large viewing angle: greater than 160° (a screen with the largest viewing angle in the monitor);Ultra-low power consumption: it's 0.06w in normal condition(far less than TFT display)

GET A QUOTE

Description

Factory Monochrome OLED Screen 0.78 Inch 80*128 Resolution I2c/Spi Interface OLED Display

Model:	RP078HJ81S-V01
Size	0.78 inch
Dots	80x128
Color	White

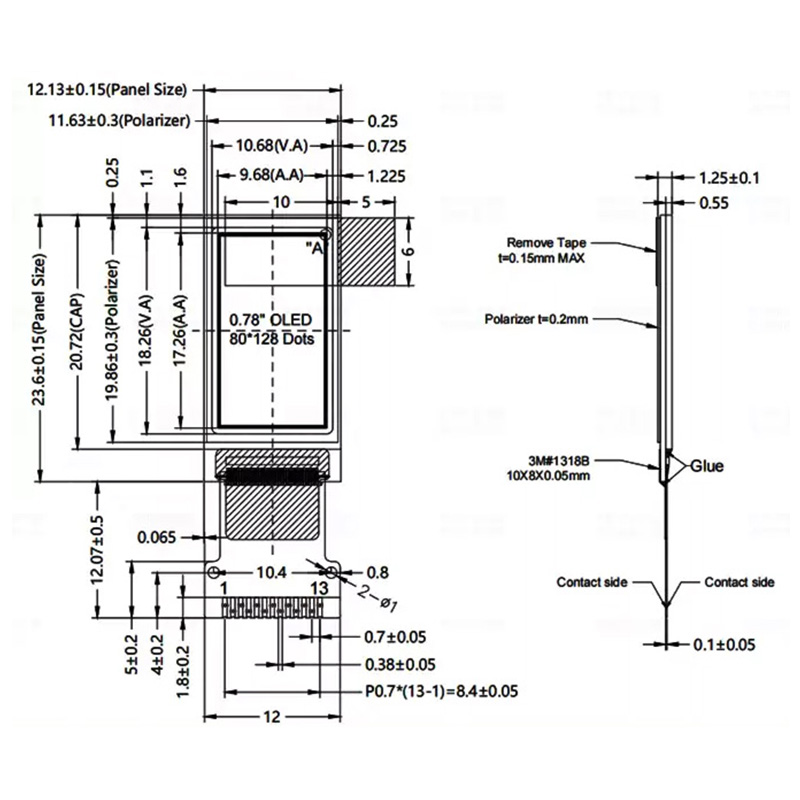

Outline Demision	12.13 x23.60 x 1.25 mm
Viewing Area	10.68 x 18.26 mm
Active Area	9.68 x 17.26 mm
Drive IC	SH1107
Interface	IIC/SPI
Pin number	4/7/13
Operating Temperature:	-40 ~ +70ºC
Storage Temperature:	-40 ~ +85ºC
