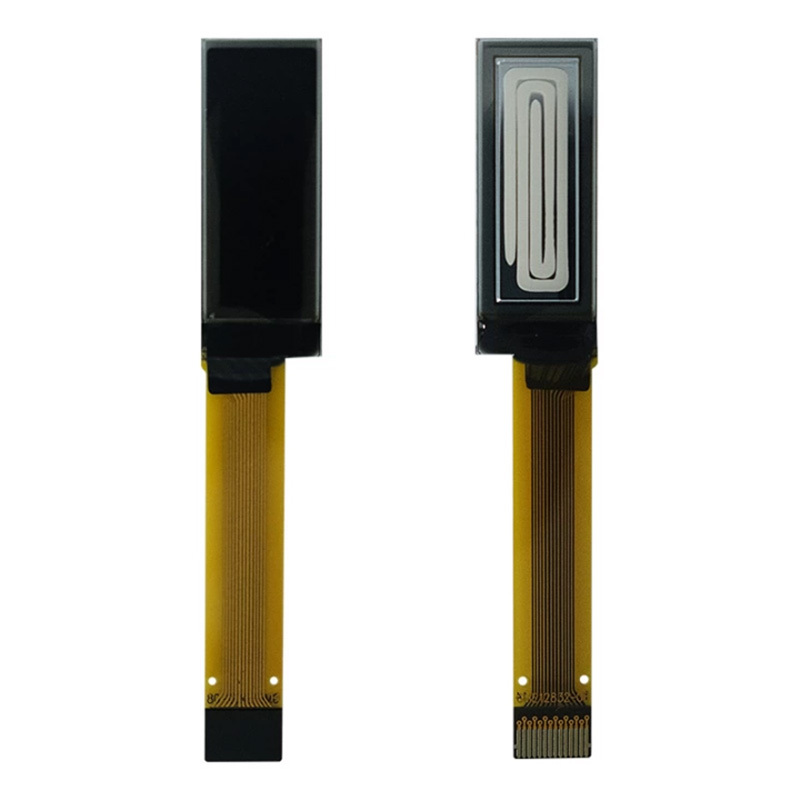

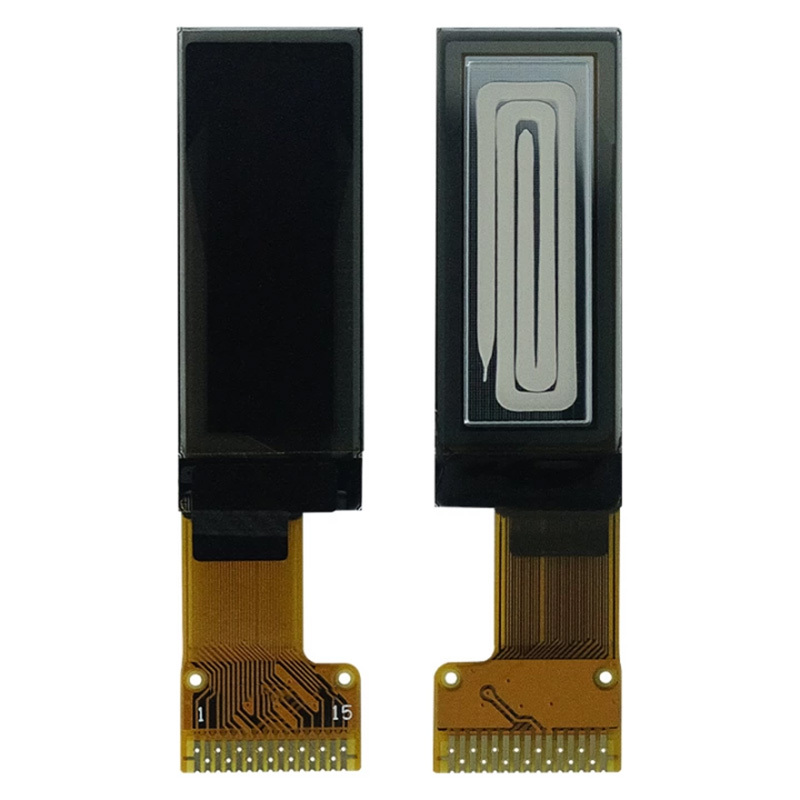

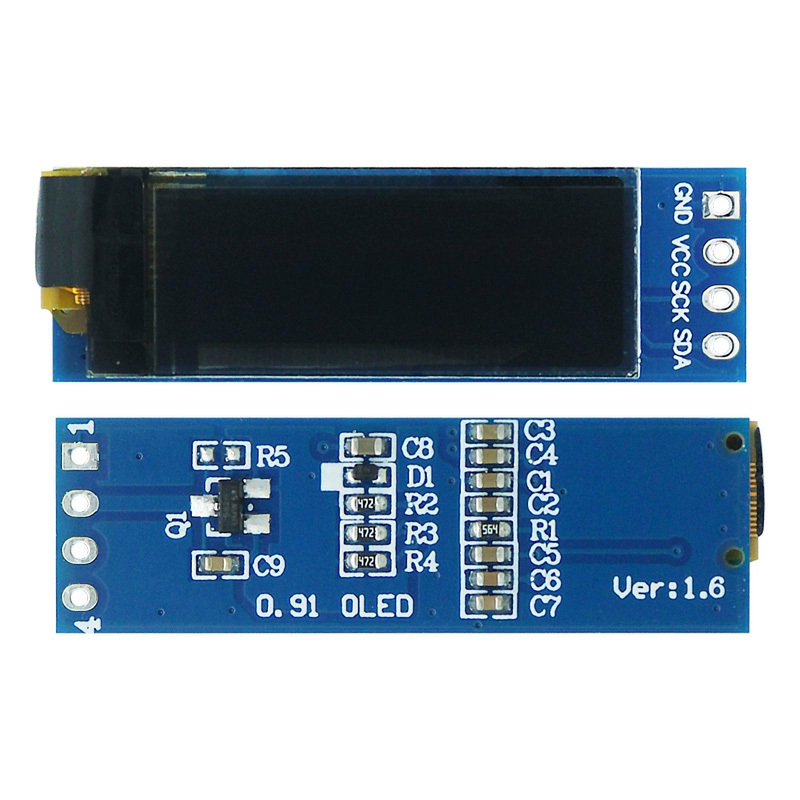

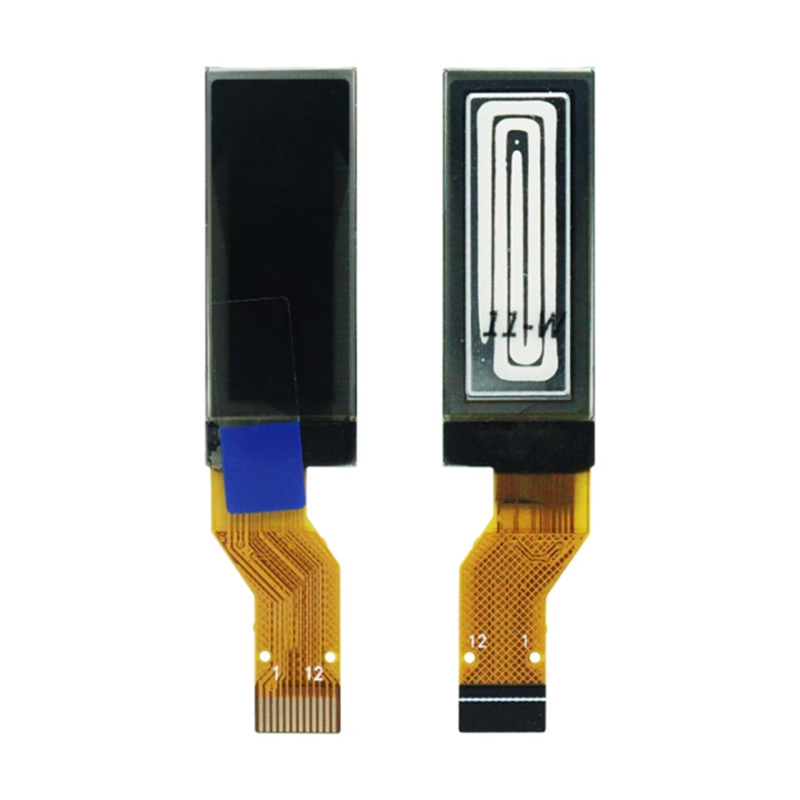

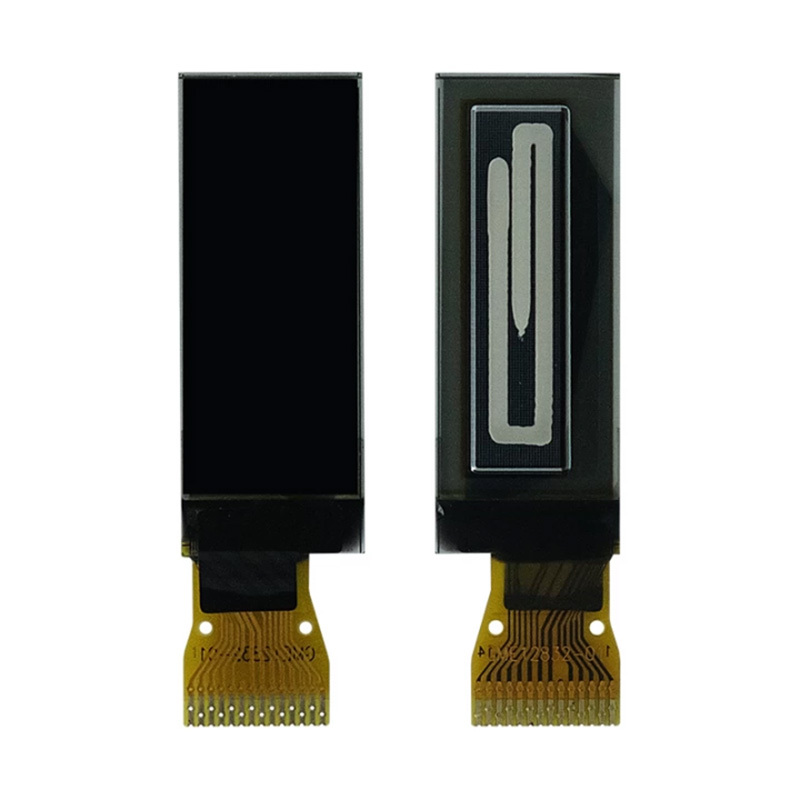

Bar Monochrome OLED Screen 0.91 Inch 128*32 Resolution I2c/Spi Interface OLED Display

Name: Bar Monochrome OLED Screen 0.91 Inch 128*32 Resolution I2c/Spi Interface OLED Display
Brand: reaperlcd
SKU: RP091HJ13C-V01
Availability: InStock
Rating: 5 (1 reviews)

No.RP091HJ13C-V01

High resolution: 128x32 (have the same resolution as 12832, high PPI);Large viewing angle: greater than 160° (a screen with the largest viewing angle in the monitor);Ultra-low power consumption: it's 0.06w in normal condition(far less than TFT display)

GET A QUOTE

Description

Bar Monochrome OLED Screen 0.91 Inch 128*32 Resolution I2c/Spi Interface OLED Display

Model:	RP091HJ13C-V01
Size	0.91 inch
Dots	128x32
Color	White/Blue/Yellow

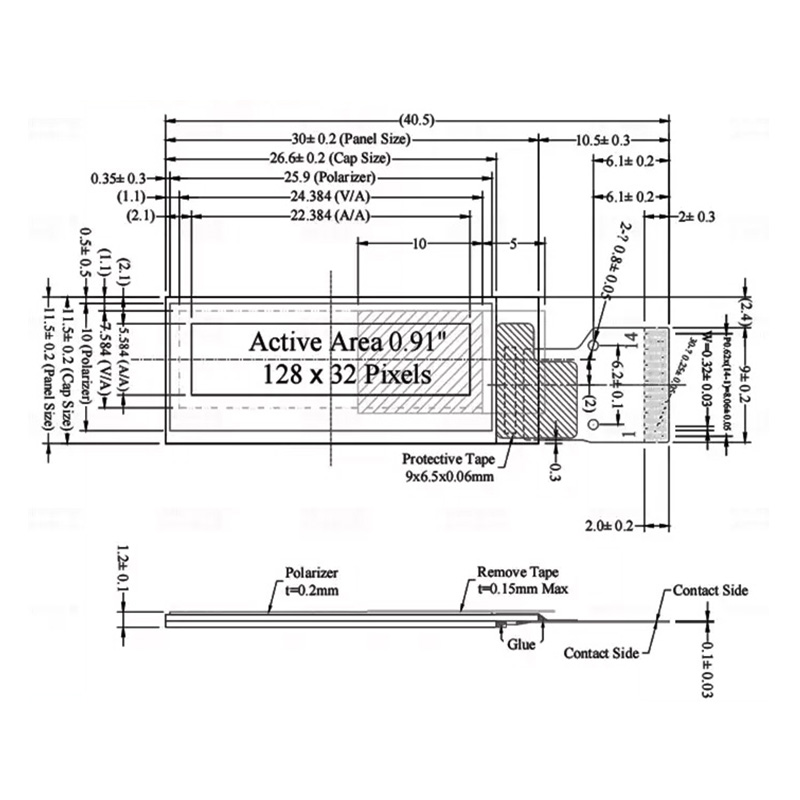

Outline Demision	30.00 x11.50 x 1.2 mm
Viewing Area	24.384 x 7.584 mm
Active Area	22.384 x 5.584 mm
Drive IC	SSD1306
Interface	IIC/SPI
Pin number	4/7/14
Operating Temperature:	-40 ~ +70ºC
Storage Temperature:	-40 ~ +85ºC
