| Model: | RP312O13VB-22 |
| Size | 3.12 inch |
| Dots | 256x64 |

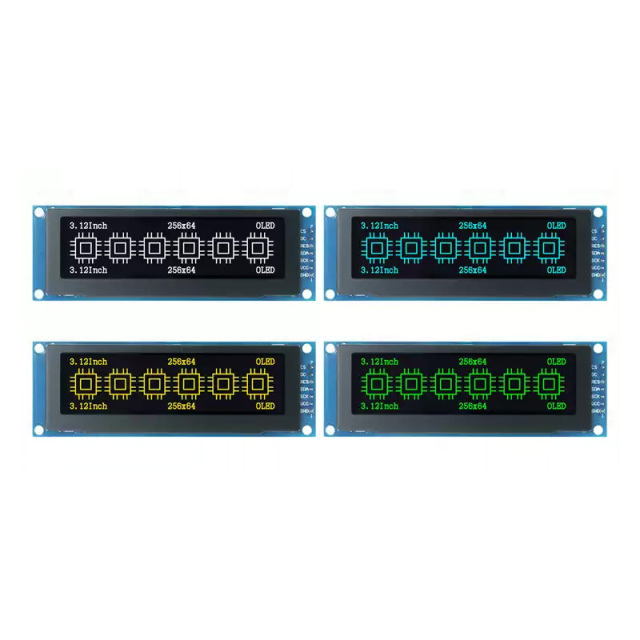

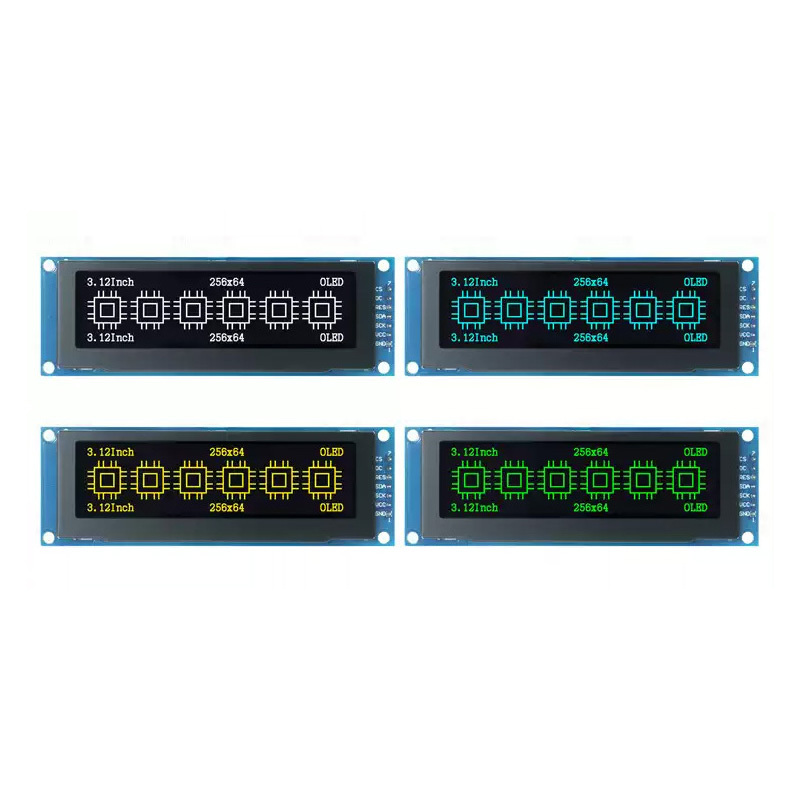

| Color | White/Blue/Yellow/Green |

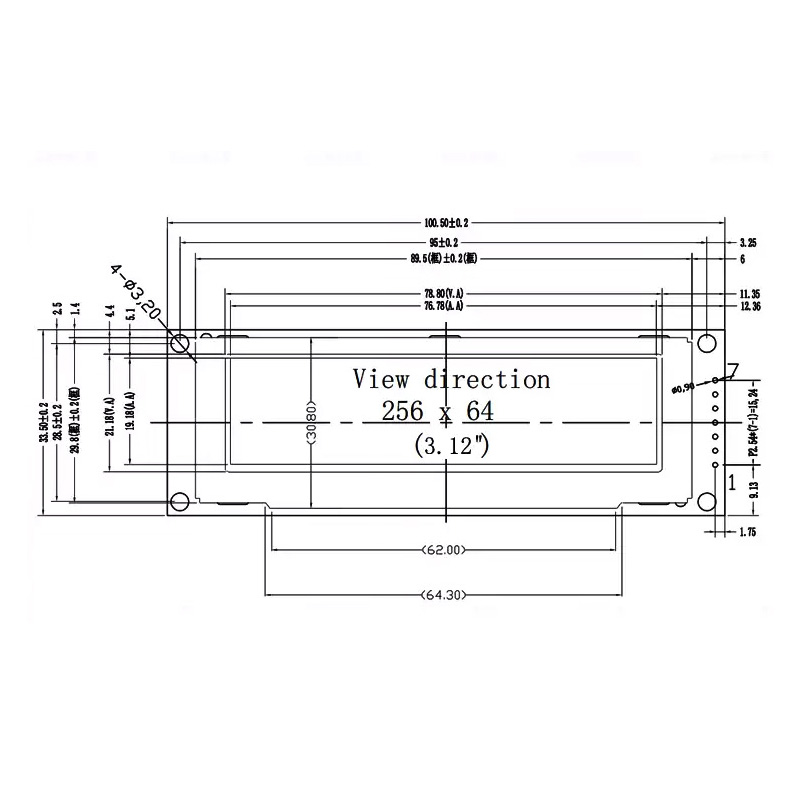

| Outline Demision | 100.5 x 33.5 x 6.3 mm |
| Viewing Area | 78.80 x 21.18 mm |
| Active Area | 76.78 x 19.18 mm |
| Drive IC | SSD1322 |

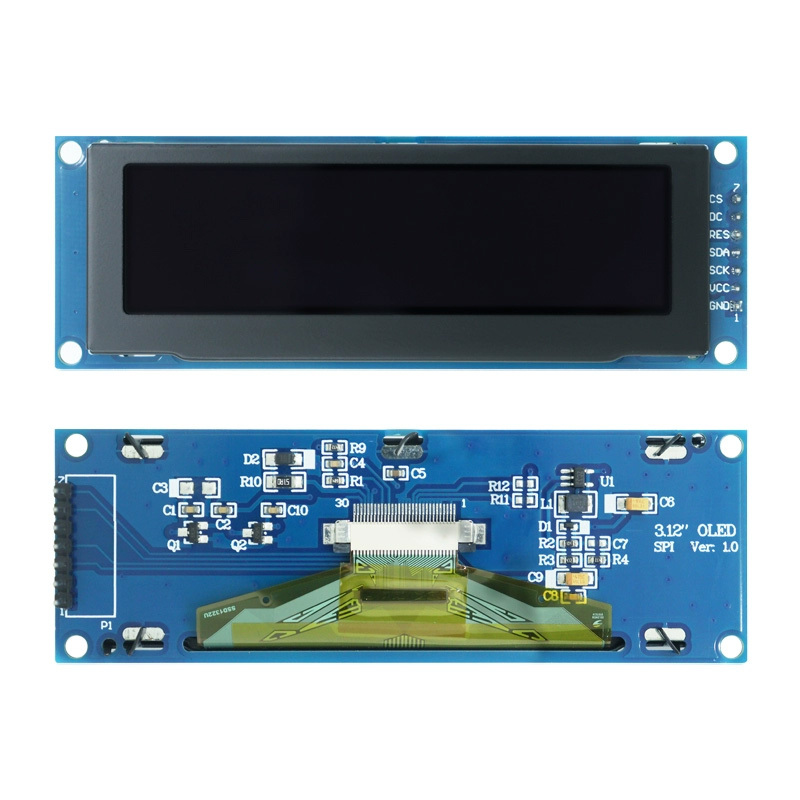

| Interface | SPI，7PIN |
| Pin number | 7 |
| Operating Temperature: | -40 ~ +70ºC |
| Storage Temperature: | -40 ~ +85ºC |
