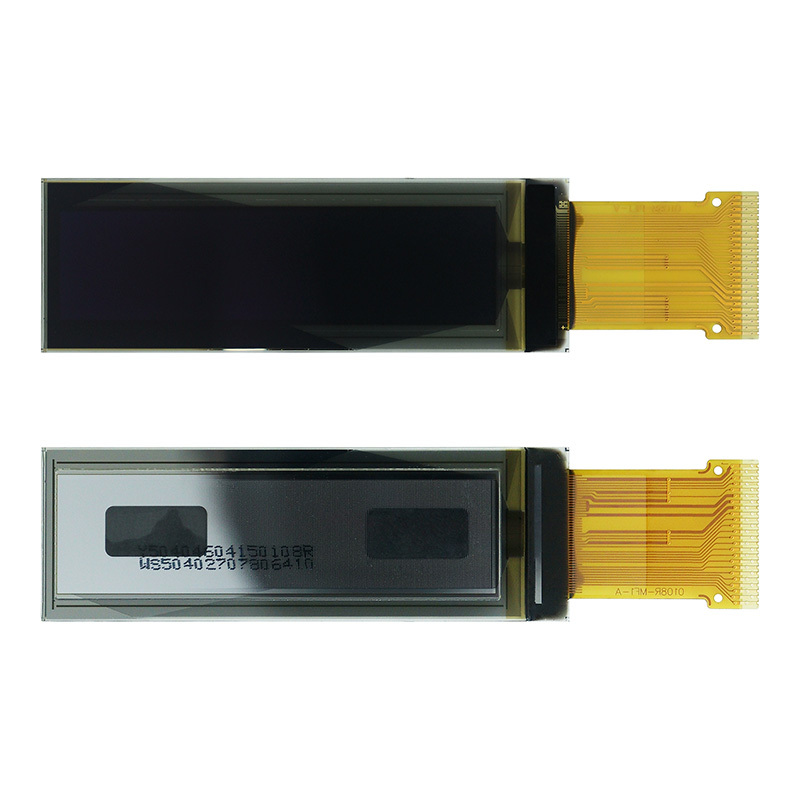

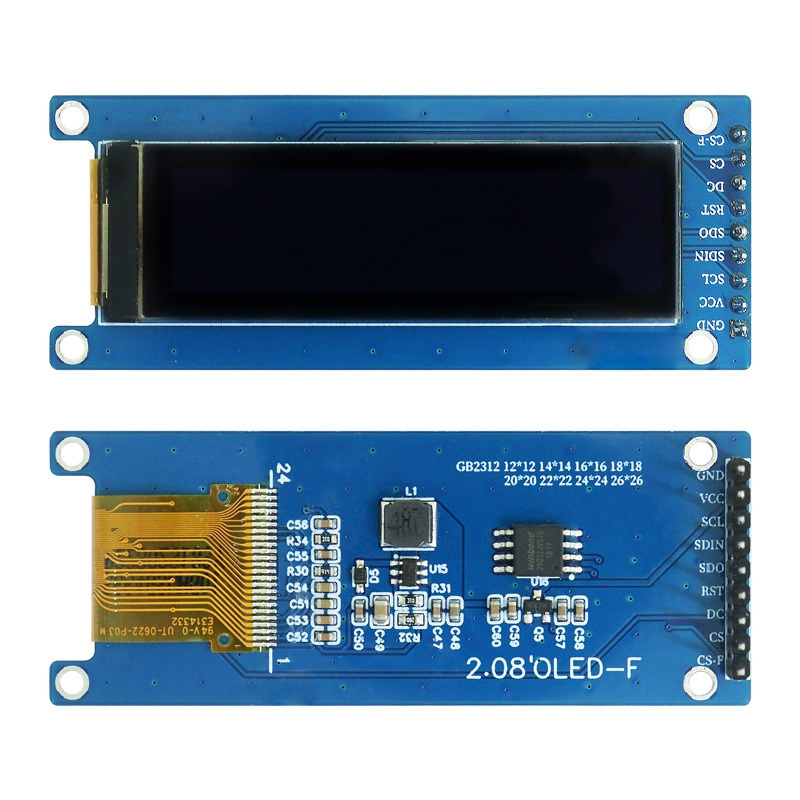

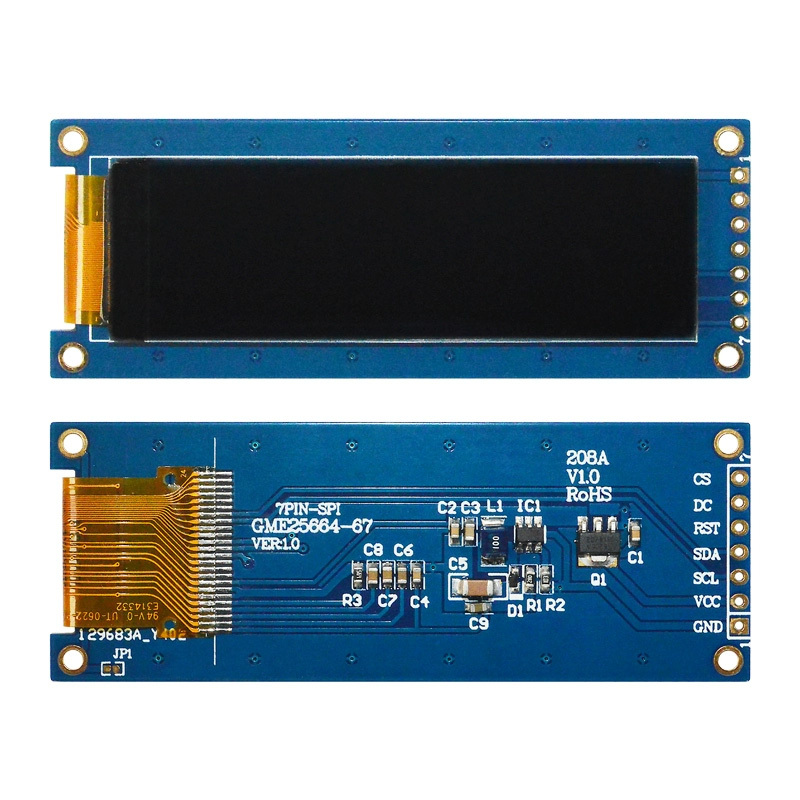

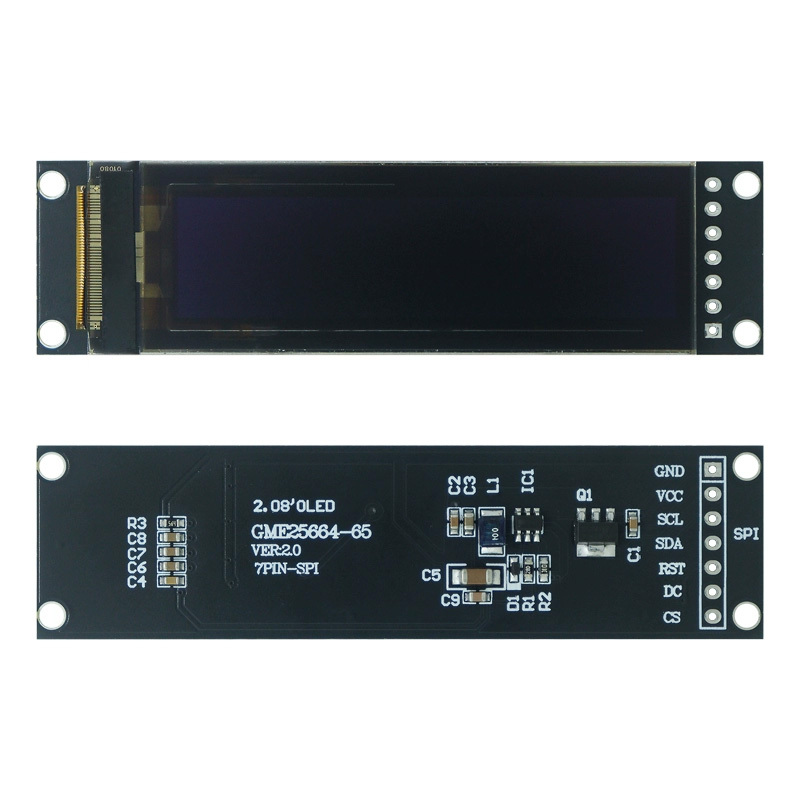

2.08 inch Monochrome Graphic OLED Screen 256*64 IIC/SPI Interface SH1122 OLED Display

Name: 2.08 inch Monochrome Graphic OLED Screen 256*64 IIC/SPI Interface SH1122 OLED Display
Brand: reaperlcd
SKU: RP208O56IS-V1
Availability: InStock
Rating: 5 (1 reviews)

No.RP208O56IS-V1

High resolution: 256x64 (have the same resolution as 25664, high PPI);Large viewing angle: greater than 160° (a screen with the largest viewing angle in the monitor);Ultra-low power consumption: it's 0.06w in normal condition(far less than TFT display)

GET A QUOTE

Description

2.08 inch Monochrome Graphic OLED Screen 256*64 IIC/SPI Interface SH1122 OLED Display

Model:	RP208O56IS-V1
Size	2.08 inch
Dots	256x64
Color	White/Blue

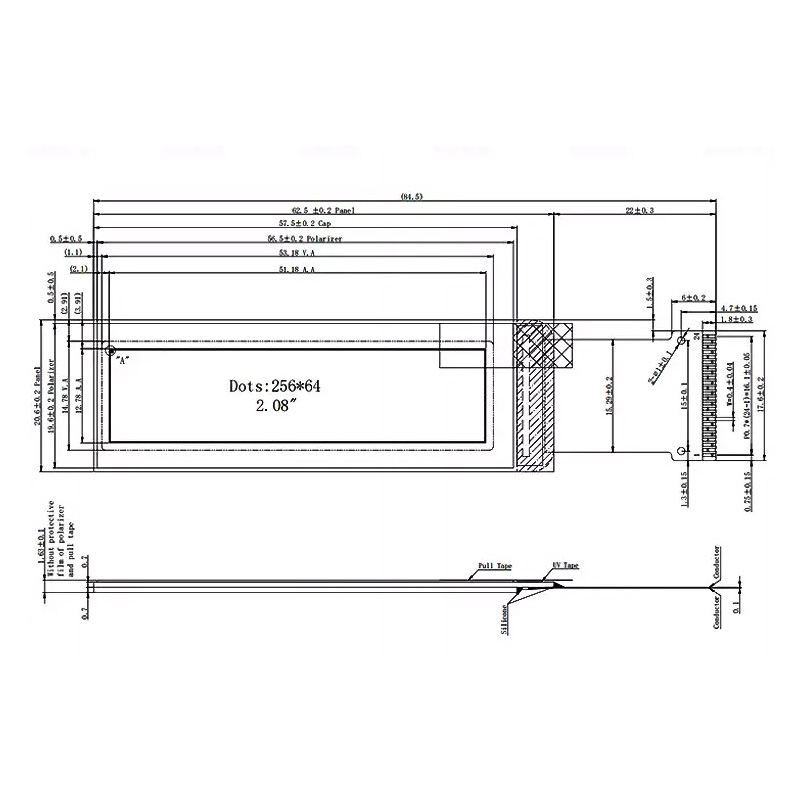

Outline Demision	62.5 x 20.60 x 1.63 mm
Viewing Area	53.18 x 14.78 mm
Active Area	51.18 x 12.78 mm
Drive IC	SH1122
Interface	IIC/SPI
Pin number	7/9/24
Operating Temperature:	-40 ~ +70ºC
Storage Temperature:	-40 ~ +85ºC
