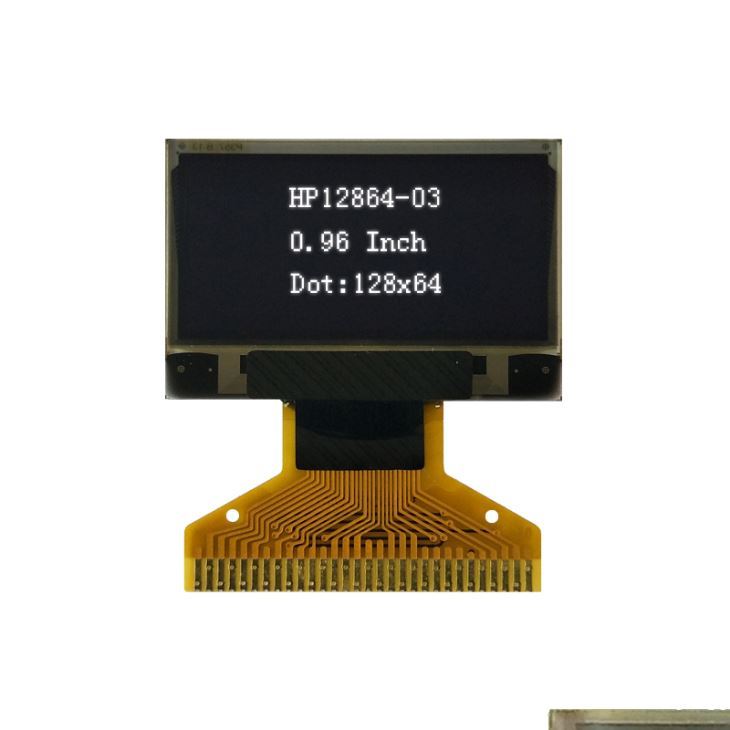

0.96inch OLED Screen 128X64 OLED Display Module

Model: HP12864-03-KSWG30P096-A
Size: 0.96inch
Module size: 26.7 x 19.26 x 1.41 mm
Active area: 21.744 x 10.864 mm
Description
0.96inch OLED Screen 128X64 OLED Display Module
Model: HP12864-03-KSWG30P096-A
Size 0.96 inch
Dots 128x64
Color White
Outline Demision 26.7 x 19.26 x 1.41 mm
Viewing Area 23.74 x 12.864 mm
Active Area 21.744 x 10.864 mm
Drive IC SSD1306BZ
Interface 6800/8080 interface/I2C/ 4-wire SPI
Pin number 30
Operating Temperature: -40 ~ +70ºC
Storage Temperature: -40 ~ +85ºC
