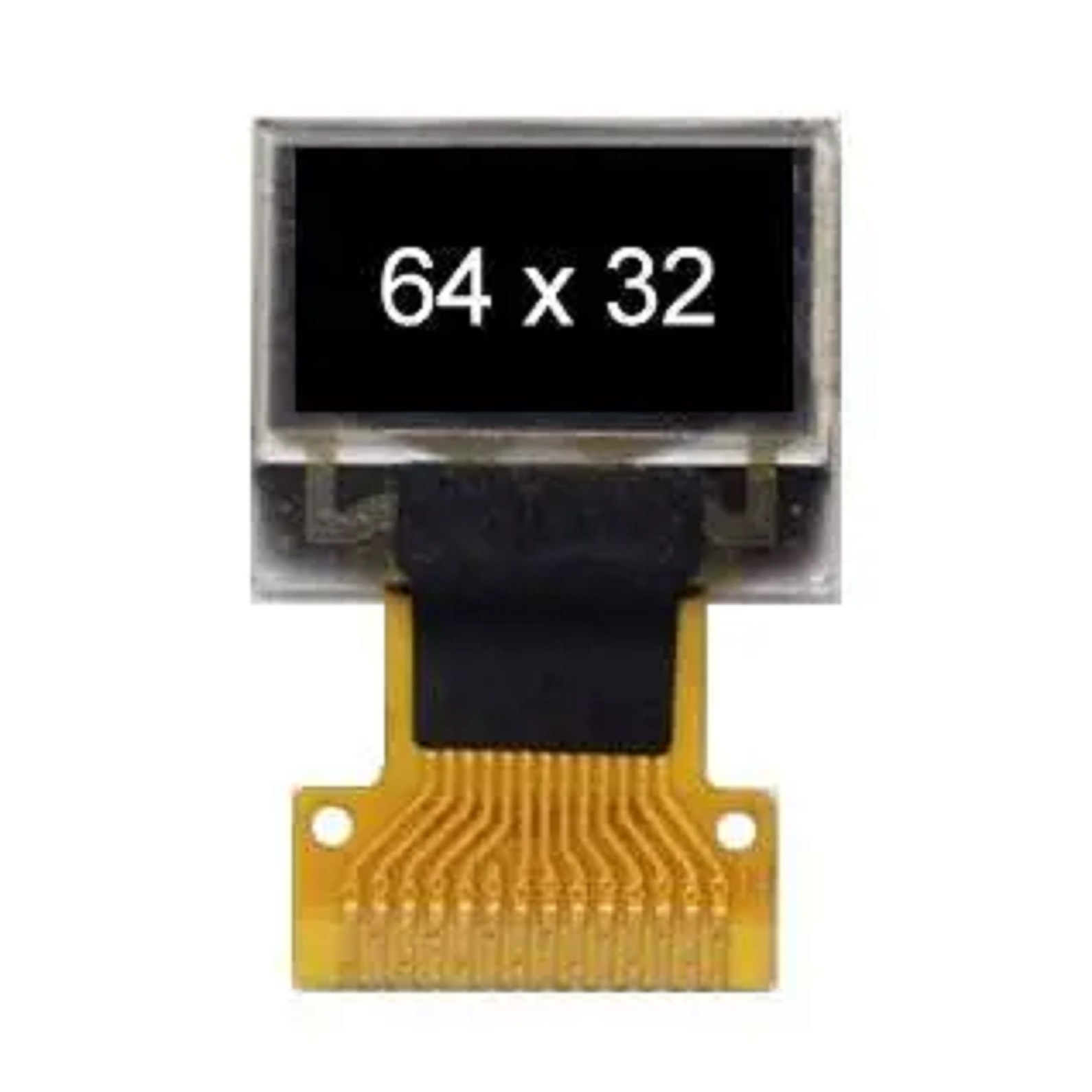

0.49inch OLED Display 64X32 OLED LCD Module

Item No.: HP6432-02-TSWG14P049
OLED Modules are perfect for wearable devices, hardware wallet, E-cigarette, white goods, smart home applications, IoT System, medical system, industrial instrument, DJ mixer, car equipment, car dashboard, car audio, car clock, car door display system, wa
0.49inch OLED Display 64X32 OLED LCD Module
Model: HP6432-02-TSWG14P049-A
Size 0.49 inch
Dots 64x32
Color White

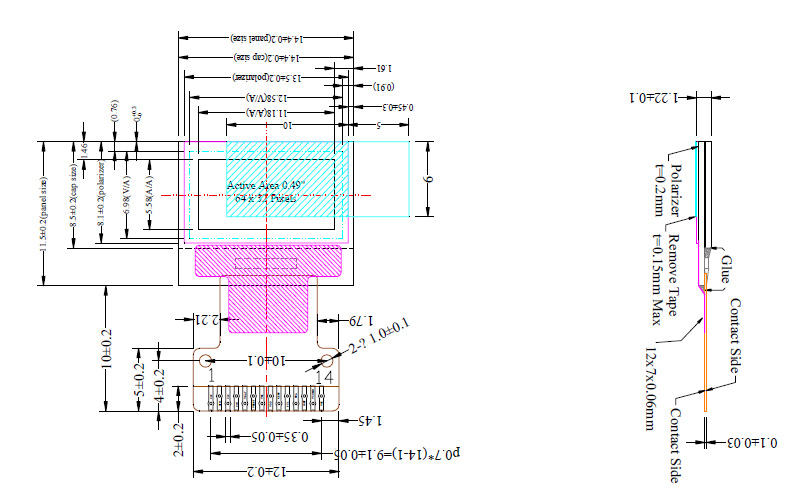

Outline Demision 14.5 x 11.6 x 1.227 mm
Viewing Area 12.58 x 6.98 mm
Active Area 11.18 x 5.58 mm
Drive IC SSD1306BZ
Interface I2C
Pin number 14
Operating Temperature: -40 ~ +70ºC
Storage Temperature: -40 ~ +85ºC
