0.42" 72x40 Monochrome OLED display

Name: 0.42" 72x40 Monochrome OLED display
Brand: reaperlcd
SKU: HP7240-30-TSWG16P042B
Availability: InStock
Rating: 5 (1 reviews)

Item No.: HP7240-30-TSWG16P042B

OLED Modules are perfect for wearable devices, hardware wallet, E-cigarette, white goods, smart home applications, IoT System, medical system, industrial instrument, DJ mixer, car equipment, car dashboard, car audio, car clock, car door display system, wa

INQUIRY

Description

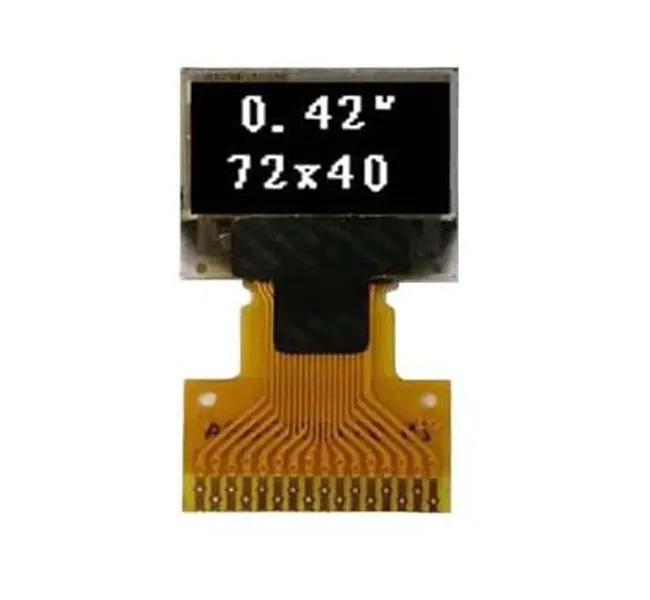

0.42inch OLED Display 72X40 OLED LCD Module

Model:	HP7240-30-TSWG16P042B
Size	42 inch
Dots	72x40
Color	White

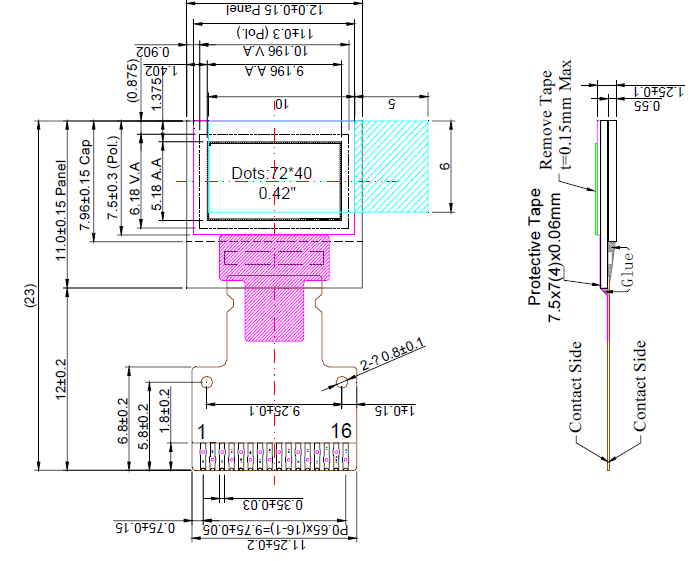

Outline Demision	12.0 x 11.0 x 1.227 mm
Viewing Area	10.196 x 6.18 mm
Active Area	9.196 x 5.18 mm
Drive IC	SSD1315
Interface	4 wire serial interface,I2C
Pin number	16
Operating Temperature:	-40 ~ +70ºC
Storage Temperature:	-40 ~ +85ºC
