OLED

0.91inch OLED Display 128X32 OLED LCD Module

Item No.: HP12832-07-TSBG15P091-A
OLED Modules are perfect for wearable devices, hardware wallet, E-cigarette, white goods, smart home applications, IoT System, medical system, industrial instrument, DJ mixer, car equipment, car dashboard, car audio, car clock, car door display system, wa
Description

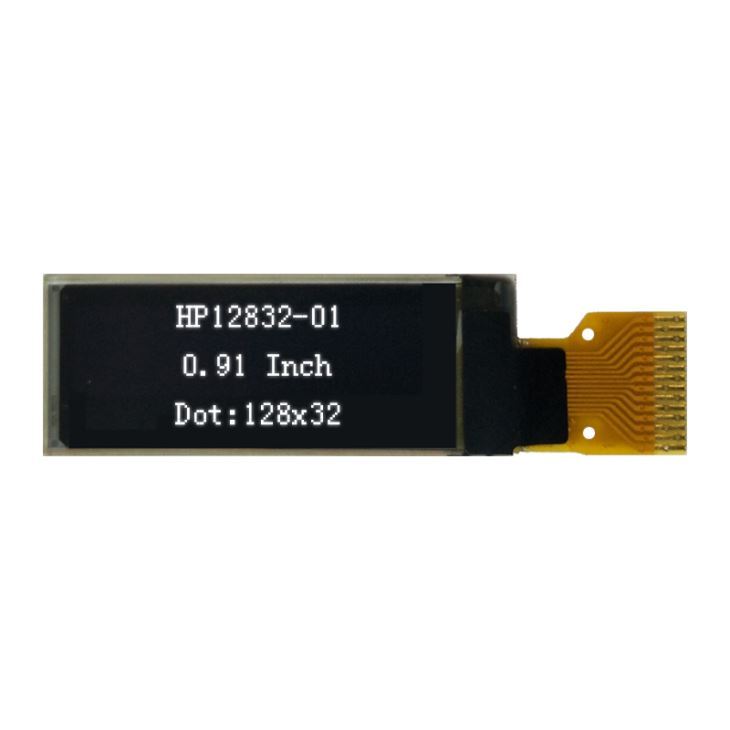

0.91inch OLED Display 128X32 OLED LCD Module
Model: HP12832-07-TSBG15P091-A
Size 0.91 inch
Dots 128x32
Color Blue

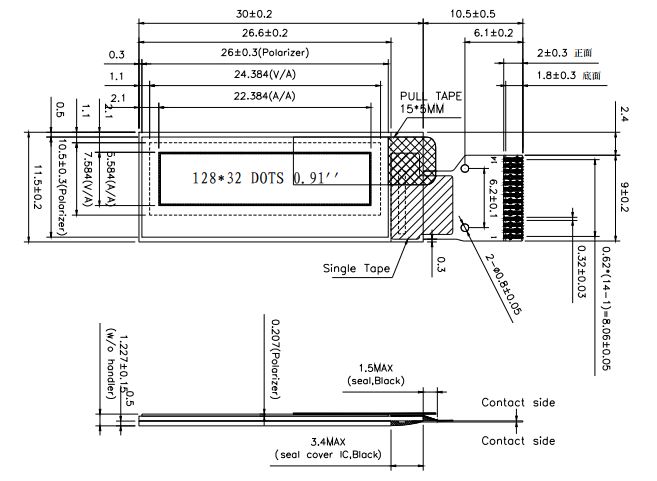

Outline Demision 30.0 x 11.5 x 1.227 mm
Viewing Area 24.384 x 7.584 mm
Active Area 22.384 x 5.584 mm
Drive IC SSD1306BZ
Interface 4 wire SPI
Pin number 15
Operating Temperature: -40 ~ +70ºC
Storage Temperature: -40 ~ +85ºC
