OLED

0.69inch OLED Display 96X16 OLED LCD Module

OLED Modules are perfect for wearable devices, hardware wallet, E-cigarette, white goods, smart home applications, IoT System, medical system, industrial instrument, DJ mixer, car equipment, car dashboard, car audio, car clock, car door display system, wa
Description

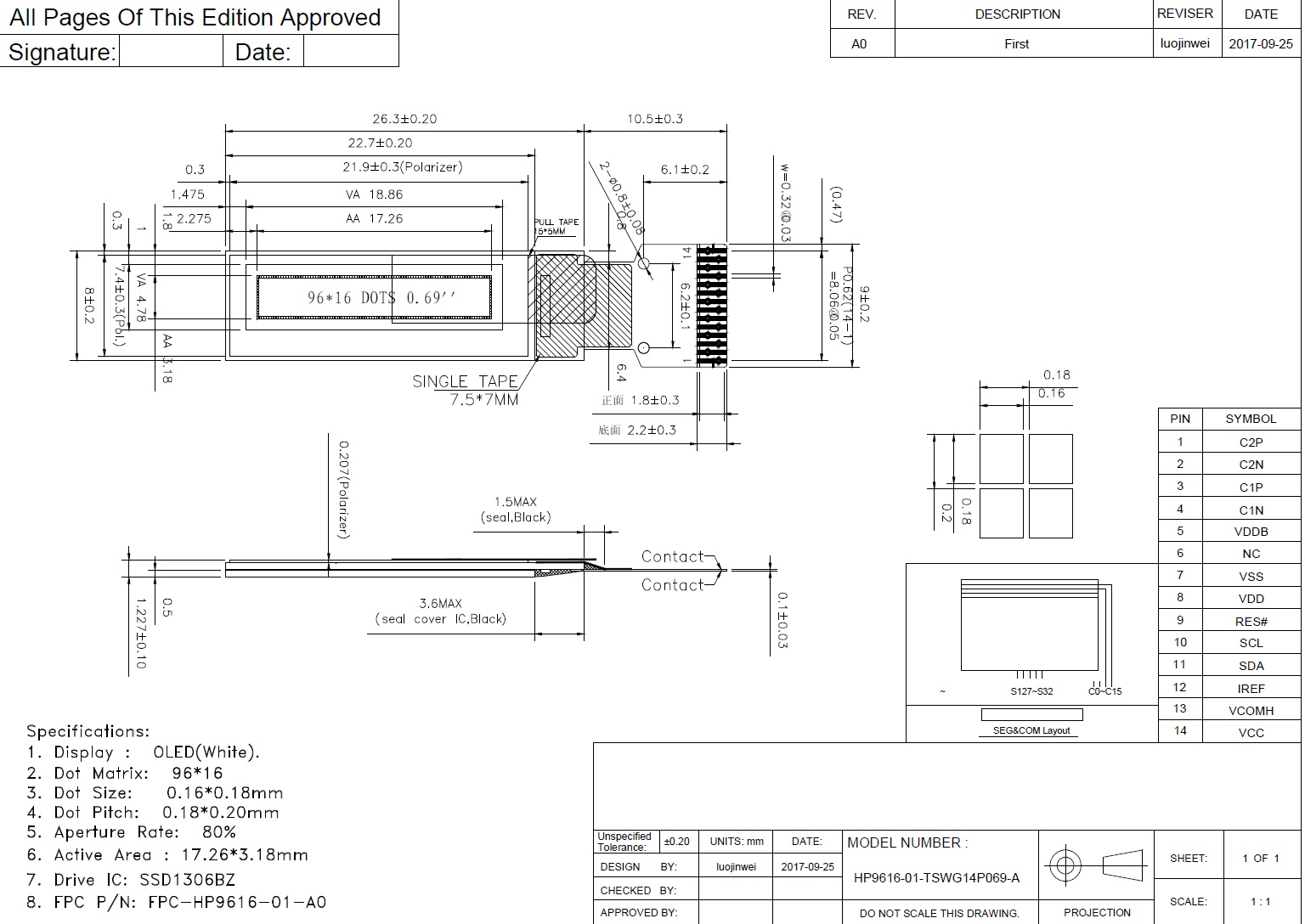

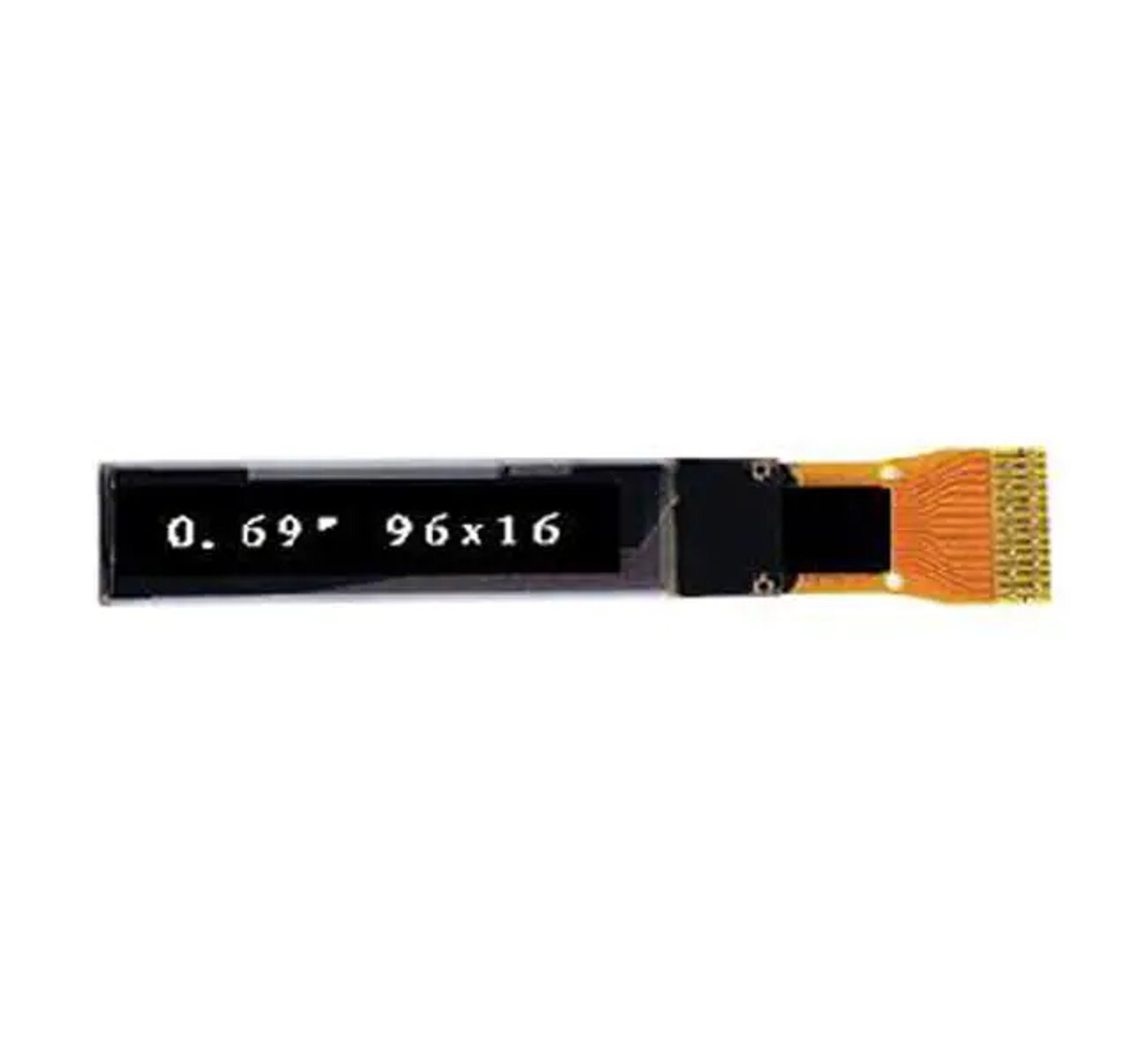

0.69inch OLED Display 96X16 OLED LCD Module
Model: HP9616-01-TSWG14P069
Size 0.69 inch
Dots 96x16
Color White
Outline Demision 26.3 x 8.0 x 1.227 mm
Viewing Area 18.86 x 4.78 mm
Active Area 17.26 x 3.18 mm
Drive IC SSD1306BZ
Interface I2C
Pin number 14
Operating Temperature: -40 ~ +70ºC
Storage Temperature: -40 ~ +85ºC
