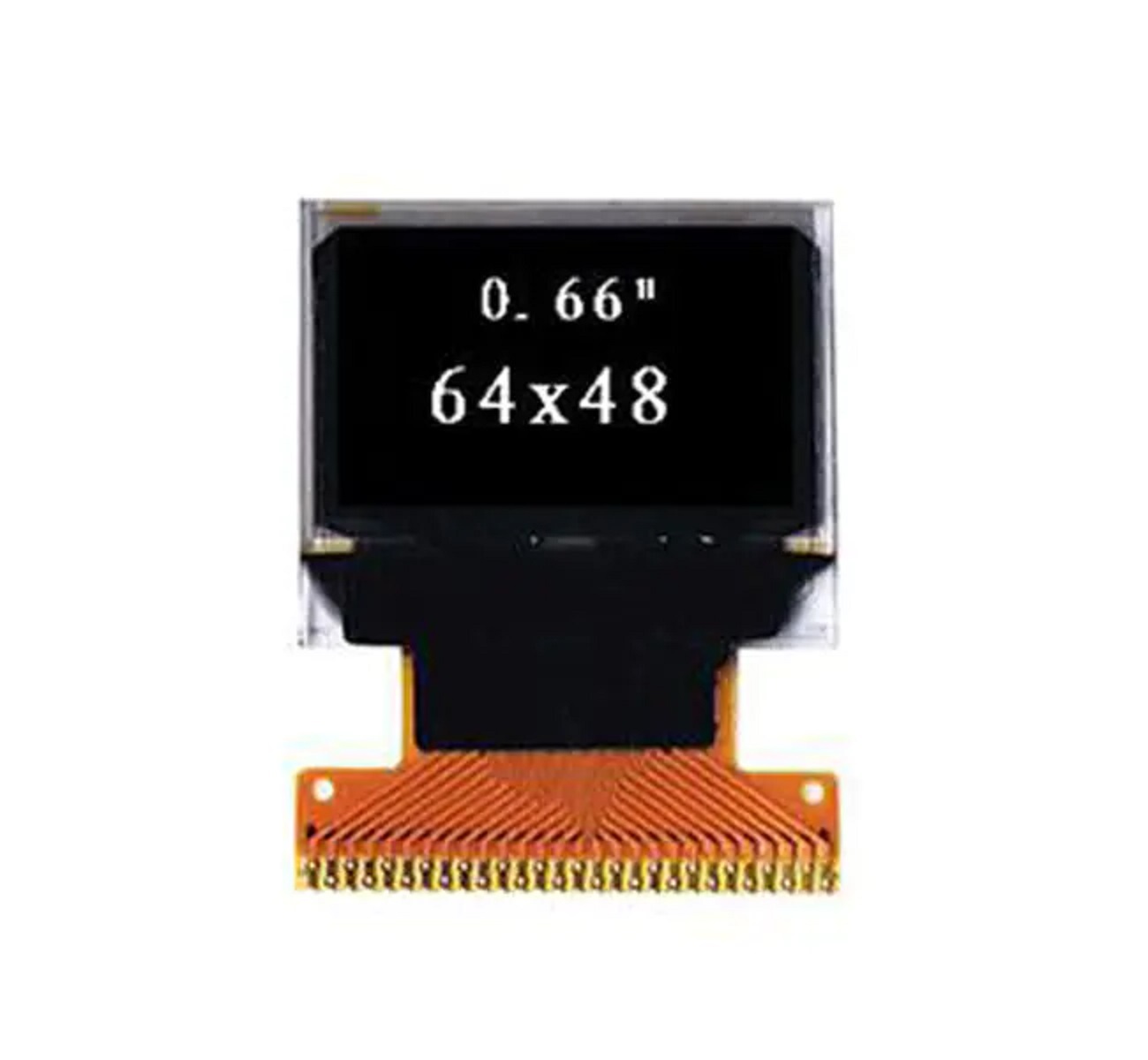

0.66inch OLED Display 64X48 OLED display Module

Name: 0.66inch OLED Display 64X48 OLED display Module
Brand: reaperlcd
SKU: HP6448-05-TSBG28P066
Availability: InStock
Rating: 5 (1 reviews)

Item No.: HP6448-05-TSBG28P066

OLED Modules are perfect for wearable devices, hardware wallet, E-cigarette, white goods, smart home applications, IoT System, medical system, industrial instrument, DJ mixer, car equipment, car dashboard, car audio, car clock, car door display system, wa

INQUIRY

Description

0.66inch OLED Display 64X48 OLED LCD Module

Model:	HP6448-05-TSBG28P066-A
Size	0.66 inch
Dots	64x48
Color	White/Blue

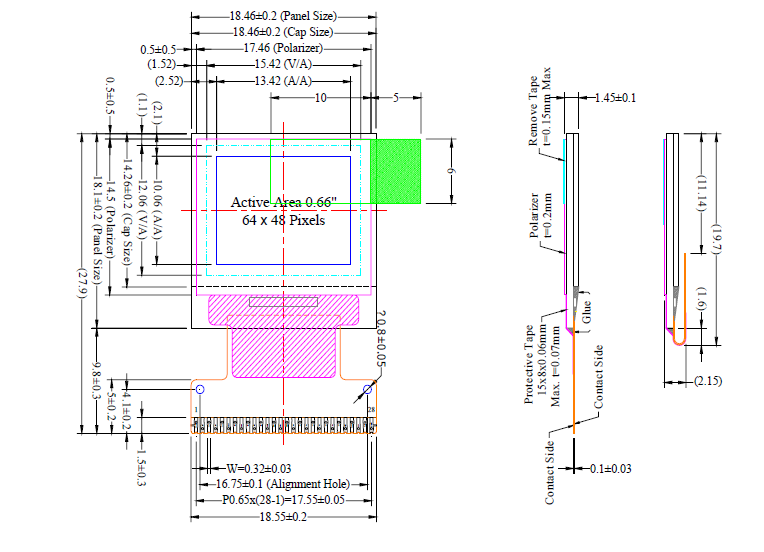

Outline Demision	18.46 x 18.1 x 1.21 mm
Viewing Area	15.42 x 12.06 mm
Active Area	13.42 x 10.06 mm
Drive IC	SSD1306BZ
Interface	I2C/SPI
Pin number	28
Operating Temperature:	-40 ~ +70ºC
Storage Temperature:	-40 ~ +85ºC
