0.49 Inch OLED Screen 64X32 Resolution 14pin Optional Board OLED Display

Name: 0.49 Inch OLED Screen 64X32 Resolution 14pin Optional Board OLED Display
Brand: reaperlcd
SKU: RP049HJ63S-V01
Availability: InStock
Rating: 5 (1 reviews)

No.RP049HJ63S-V01

High resolution: 64x32 (have the same resolution as 6432, high PPI);Large viewing angle: greater than 160° (a screen with the largest viewing angle in the monitor);Ultra-low power consumption: it's 0.06w in normal condition(far less than TFT display)

GET A QUOTE

Description

0.49 Inch OLED Screen 64X32 Resolution 14pin Optional Board OLED Display

Model:	RP049HJ63S-V01
Size	0.49 inch
Dots	64x32
Color	White

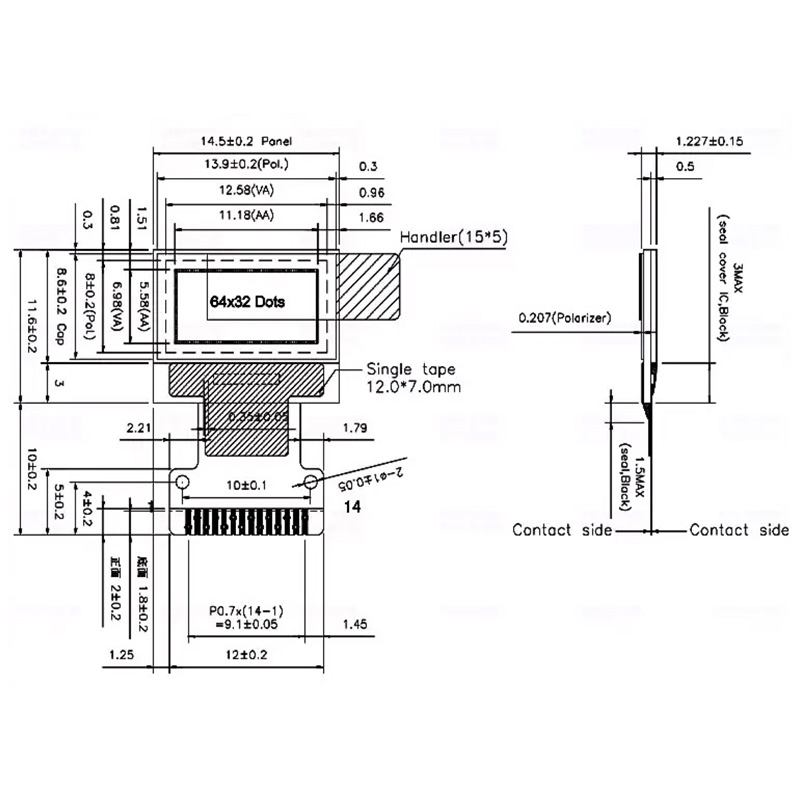

Outline Demision	14.50 x11.60 x 1.227 mm
Viewing Area	12.58 x 6.98 mm
Active Area	11.18 x 5.58 mm
Drive IC	SSD1315
Interface	IIC
Pin number	4/8/14
Operating Temperature:	-40 ~ +70ºC
Storage Temperature:	-40 ~ +85ºC
