TFT LCD Display

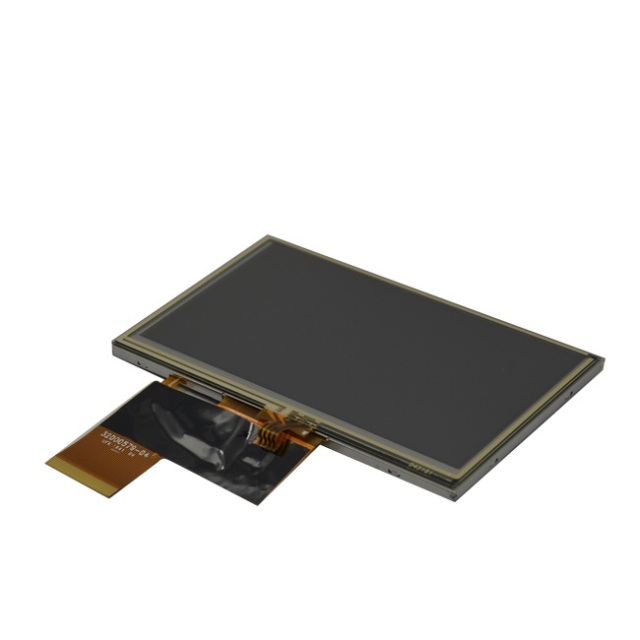

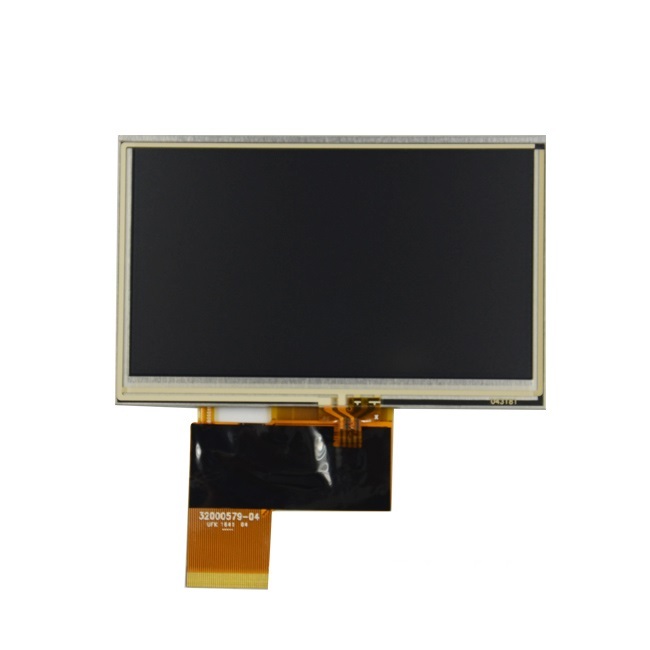

TFT LCD Display Screen 4.3" 480*272 RGB 40pin glued touch panel screen

Item No.: RP043145C0-40-N
RP043145C0-40-N is a 4.3inch 480x272 resolution TFT lcd display,which is optional with resistive touch screen and capacitive touch screen.This TFT module can be used for visual doorbell,
video telephony, automotive displays, portable DVD, instruments, me
Description
TFT LCD Display Screen 4.3" 480*272 RGB 40pin glued touch panel screen
Model: RP043145C0-40-N
Panel Size 4.3 inch
LCD Type TFT TRANSMISSIVE
Module Size 105.5(W)*67.2(H)*3.0(T) mm
Display Area 95.04*53.856 mm
Number of Dots 480×(RGB)×272 Dots
Best Viewing Direction 12 O’clock
Driver IC ILI6485
Display Type 262K
LED Numbers 7 White leds
Operating Temperature: -20 ~ +70ºC
Storage Temperature: -30 ~ +80ºC
