TFT LCD Screen 2.4inch IPS view QVGA 240X320 MCU 8bit TFT LCD Display Module

Item No.: RPK240I20304
Model: RPK240I20304
Dot Matrix: 240 x 320

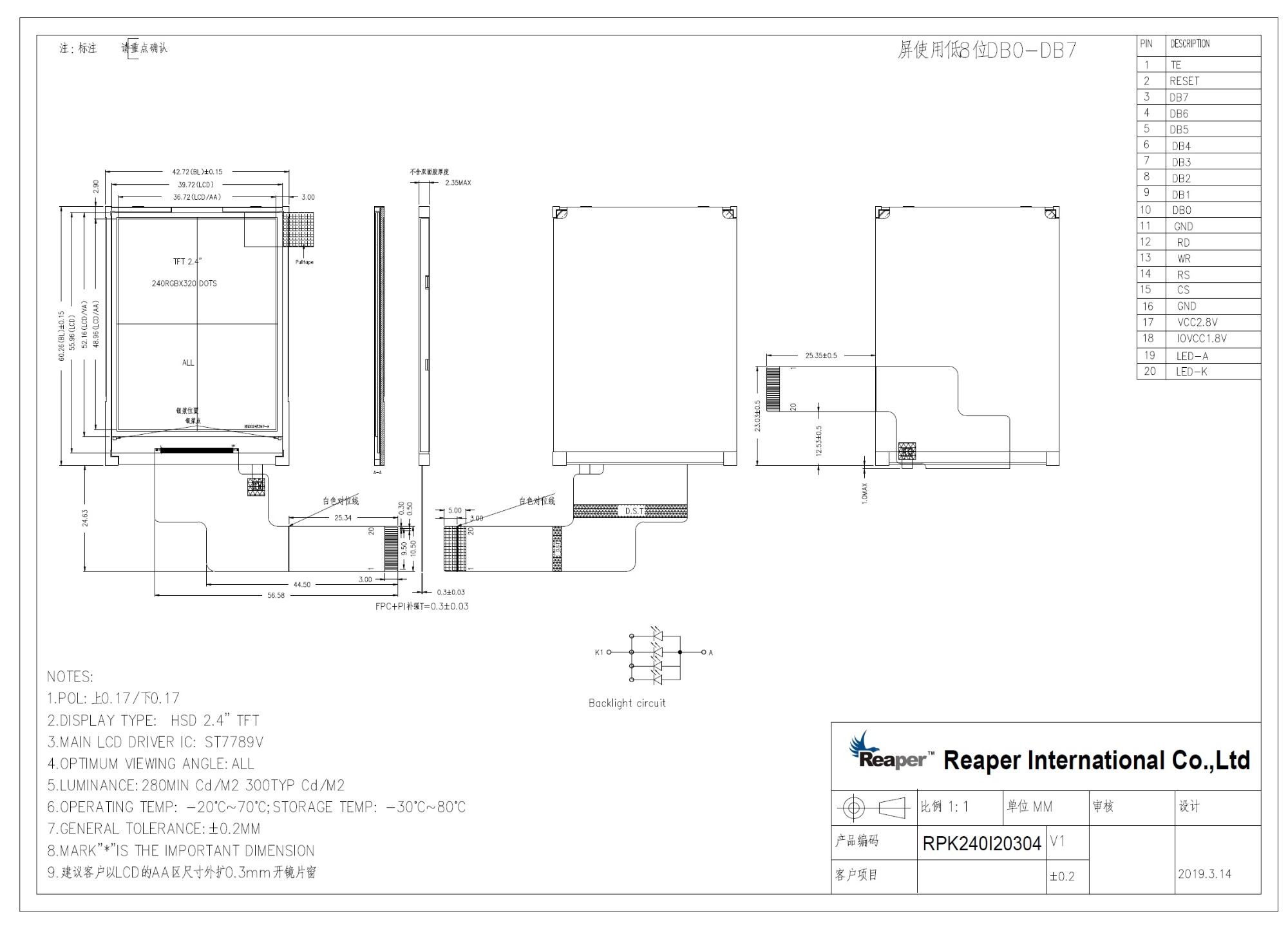

Module size: 42.72(W) x 60.26(H) x 2.35(T)mm
Active area: 36.72(W) x 48.96(H)mm
Description
TFT LCD Screen 2.4inch IPS Veiwing Qvga 240X320 MCU 8bit TFT LCD Display Module
Model: RPK240I20304
Panel Size 2.4 inch
LCD Type TFT TRANSMISSIVE
Module Size 42.72(W) x 60.26(H) x 2.35(T)mm
Display Area 36.72(W) x48.96(H)mm
Number of Dots 240×(RGB)×320 Dots
Best Viewing Direction All
Driver IC ST7789V
LED Numbers 4 White leds
Operating Temperature: -20 ~ +70ºC
Storage Temperature: -30 ~ +80ºC
