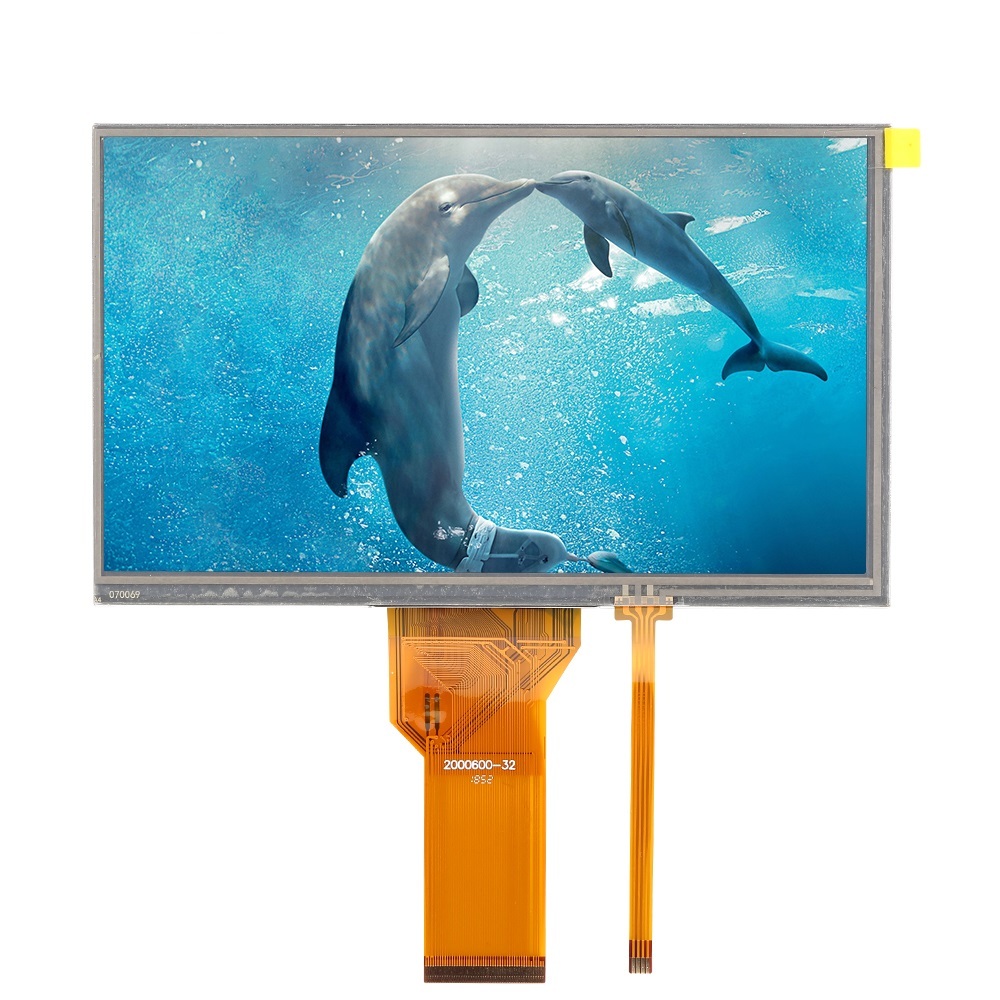

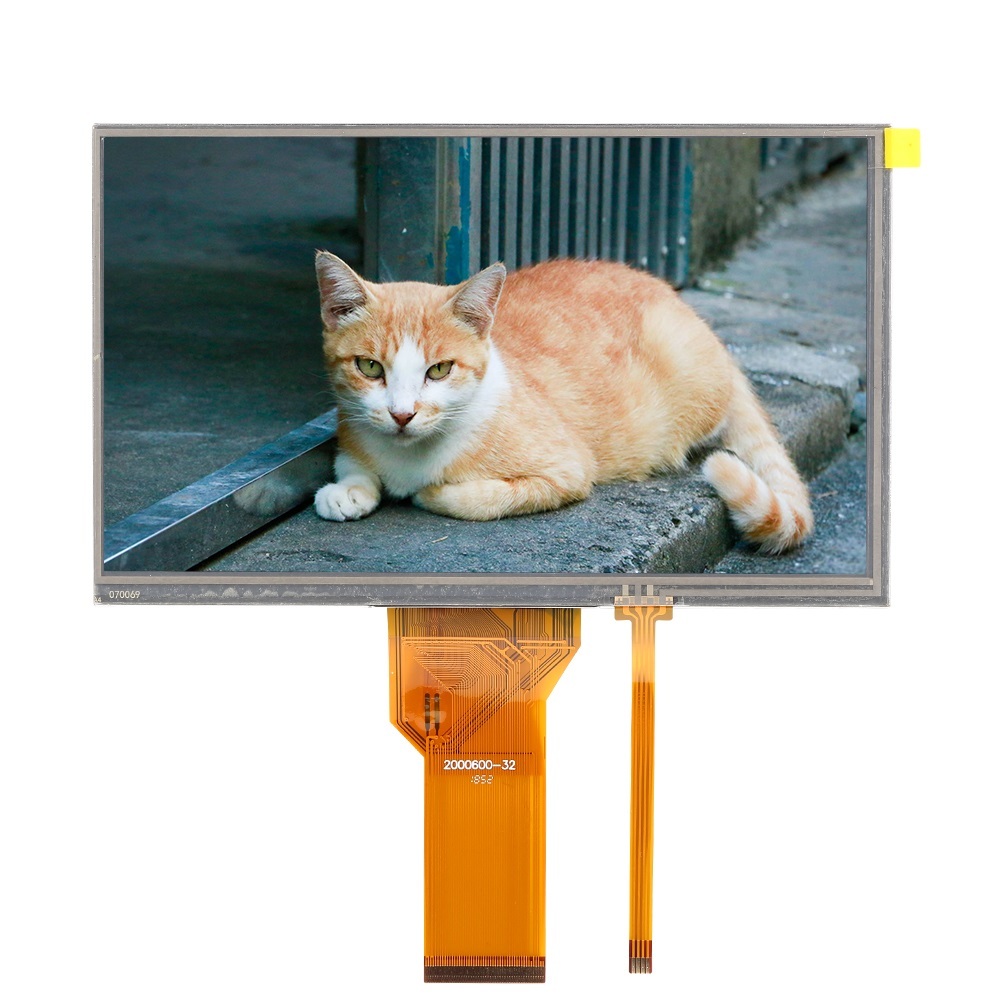

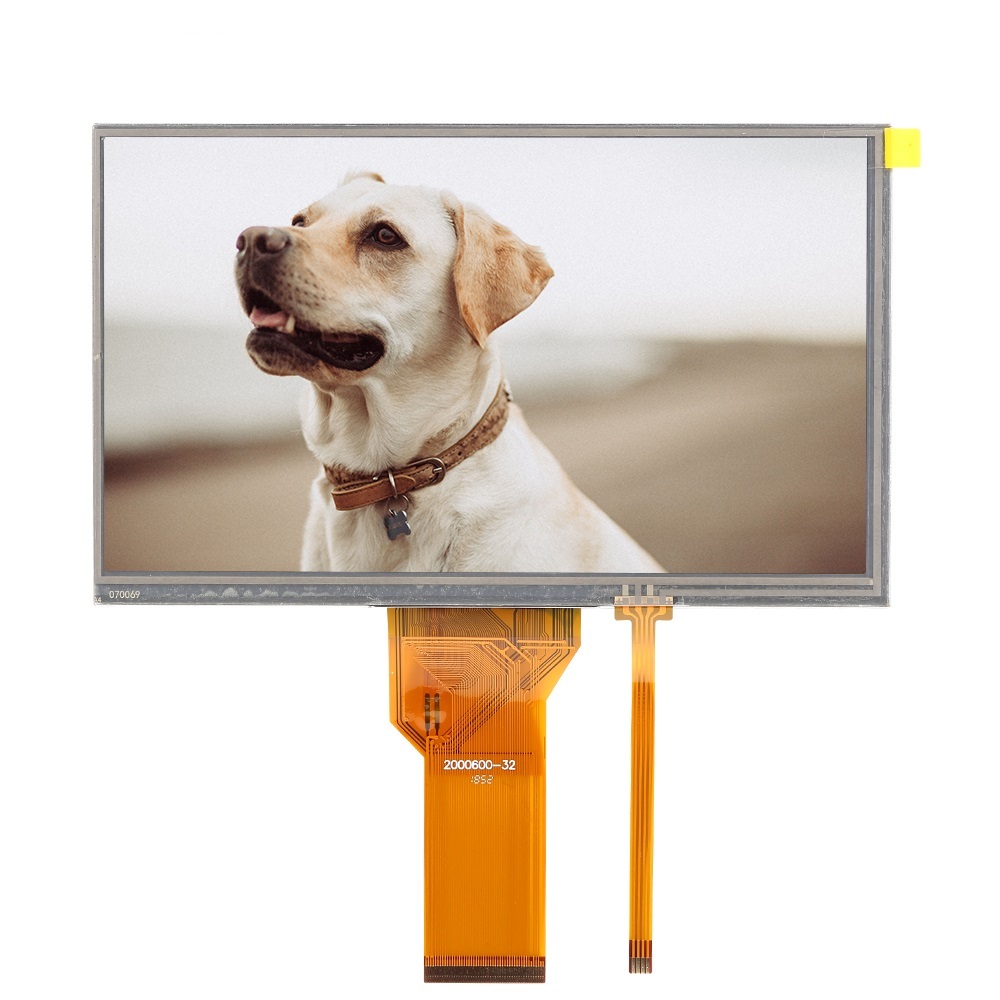

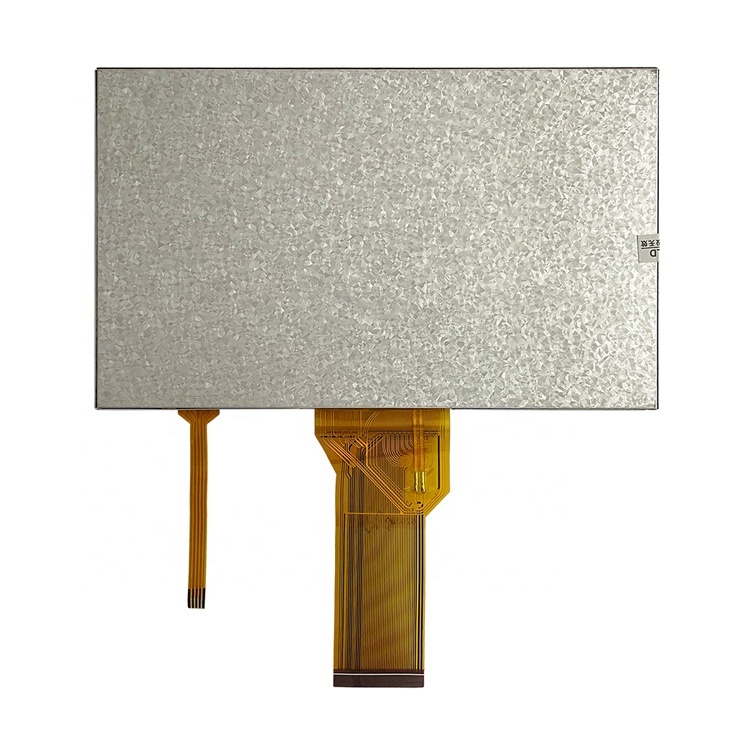

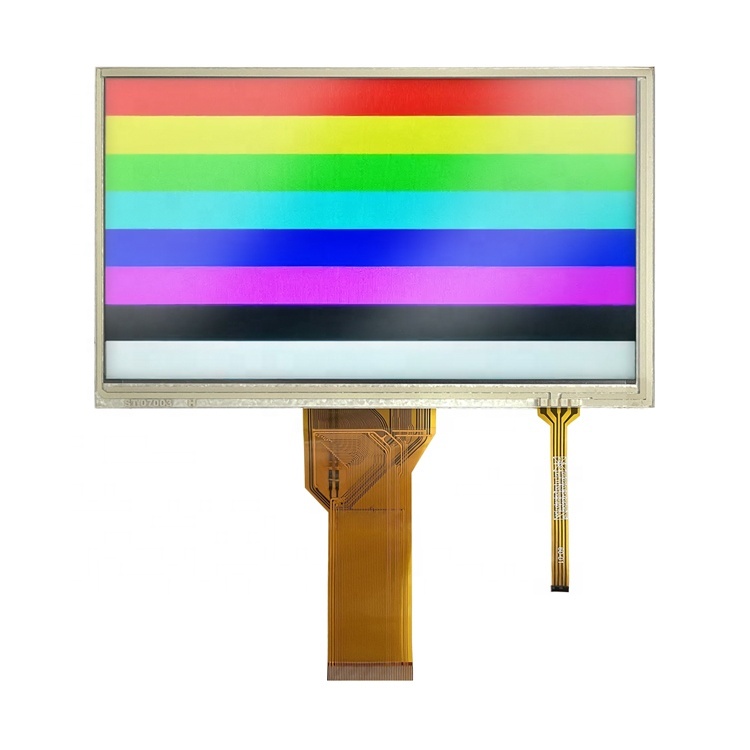

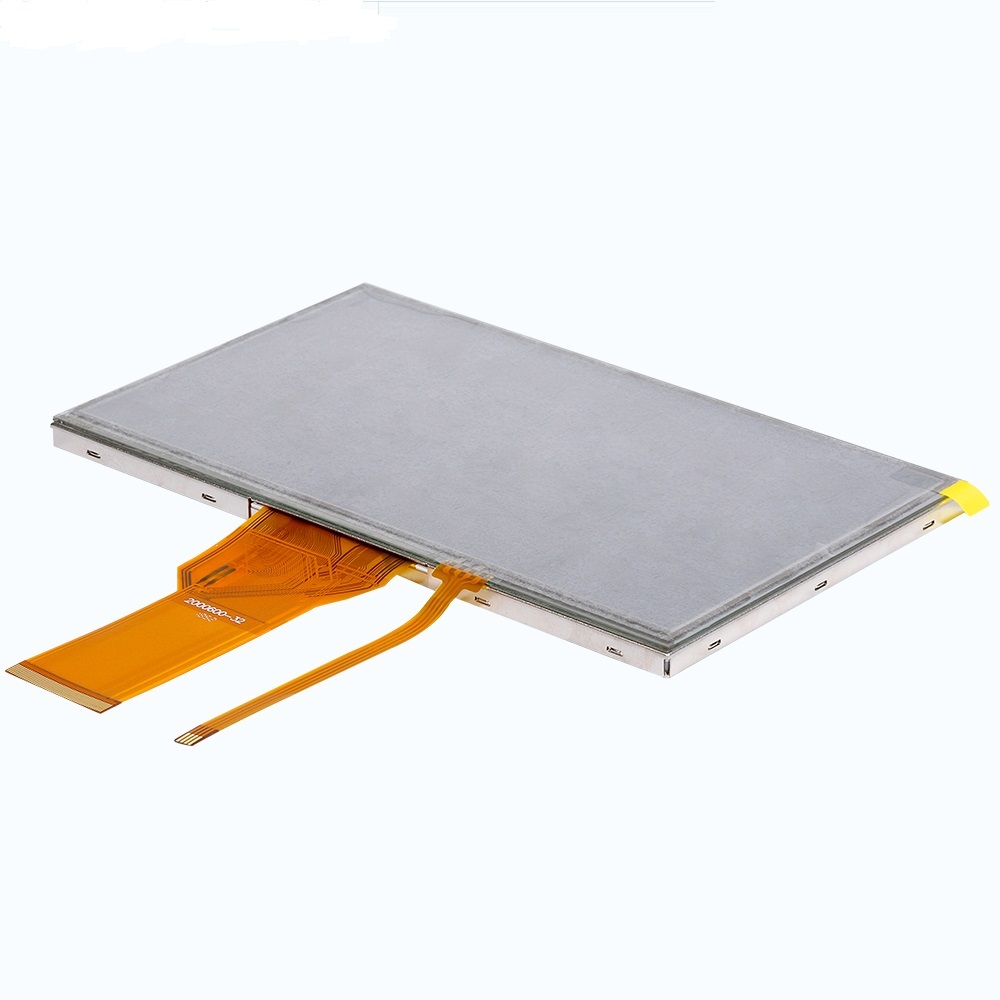

TFT LCD Innolux AT070TN94 7inch 800X480 LCD Display Apply for Industrial or Automative

AT070TN94 is a brand new Innolux 7inch lcd display,it is can be assembled with RTP and CTP,it is used to smart device,lcd monitor,industrial application.
Description
TFT LCD Innolux At070tn94 7inch 800X480 LCD Display Apply for Industrial or Automative
Model: AT070TN94
Panel Size 7 inch
LCD Type TFT TRANSMISSIVE
Module Size 164.9(W)*100.0(H)*5.7(T) mm
Display Area 154.08*85.92 mm
Number of Dots 800×(RGB)×480 Dots
Best Viewing Direction 12 O’clock
LED Numbers 27 White leds
Operating Temperature: -20 ~ +70ºC
Storage Temperature: -30 ~ +80ºC
Brand:
Reaper standard TFT-LCD display modules are available in various sizes from 1.77" to 10.4' TFT LCD, such as 2.4" TFT display, 2.8", 3.5" TFT display, 4.3" TFT display, 5 inch display, 7" LCD display.  These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, and wide operating temperatures of -20°C to +70°C or -30°C to +80°C.

Reaper TFT displays are available in various graphic display resolutions including QVGA (320 x 240), WQVGA (480x272), VGA (640x480), WVGA (800x480), 640x320, 1024x600, XGA (1024x768) and WXGA(1280x800).  Many of Reaper TFT display modules have more than one interface available including MCU, RGB, TTL and LVDS as well as two touch panels optional in resistive and capacitive technology
