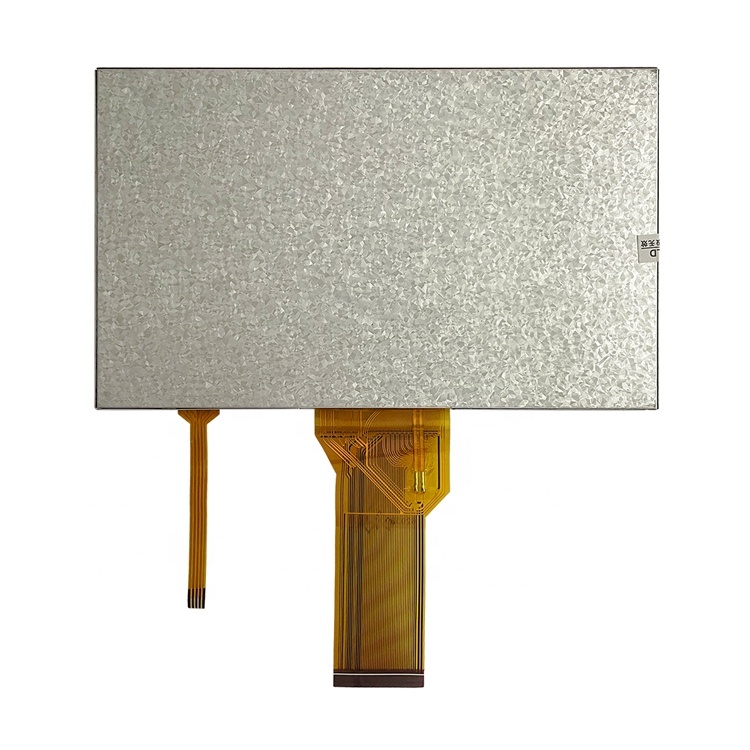

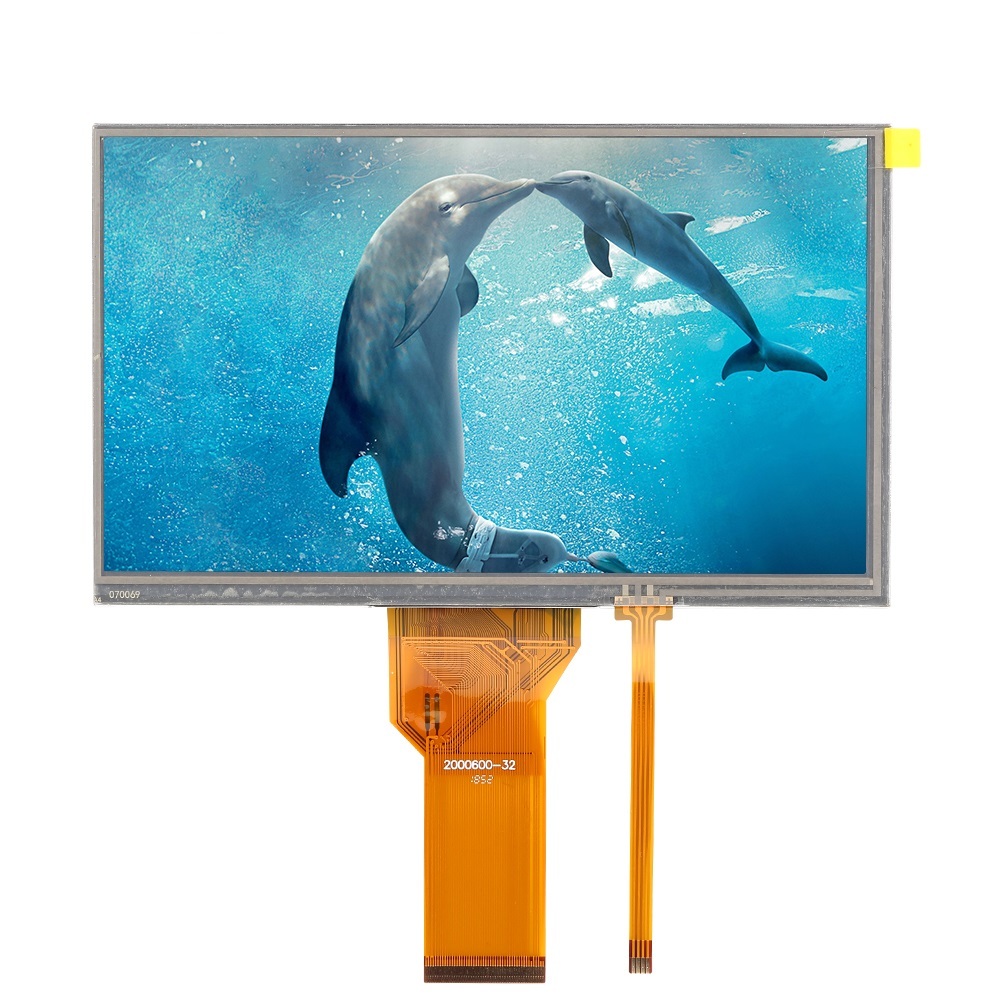

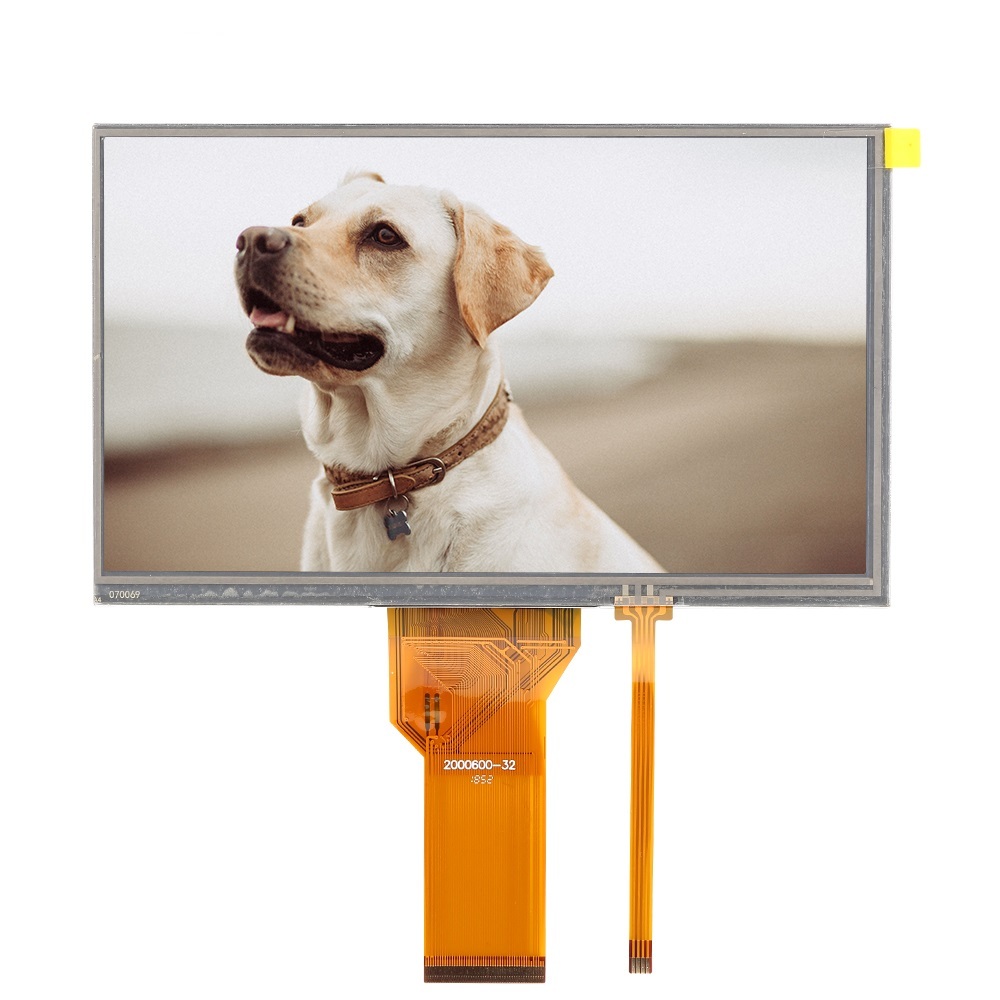

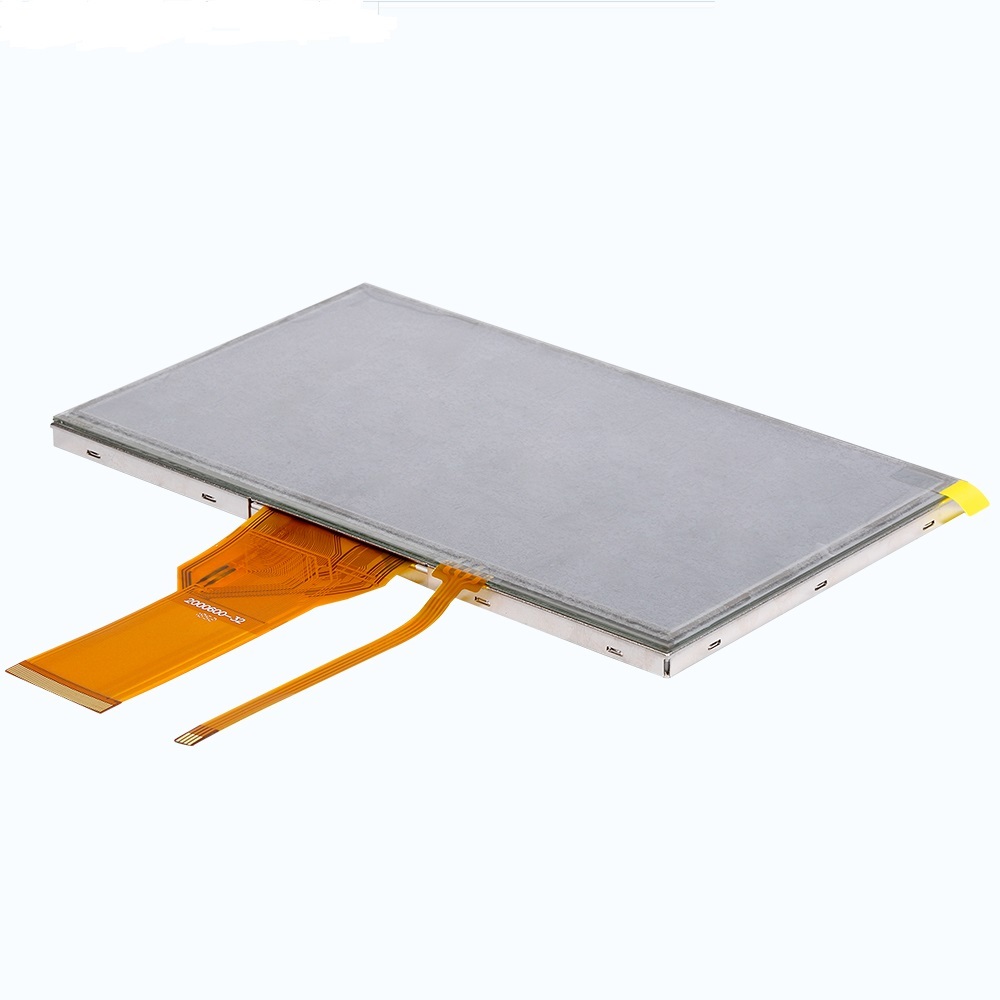

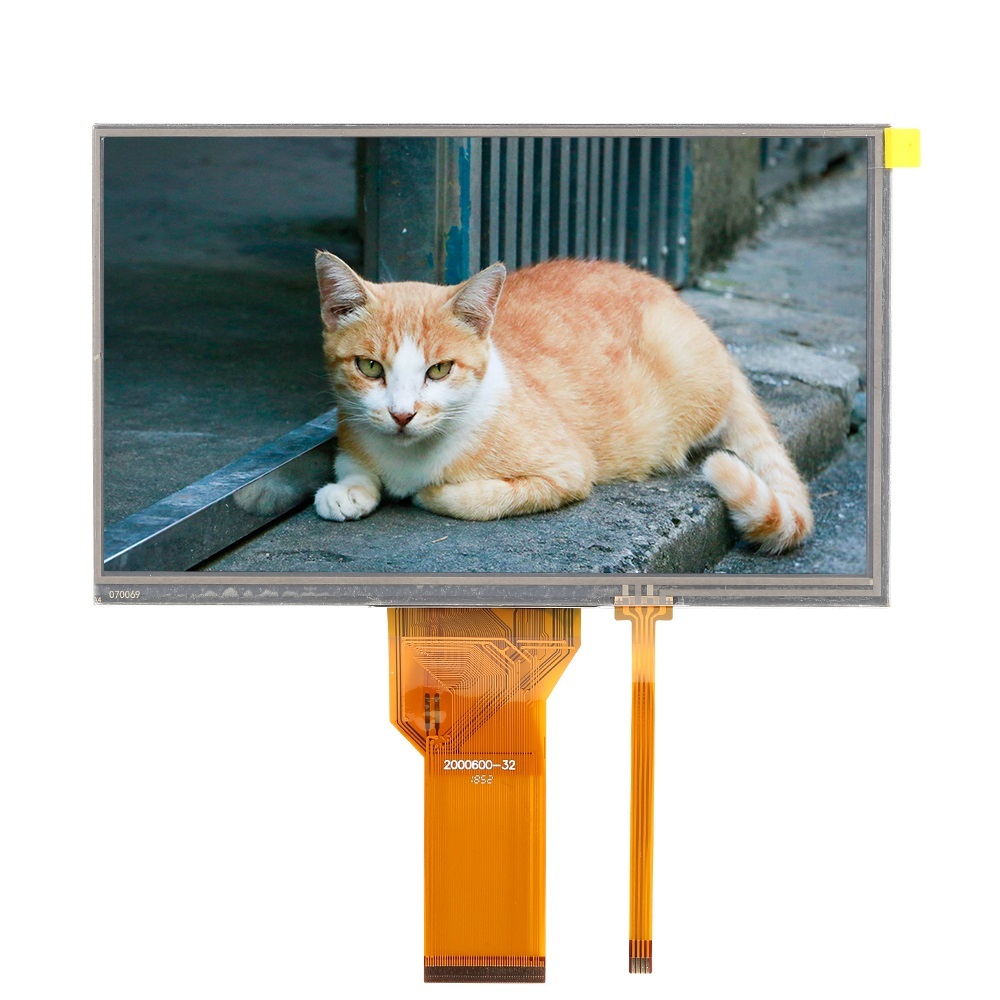

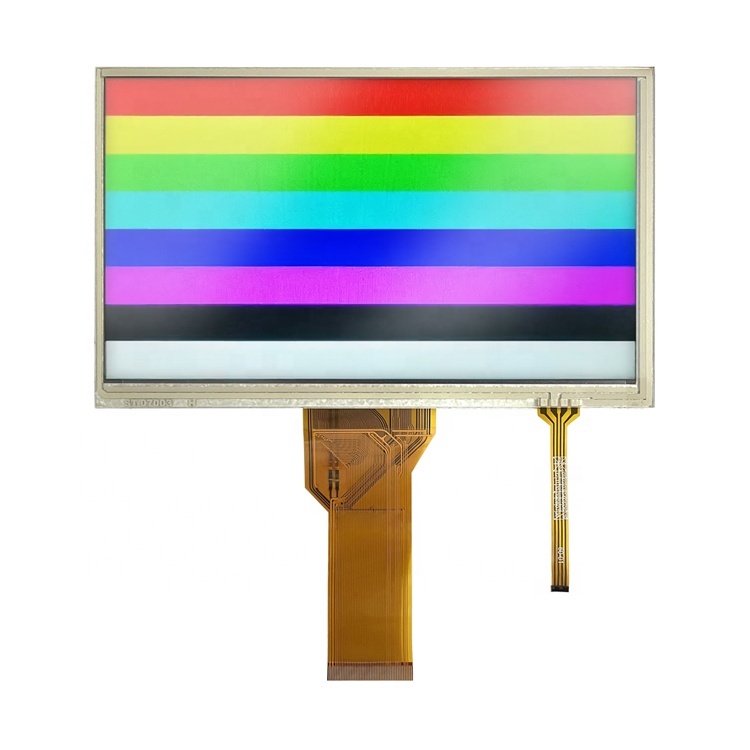

TFT LCD Innolux At070tn94 7inch 800X480 LCD Display Apply for Industrial or Automative
| Model: |
AT070TN94 |
| Panel Size |
7 inch |
| LCD Type |
TFT TRANSMISSIVE |
| Module Size |
164.9(W)*100.0(H)*5.7(T) mm |
| Display Area |
154.08*85.92 mm |
| Number of Dots |
800×(RGB)×480 Dots |
| Best Viewing Direction |
12 O’clock |
| LED Numbers |
27 White leds |
| Operating Temperature: |
-20 ~ +70ºC |
| Storage Temperature: |
-30 ~ +80ºC |
Brand:
Reaper standard TFT-LCD display modules are available in various sizes from 1.77" to 10.4' TFT LCD, such as 2.4" TFT display, 2.8", 3.5" TFT display, 4.3" TFT display, 5 inch display, 7" LCD display. These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, and wide operating temperatures of -20°C to +70°C or -30°C to +80°C.
Reaper TFT displays are available in various graphic display resolutions including QVGA (320 x 240), WQVGA (480x272), VGA (640x480), WVGA (800x480), 640x320, 1024x600, XGA (1024x768) and WXGA(1280x800). Many of Reaper TFT display modules have more than one interface available including MCU, RGB, TTL and LVDS as well as two touch panels optional in resistive and capacitive technology
