Supporting HDMI Input 7 Inch IPS TFT LCD Display With Capacitive Touch Screen for PC Monitor Raspberry Pi Digital Devices

Item No.: RPMPI70021
HDMI signal Displays are designed to work with the Raspberry Pi or embedded system, single board computers (or desktop/laptops) which support HDMI  signal output. This series display modules come with a control board with a HDMI signal interface output;
Description
Supporting HDMI Input 7 Inch IPS TFT LCD Display With Capacitive Touch Screen for PC Monitor Raspberry Pi Digital Devices

Product Description

  • 7’’ standard display, 1024 × 600 Hardware resolution, Up to 1920x1080 Software configuration resolution.
  • capacitive touch screen, maximum support 5 point touch
  • support backlight control alone, the backlight can be turned off to save power

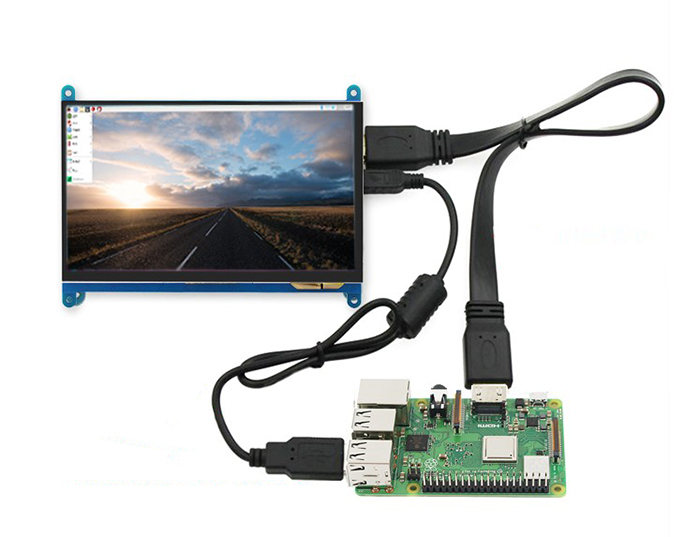

  • support Raspberry Pi, BB Black, Banana Pi and other mainstream mini PC
  • can be used as general-purpose-use HDMI monitor, for example: connect with a computer HDMI as the sub-display

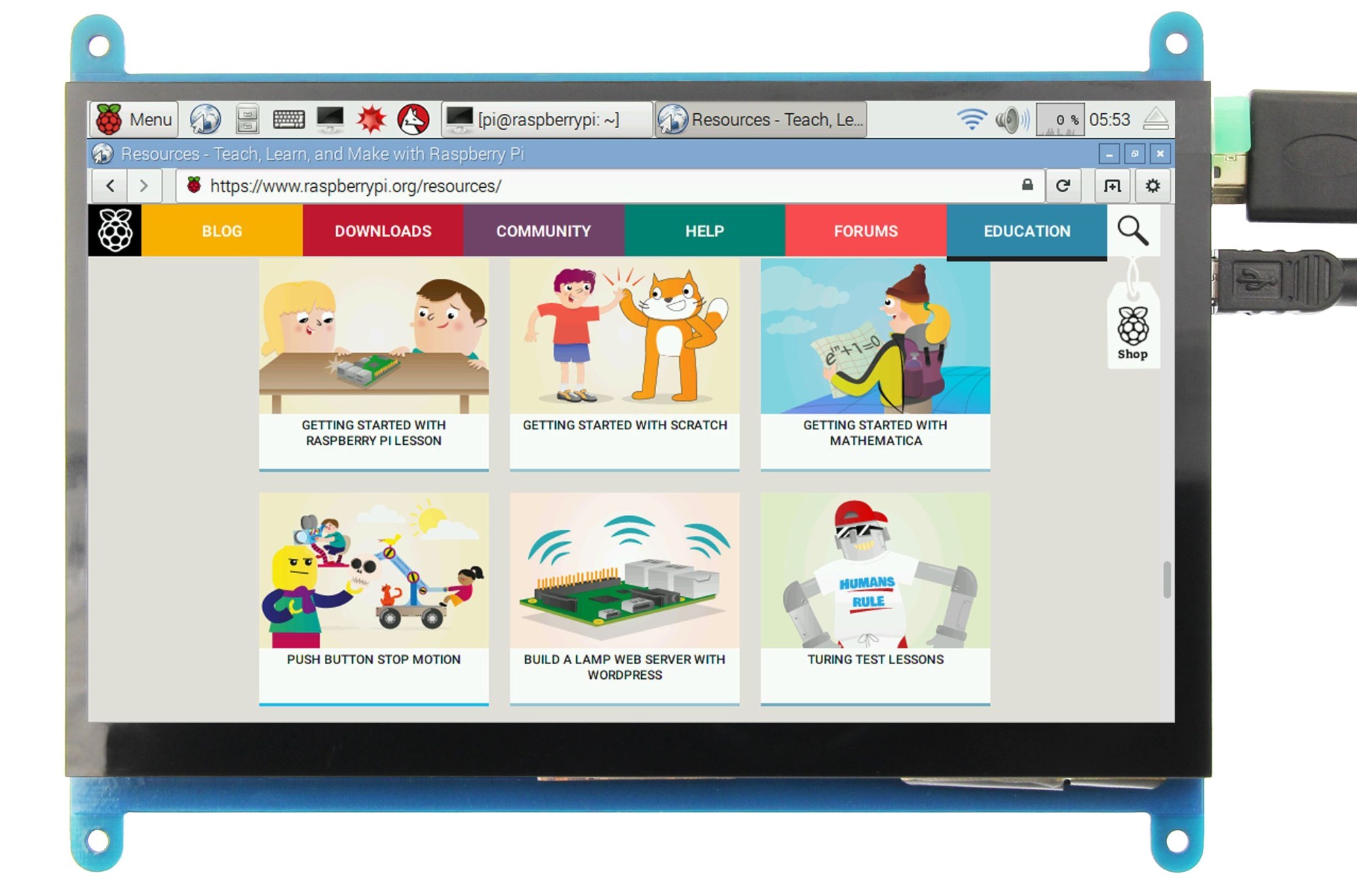

  • used as a raspberry pi display that supports Raspbian, Ubuntu, Kali-Linux, Kodi, win10 IOT, single-touch, free drive
  • work as a PC monitor, support win7, win8, win10 system 5 point touch (XP and older version system: single-point touch), free drive
  • CE, RoHS certification

Product Parameters

  • Size: 7 (inch)
  • SKU: RPMPI7002
  • Resolution: 1024 × 600 (dots)
  • Touch: 5 point capacitive touch
  • Audio output: support

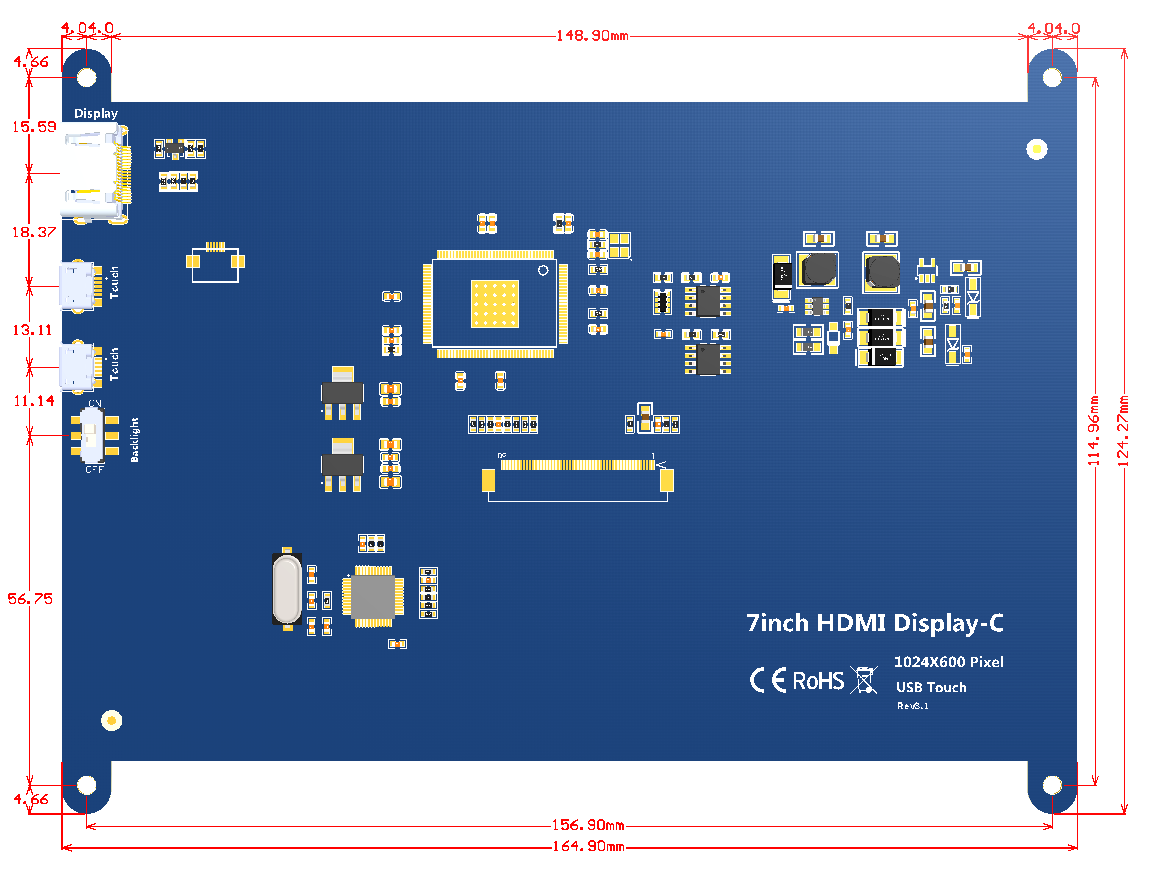

  • Dimensions: 164.9*124.27 (mm)
  • Rough Weight(Package containing): 380 (g)

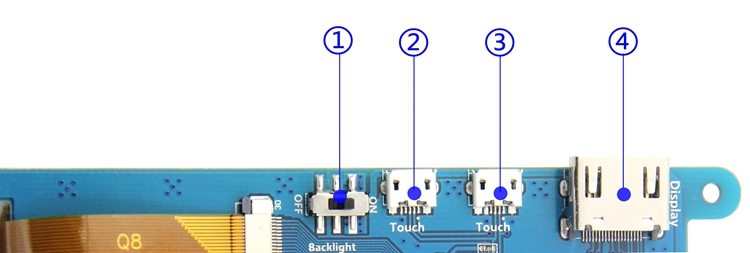

Hardware Description


① Backlight Power switch: Controls the backlight turned on and off to save power.
②③USB Touch / power supply connector: For power supply and touch output, the functions of the both are the same, can just use one of them.
④HDMI interface: For connecting motherboard and LCD monitor to HDMI transmission.




Brand:
Reaper , over ten years manufacturer and exporter of various LCD display including mono LCD, TFT display, OLED display, touch panel and customized LCD solution.With the advantages of high contrast,fast response time, wide viewable angle and low power consumption, Reaper's products are widely used in Industrial Equipment, Medical devices,Home Intelligent Devices, Digital comsumers, Video Game Devices,Instruments etc.
