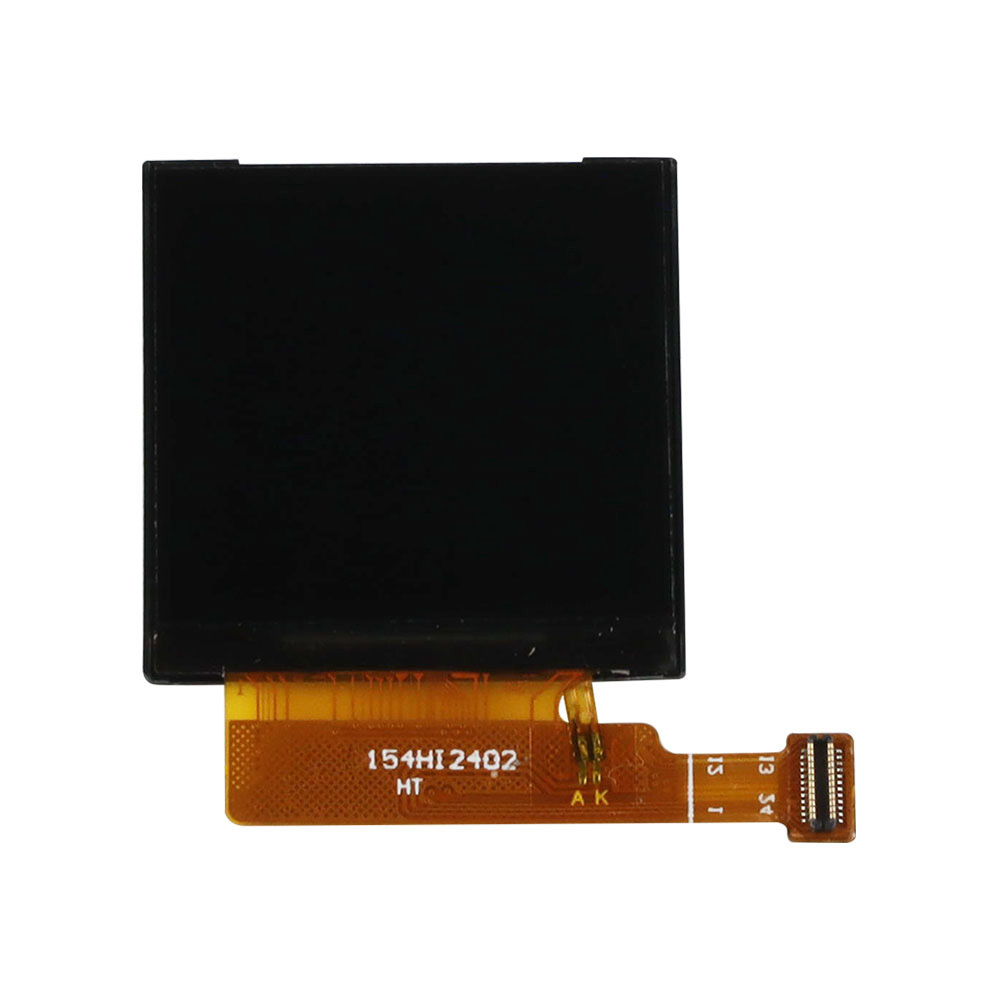

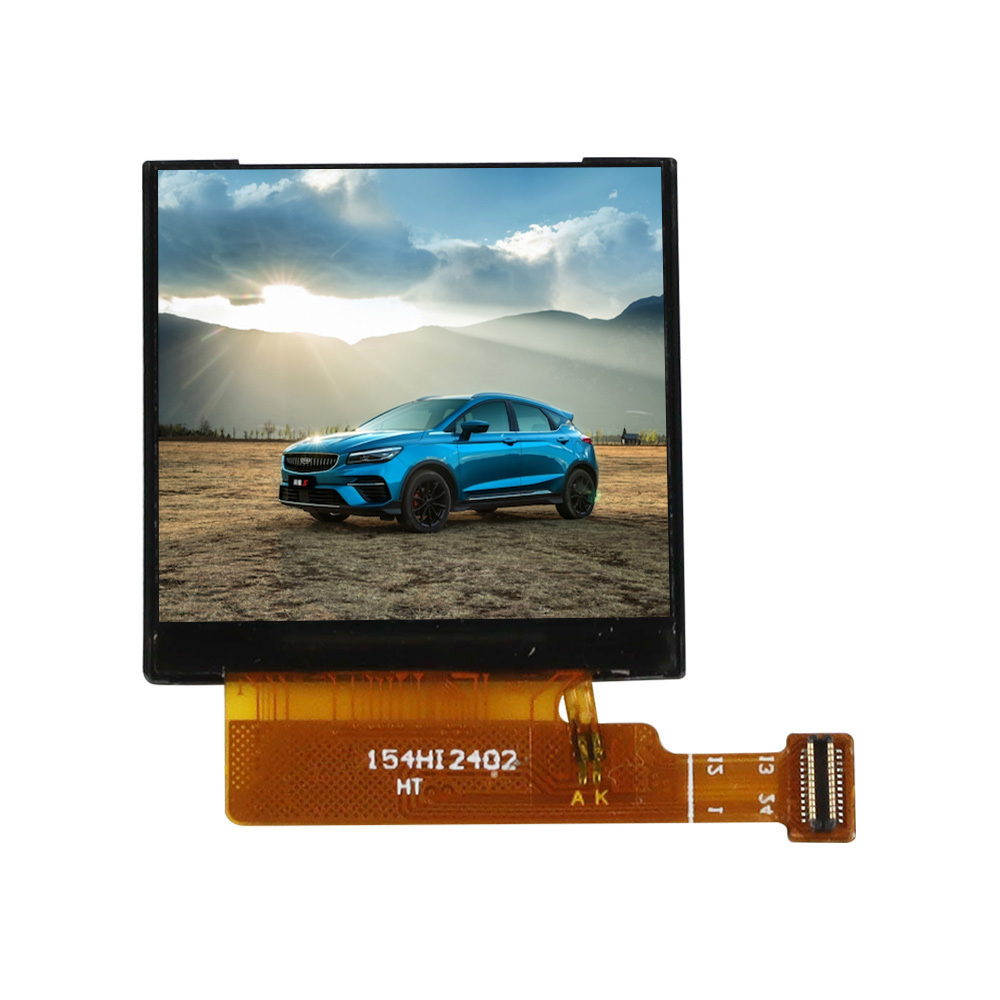

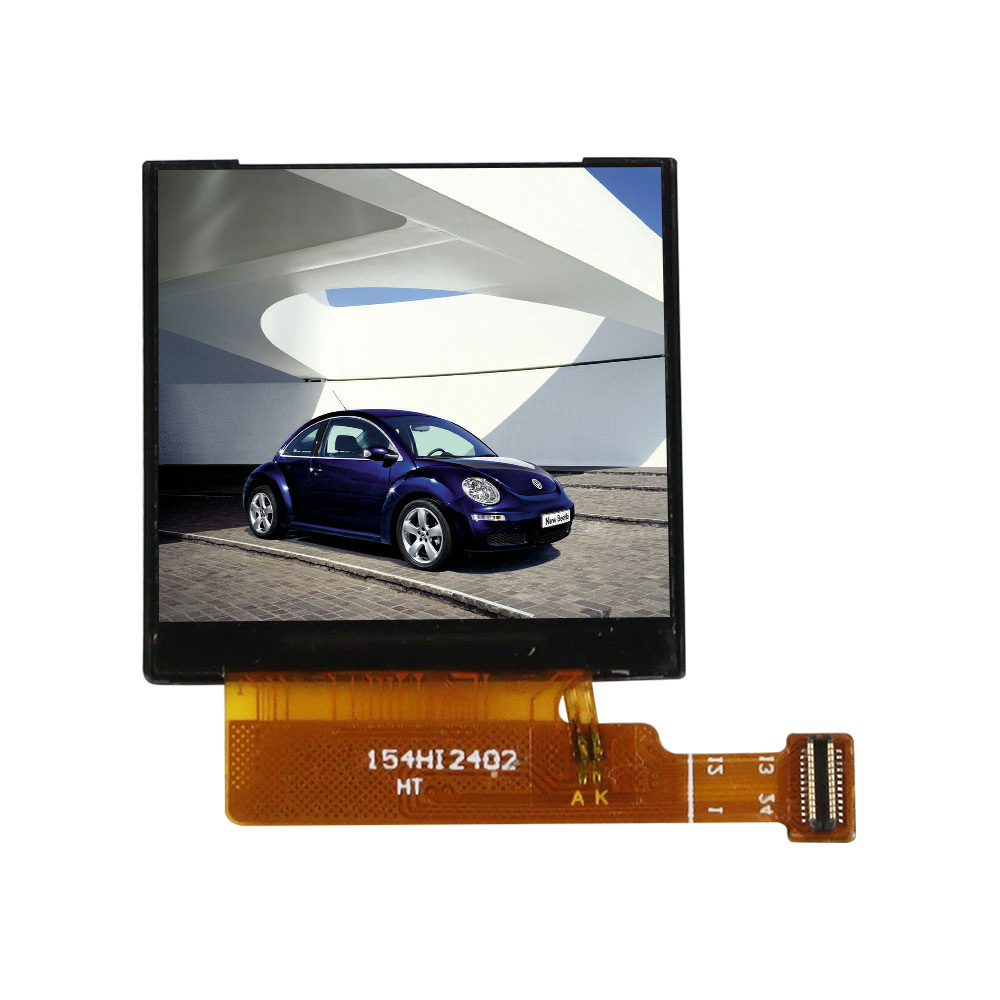

Small Size TFT LCD Display Color Screen 1.54 Inch 240*240 Resolution Spi Interface Optional Capacitive Touch Panel
| Item |
Contents |
Unit |
| Size |
1.54TFT |
inch |

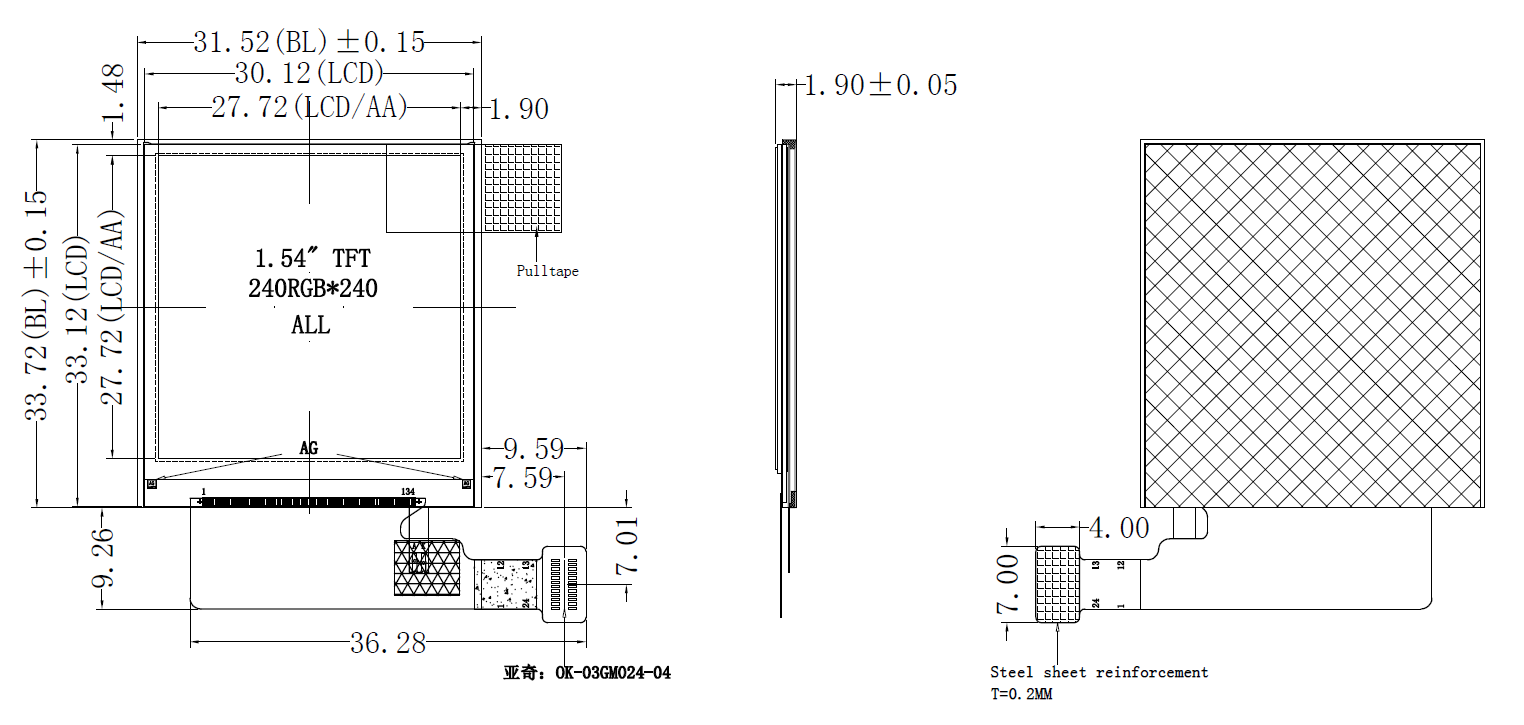

| LCM Dimension |
31.52（W）* 33.72（H） *1.90(T) |
mm |
| LCD Active Area |
27.72* 27.72 |
mm |
| Number OfDots |
240 * RGB * 240 |
pixel |
| LCD Type |
a-Si TFT |
|
| Viewing Direction |
ALL |
|
| Driver IC |
ST7789V |
|
| Interface Type |
SPI |
|
| Operating Temperature |
-20℃~ 70℃ |
|
| Storage Temperature |
-30℃~ 80℃ |
|
| Backlight Type |
3 LEDs |
|
| Weight |
TBD |
|
Brand:
Reaper , over ten years manufacturer and exporter of various LCD display including mono LCD, TFT display, OLED display, touch panel and customized LCD solution.With the advantages of high contrast,fast response time, wide viewable angle and low power consumption, Reaper's products are widely used in Industrial Equipment, Medical devices,Home Intelligent Devices, Digital comsumers, Video Game Devices,Instruments etc.
