TFT LCD Display

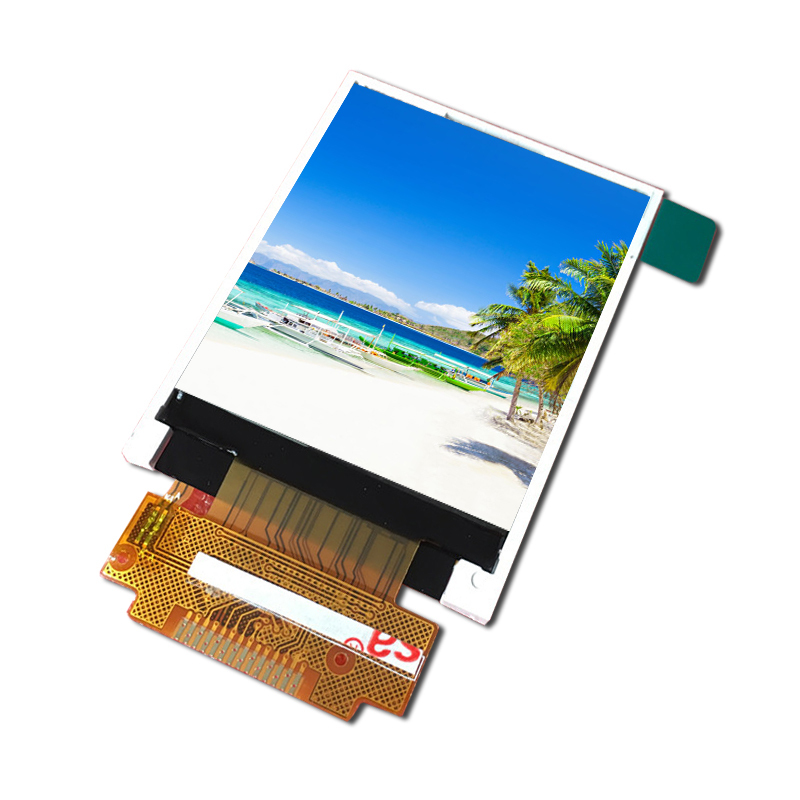

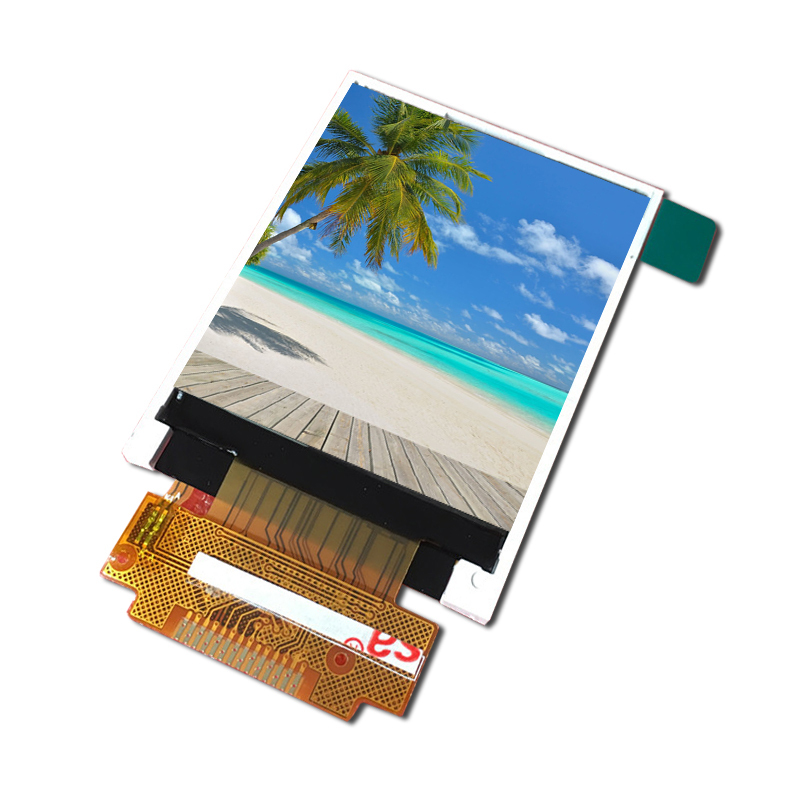

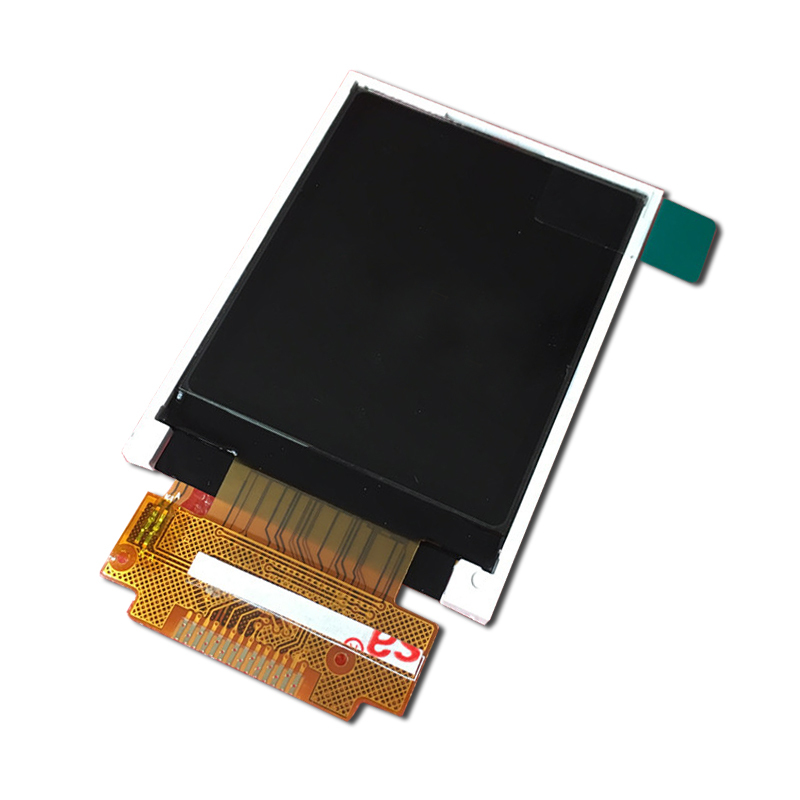

RPSX177QQVGA101 TFT LCD Module 1.77inch 128X160 Spi 14pin Interface TFT LCD Display

Item No.: RPSX177QQVGA101
Model: RPSX177QQVGA101
Dot Matrix: 128 x 160
Module size: 34.7(W)x46.7(H)x2.5(T)mm
Active area: 33.48(W)x44.64(H)mm
Description
RPSX177QQVGA101 TFT LCD Module 1.77inch 128X160 Spi 14pin Interface TFT LCD Display
Model: RPSX177QQVGA101
Panel Size 1.77 inch
LCD Type TFT TRANSMISSIVE
Module Size 34.7(W) x46.7(H) x 2.50(T)mm
Display Area 33.48(W) x44.64(H)mm
Number of Dots 128×(RGB)×160 Dots
Best Viewing Direction 12 O'clock
Driver IC ST7735S
Display Type 262K
LED Numbers  2 White leds
Operating Temperature: -20 ~ +70ºC
Storage Temperature: -30 ~ +80ºC
