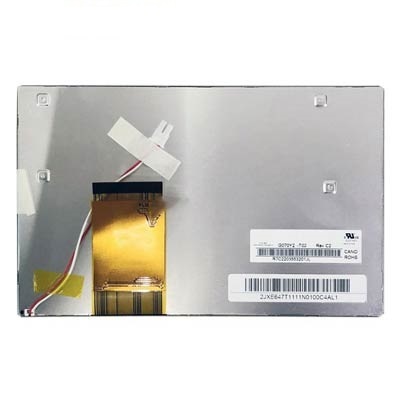

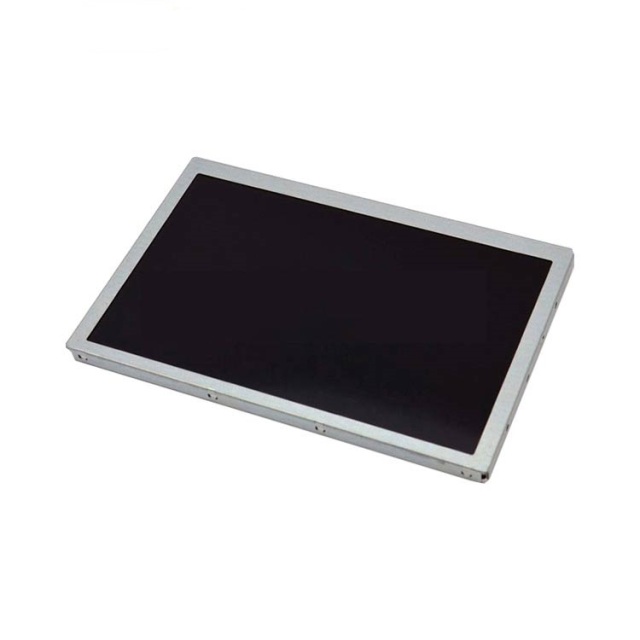

Original Innolux Industrial 7 Inch 800X480 WVGA TFT LCD Display G070y2-T02 500nits,TTL 60pins with Controller Board and Touch Screen

No.G070y2-T02

TFT displays and full color TFTs in line, these displays are available in various resolutions as well as touch screen optional in resistive and projected capacitive (PCAP touch screen) technology.

GET A QUOTE

Description

Manufacturer	Innolux
Model Name	G070y2-T02
Screen Size	7.0 inch
Pixel Number	800(RGB)×480 , WVGA
Active Area(mm)	152.4 x 91.44 (H×V)
Outline(mm)	165 x 104 x 6.33 (H×V×D)
Pixel Pitch(mm)	0.1905 x 0.1905 (H×V)
Treatment	AG type, Hardness Coating 3H
Luminance	500 cd/m² (Typ.)
Contrast Ratio	600 : 1 (Typ.) (TM)
Viewing Angle	R/L/U/D 70/70/60/60 (CR≥10)
Response	5/11 (Typ.)(Tr/Td) ms
Display Mode	TN , Normally white , Transmissive
Color Depth	262K/16.2M , 72% NTSC
Backlight	WLED , 50K hours , without Driver
Net Weight	147g
Touchscreen	without
Signal Type/interface Type	TTL (1 ch, 6/8-bit) , FPC , 60 pins
Voltage Supply	+3.3 V
Max. Ratings	Storage Temp.: -40 ~ +95 (°C) Operating Temp.: -30 ~ +85 (°C)
Package	Innolux Original package; 34 pcs/box; size : 465(L) x 362(W) x 314(H)mm

Brand:
Reaper , over ten years manufacturer and exporter of various LCD display including mono LCD, TFT display, OLED display, touch panel and customized LCD solution.With the advantages of high contrast,fast response time, wide viewable angle and low power consumption, Reaper's products are widely used in Industrial Equipment, Medical devices,Home Intelligent Devices, Digital comsumers, Video Game Devices,Instruments etc.
