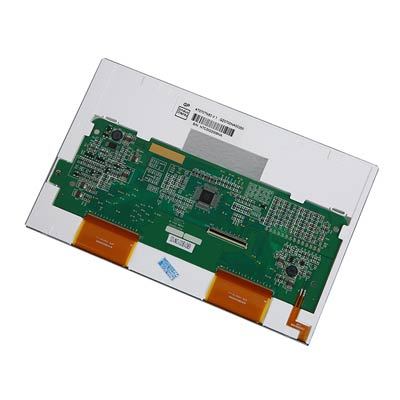

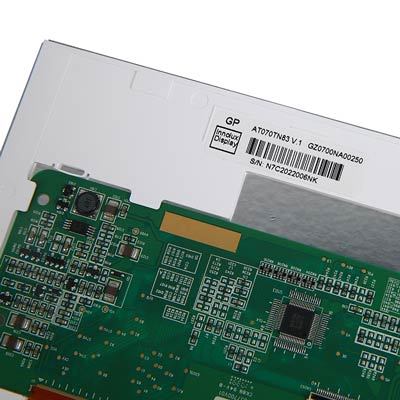

| Manufacturer | Innolux |
| Model Name | At070tn83 V. 1 |
| Screen Size | 7.0 inch |
| Pixel Number | 800(RGB)×480 , WVGA |
| Active Area(mm) | 152.4 (W) x 91.44 (H) mm |
| Outline(mm) | 165(W) x 104(H) x 5.5(D) mm |
| Treatment | AG |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | R/L/U/D 70/70/50/70 (CR≥10) |
| Response | 10/15 (Typ.)(Tr/Td) ms |
| Good View at | 6 O'CLOCK |
| Display Mode | TN , Normally white , Transmissive |
| Color Depth | 262K/16.7M , 50% NTSC |
| Backlight | WLED , 20K hours , without Driver |
| Net Weight | 130.0g (Typ.) |
| operating frequency | 60Hz |
| Touchscreen | without |
| Signal Type/interface Type | TTL (1 ch, 6-bit) , 40 pins |
| Voltage Supply | +3.3 V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package | Innolux original package; 50 pcs/carton; Carton size: 530x355x255 mm; Gross weight: 9.528Kgs(Typ.) |
