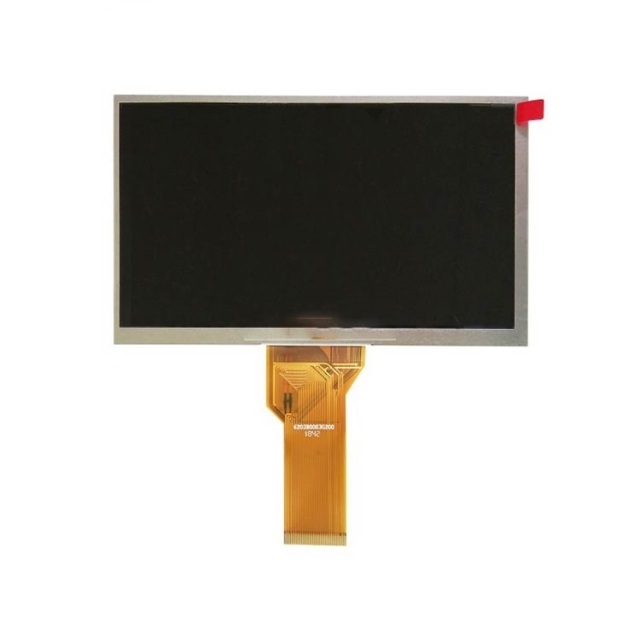

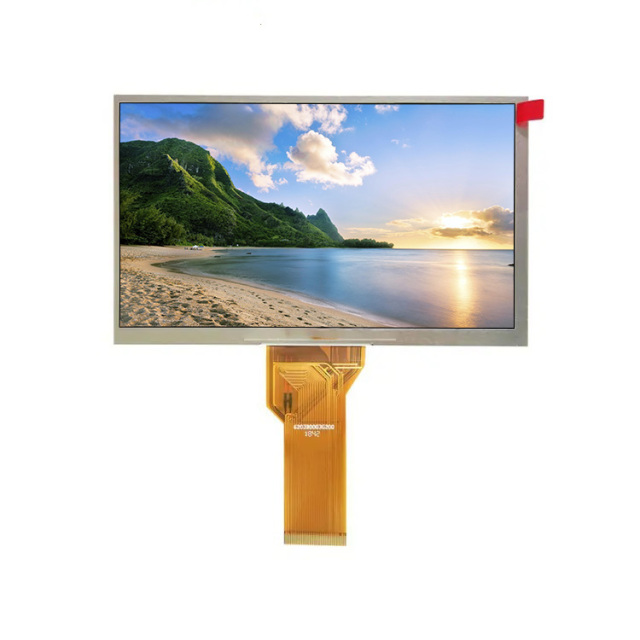

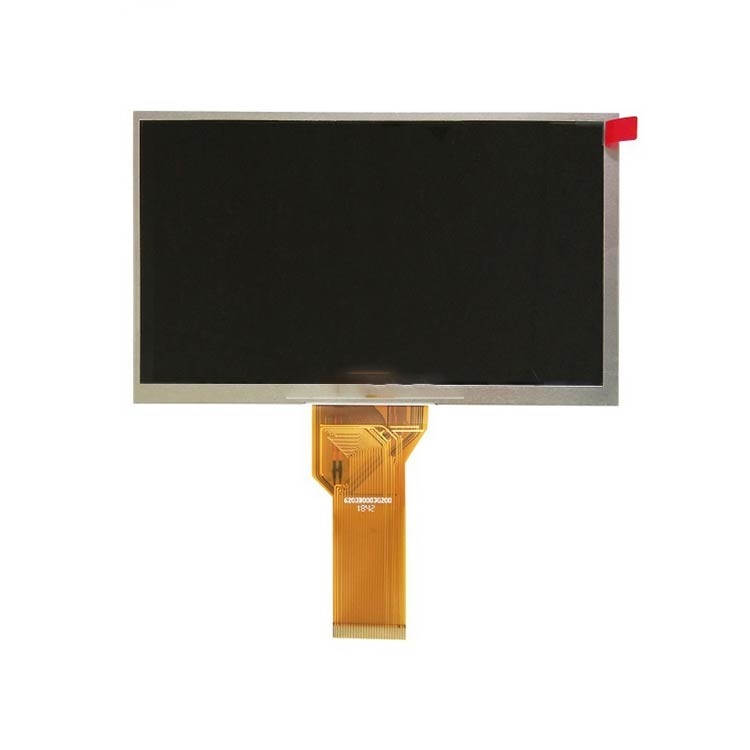

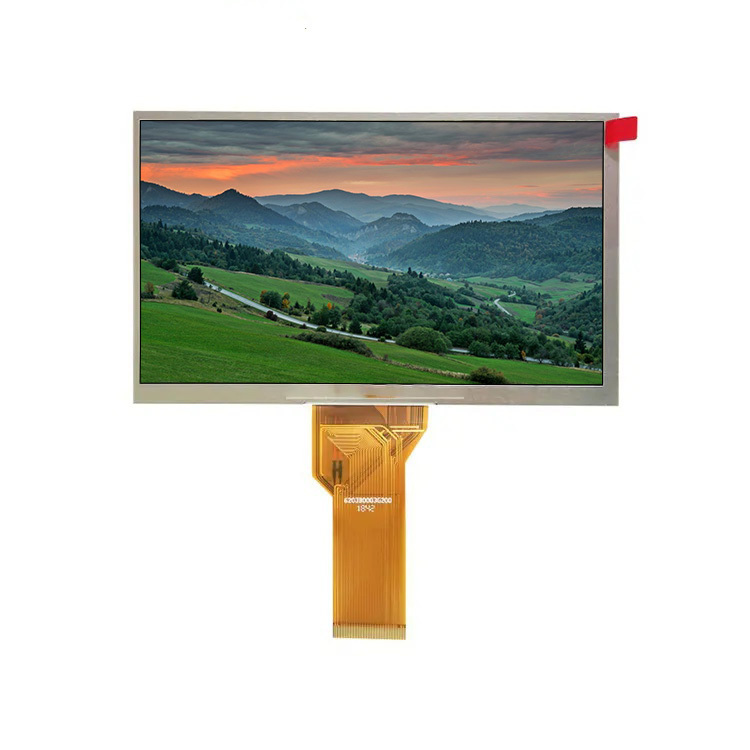

Original Innolux At070tn92 7.0 Inch 800X480 WVGA TFT LCD Display Screen

Item No.: AT070TN92.0
TFT displays and full color TFTs in line, these displays are available in various resolutions as well as touch screen optional in resistive and projected capacitive (PCAP touch screen) technology.
Description
Original Innolux At070tn92 7.0 Inch 800X480 WVGA TFT LCD Display Screen
Manufacturer Innolux
Model Name AT070TN92
Screen Size 7.0 inch
Screen Type LCM, a-Si TFT-LCD
Pixel Number 800(RGB)×480 , WVGA
Active Area(mm) 154.08 x 85.92 (HxV)
Outline(mm) 164.9 x 100 x 6 (HxVxD)
Bezel Area(mm) 156.7 x 89.1 (HxV)
Treatment Anti-glare , Hard coating (2H) , Anti-reflection
Luminance 250 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (TM)
Viewing Angle R/L/U/D 70/70/50/70 (CR≥10)
Response 10/15 (Typ.)(Tr/Td) ms
Good View at 6 O'CLOCK
Display Mode TN , Normally white , Transmissive
Color Depth 262K/16.7M , 50% NTSC
Backlight WLED , 20K hours , without Driver
Net Weight 150.0g (Typ.)
operating frequency 60Hz
Touchscreen without
Signal Type/interface Type Parallel RGB (1 ch, 6/8-bit) , 50 pins , FPC
Voltage Supply +3.3 V (Typ.)
Max. Ratings Storage Temp.: -30 ~ +80 (°C)
Operating Temp.: -20 ~ +70 (°C)

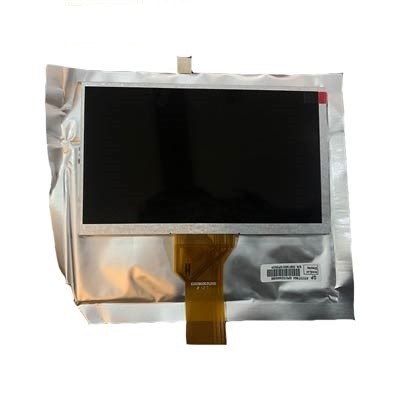

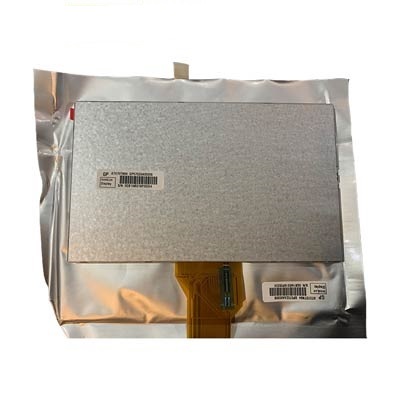

Package Innolux original package;
50 pcs/carton;
Carton size : 530(L)mm x 355(W)mm x 255(H)mm
Brand:
Reaper , over ten years manufacturer and exporter of various LCD display including mono LCD, TFT display, OLED display, touch panel and customized LCD solution.With the advantages of high contrast,fast response time, wide viewable angle and low power consumption, Reaper's products are widely used in Industrial Equipment, Medical devices,Home Intelligent Devices, Digital comsumers, Video Game Devices,Instruments etc.
