TFT LCD Display

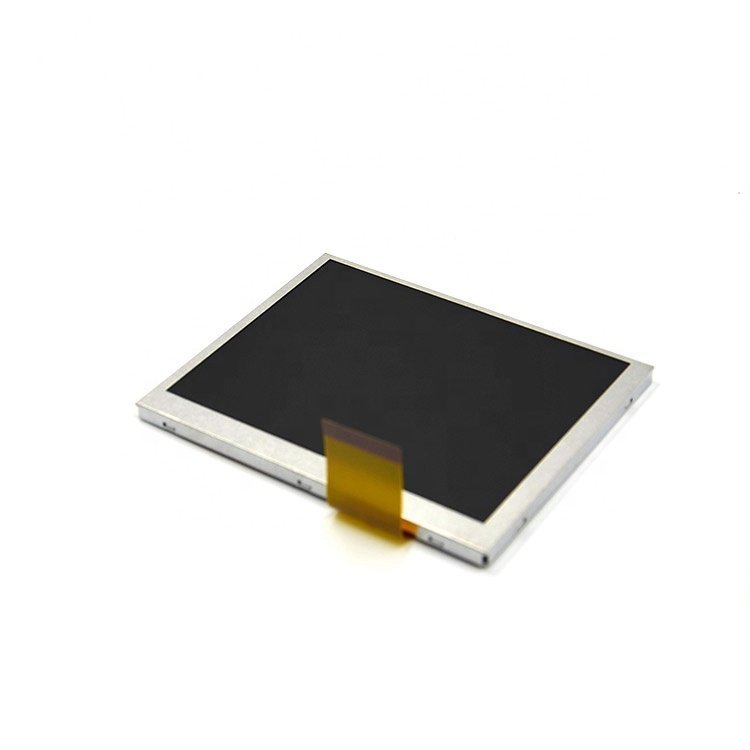

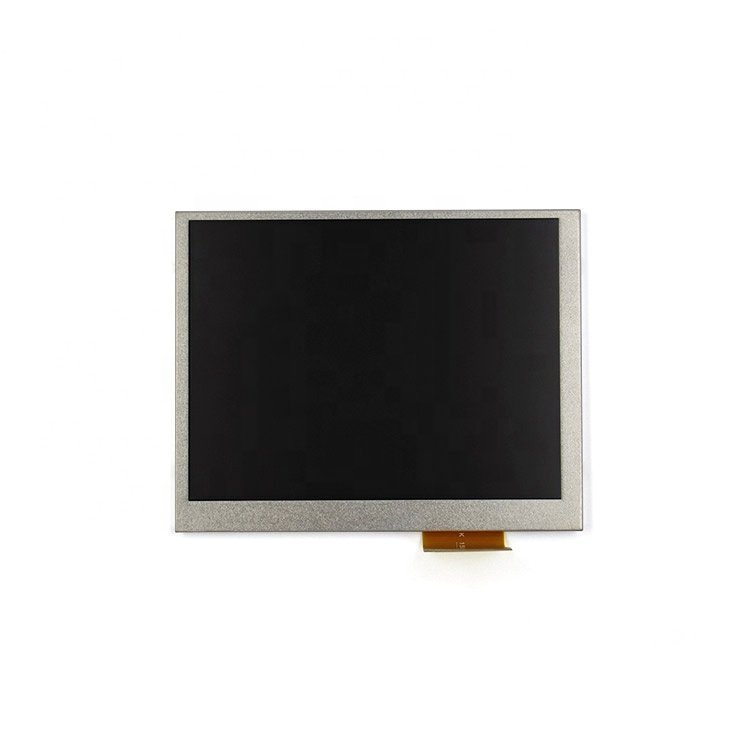

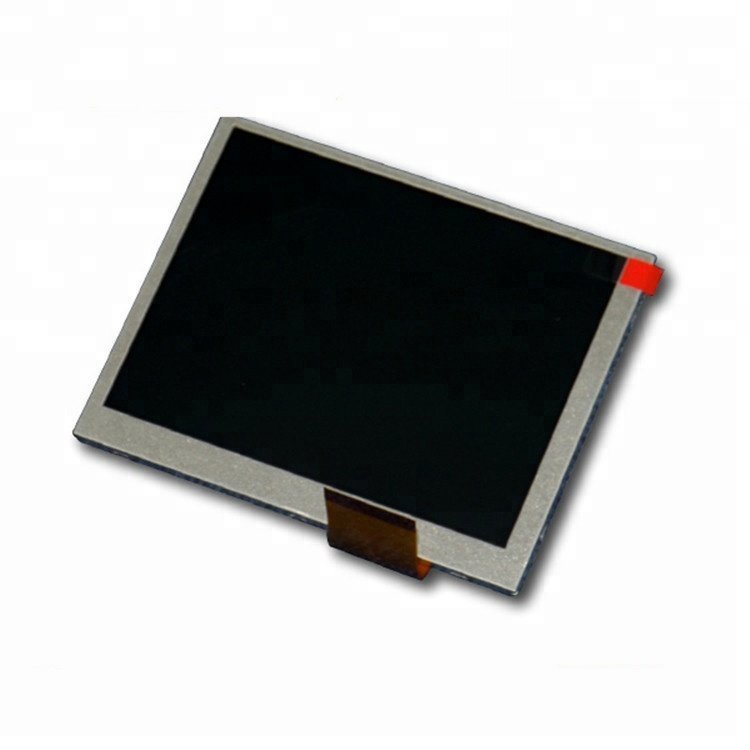

Original Innolux 5.6 Inch 640 (RGB) X480 VGA TFT LCD Display Panel, for Industry At056tn52 V. 3 with Touch Screen

Item No.: AT056TN52 V. 3
TFT displays and full color TFTs in line, these displays are available in various resolutions as well as touch screen optional in resistive and projected capacitive (PCAP touch screen) technology.
Description
 Original Innolux 5.6 Inch 640 (RGB) X480 VGA TFT LCD Display Panel, for Industry At056tn52 V. 3 with Touch Screen
Manufacturer Innolux
Model Name AT056TN52 V.3
Screen Size 5.6 inch
Pixel Number 640(RGB)×480 , VGA
Active Area(mm) 112.896 (W) x 84.672(H)
Outline(mm) 126.5(W) x 100(H) x 5.7(D)
Dot pitch(mm) 0.0588(W) x 0.1764(H)
Treatment Anti-Glare
Luminance 200 cd/m²
Contrast Ratio 500:1
Viewing Angle R/L/U/D 70/70/50/70(Deg)
Response 10/15ms
Work Mode TN , Normally White , Transmissive
Color Depth 16.7M
Backlight WLED , 20k hours , withour driver
operating temperature -20 ~ +70 (°C)
storage temperature -30 ~ +80 (°C)
Touchscreen without
Signal Type/interface Type Parallel RGB (1 ch, 8-bit) , FPC , 50 pins
Voltage Supply +3.3 V(Typ.)
weight 127.5g
Package Innolux original package;
60 pcs/carton;
Carton size:  530(L) x 355(W) x 255(H)mm;
Weight:  10.306kgs.
Brand:
Reaper , over ten years manufacturer and exporter of various LCD display including mono LCD, TFT display, OLED display, touch panel and customized LCD solution.With the advantages of high contrast,fast response time, wide viewable angle and low power consumption, Reaper's products are widely used in Industrial Equipment, Medical devices,Home Intelligent Devices, Digital comsumers, Video Game Devices,Instruments etc.
