Graphic LCD Display

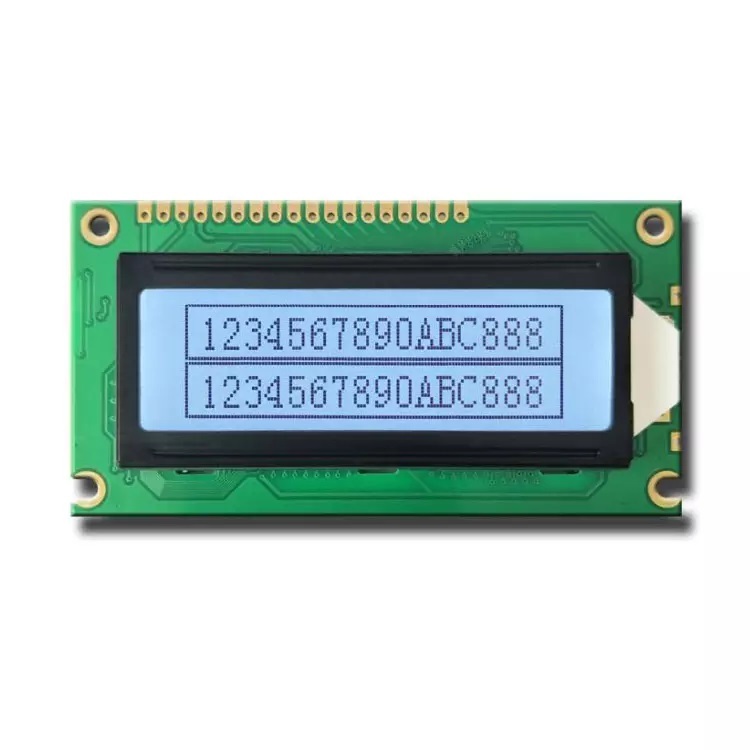

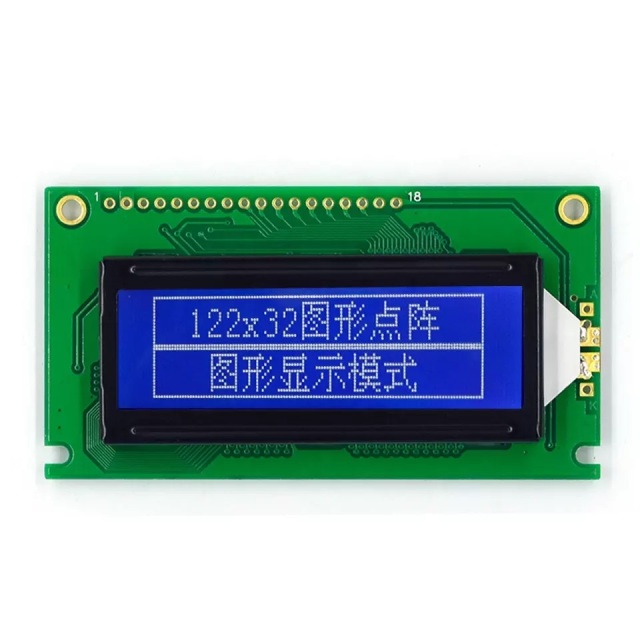

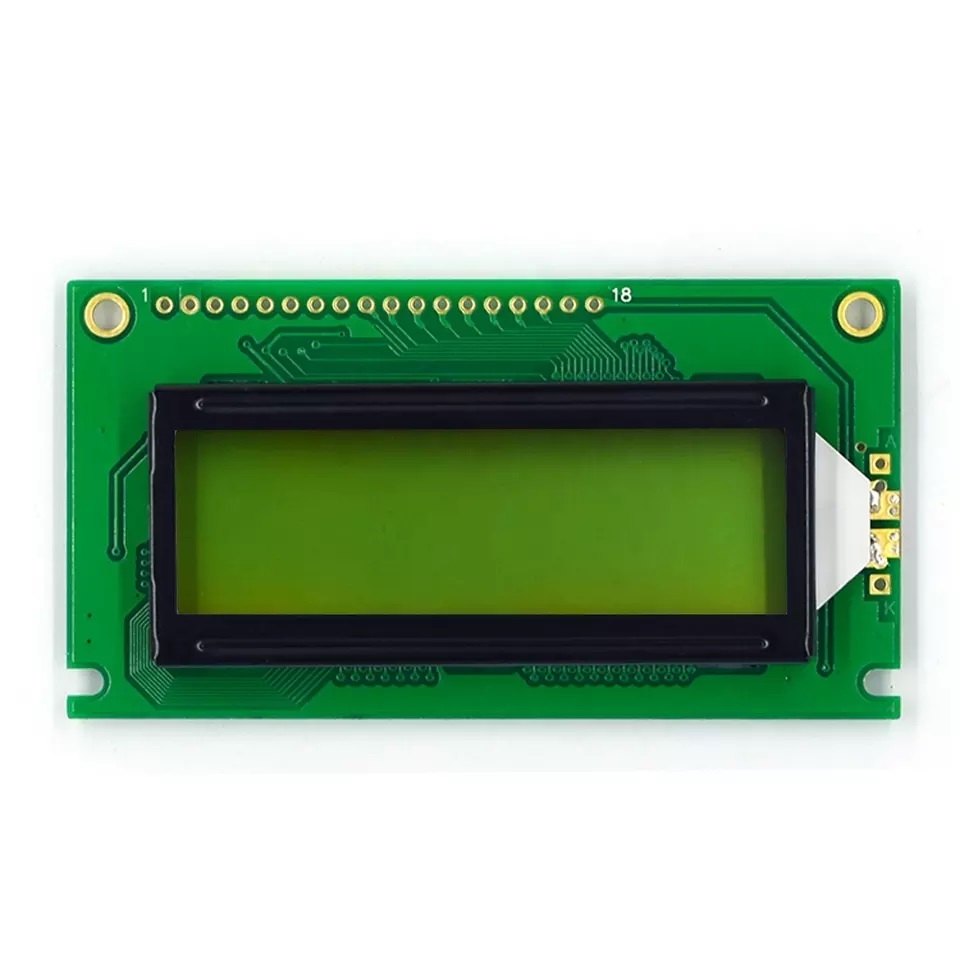

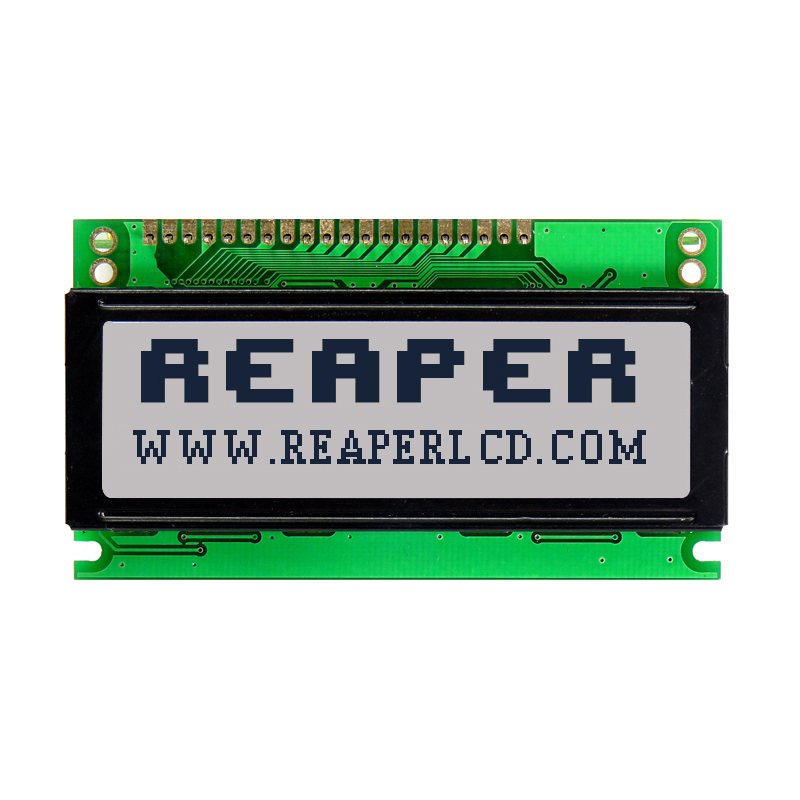

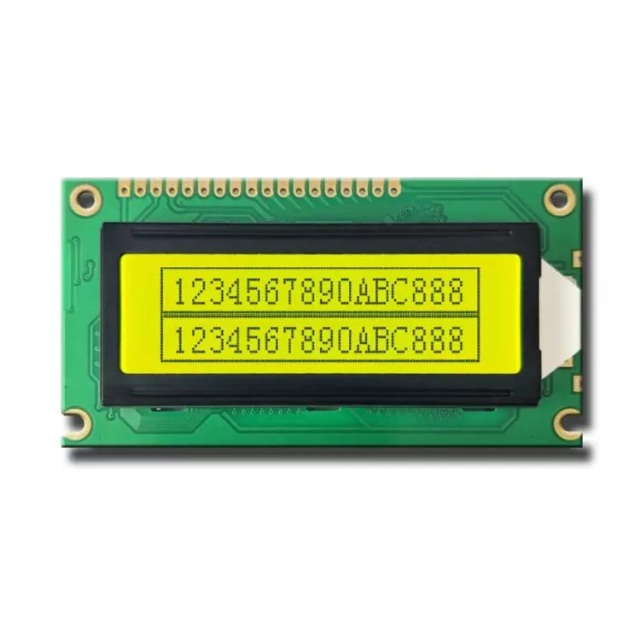

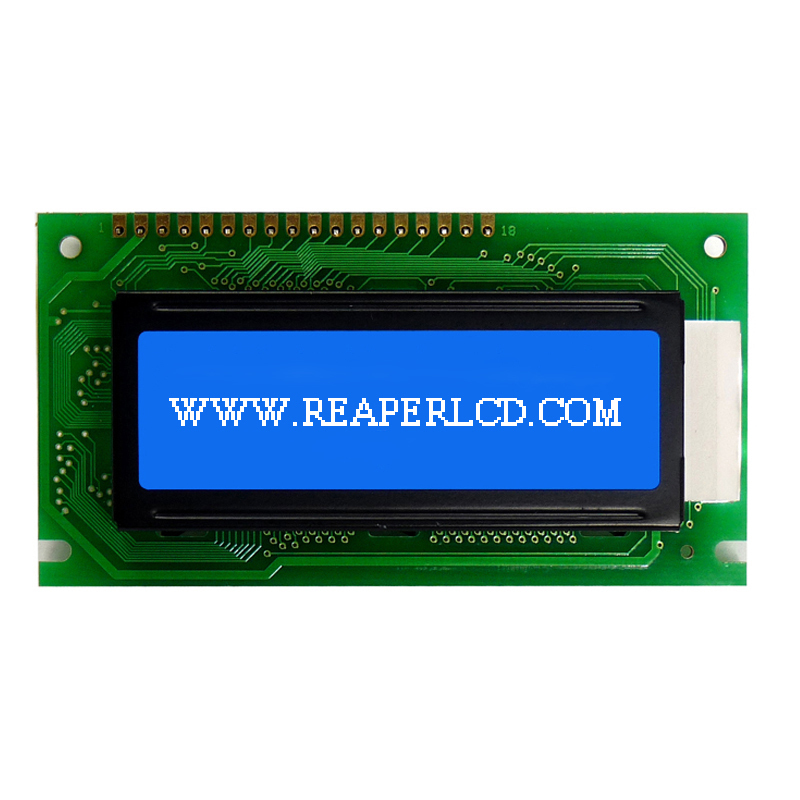

Monochrome 12232 122x32 dot matrix lcd graphic display

Item No.: RP12232H
Model: RP12232H
DotS: 122 x 32
Module size: 98 x 50 x 13.5mm
Viewing Area: 77 x 25.2 mm

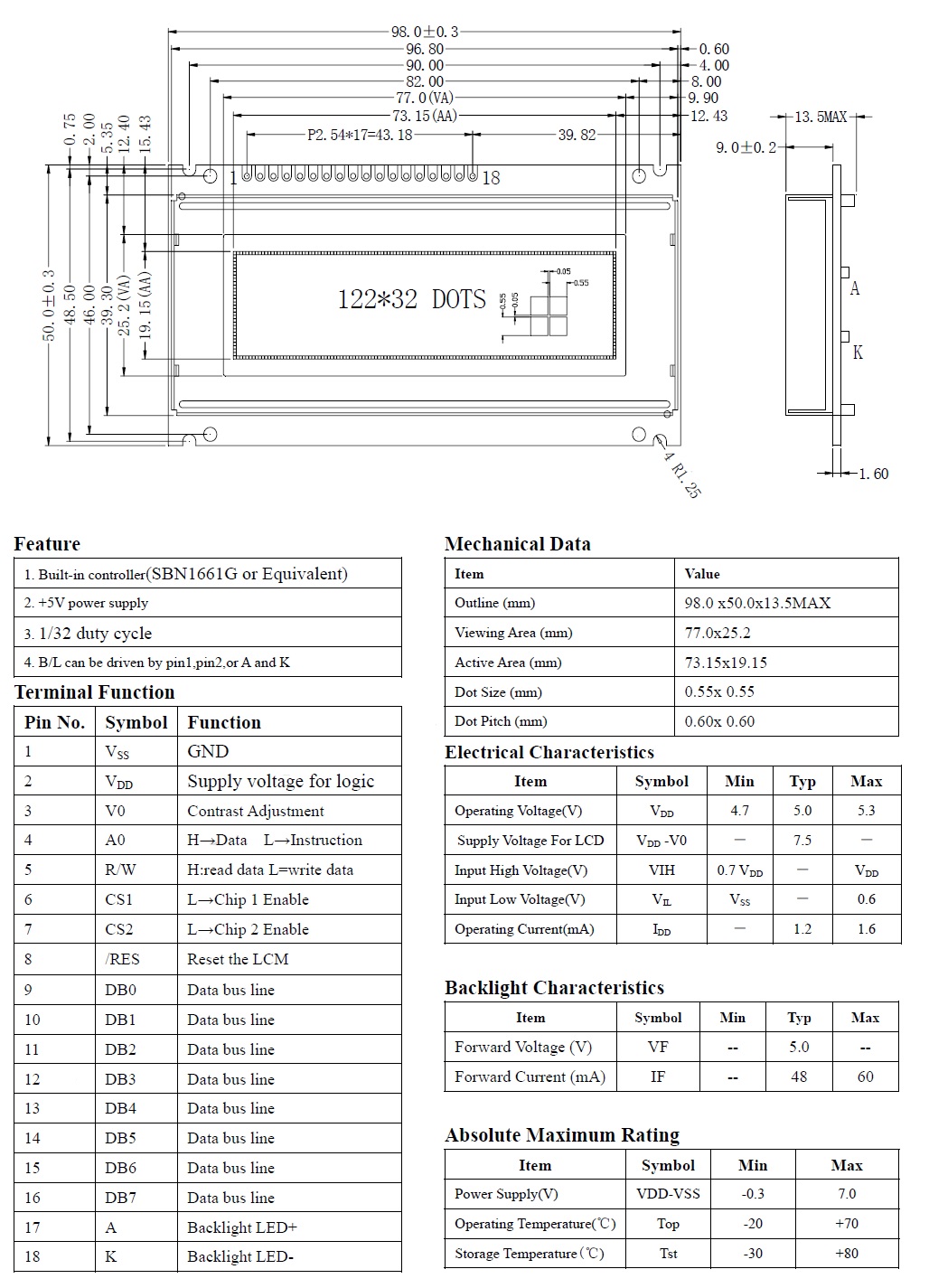

Description
Monochrome 12232 122x32 dot matrix lcd graphic display
Model: RP12232H
Dots: 122 x 32
LCM Type COB
Module Size 98 x 50 x 13.5mm
Viewing Area 77 x 25.2 mm
Dot Pitch 0.60 x 0.60 mm
Dot Size(W*Hmm) 0.55 x 0.55 mm
Controller SBN1661G or Equivalent
LCD Type STN BLUE
Operating Voltage 5V
Operating Temperature -20 ~ +70ºC
Storage Temperature -30 ~ +80ºC
