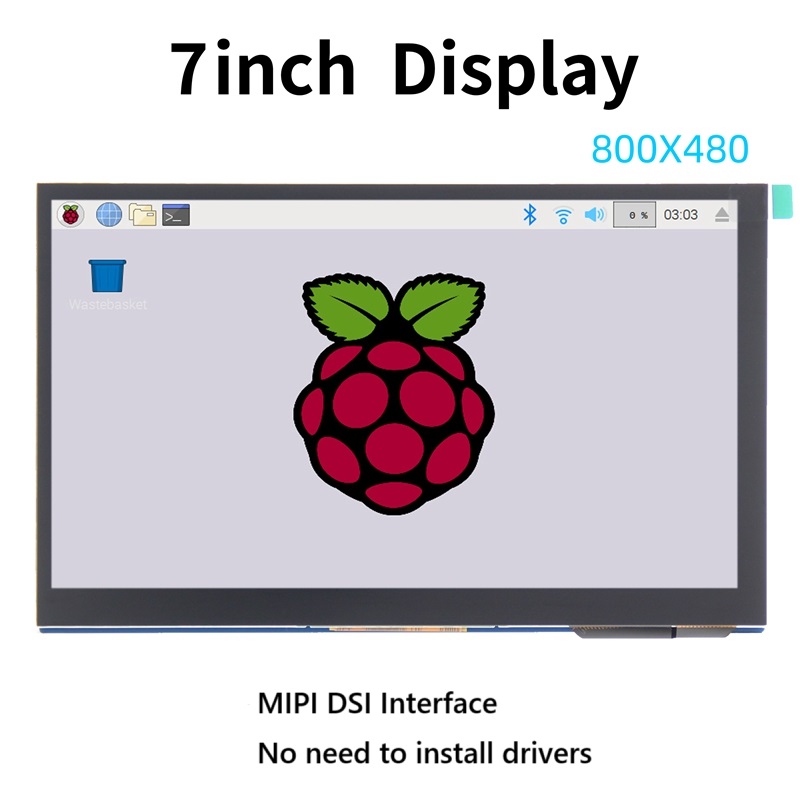

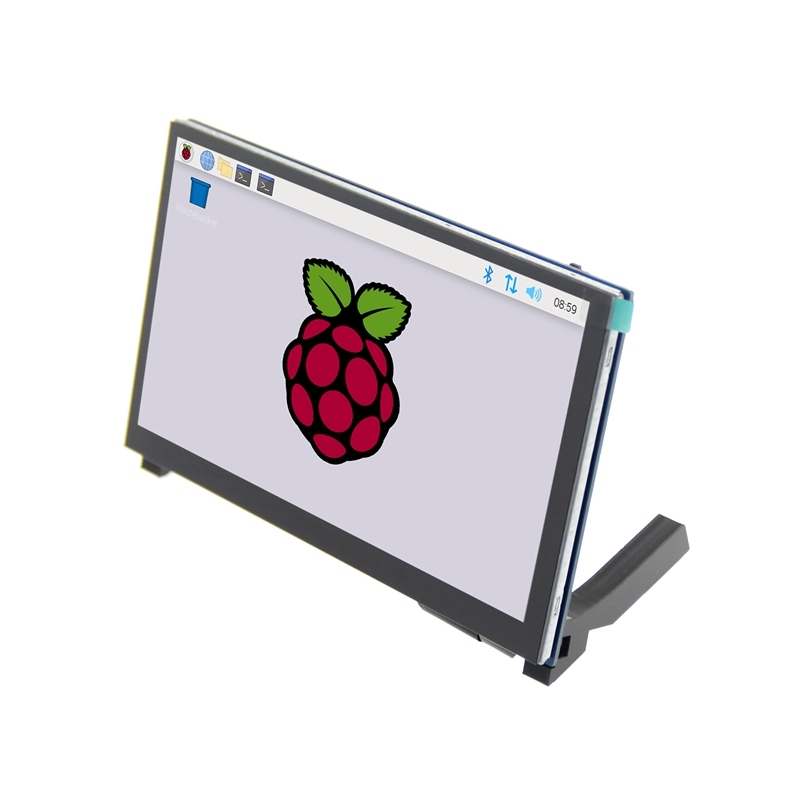

Mipi Dsi Input 7 Inch IPS 800X480 TFT LCD Screen Capacitive Touch Raspberry Pi Display

Item No.: RP701DSI018
MIPI DSI signal Displays are designed to work with the Raspberry Pi or embedded system, single board computers (or desktop/laptops) which support MIPI DSI  signal output. This series display modules come with a control board with a MIPI DSI signal interfa
Description
Mipi Dsi Input 7 Inch IPS 800X480 TFT LCD Screen Capacitive Touch Raspberry Pi Display

Product Description

  • >800x480 resolution capacitive touch display screen

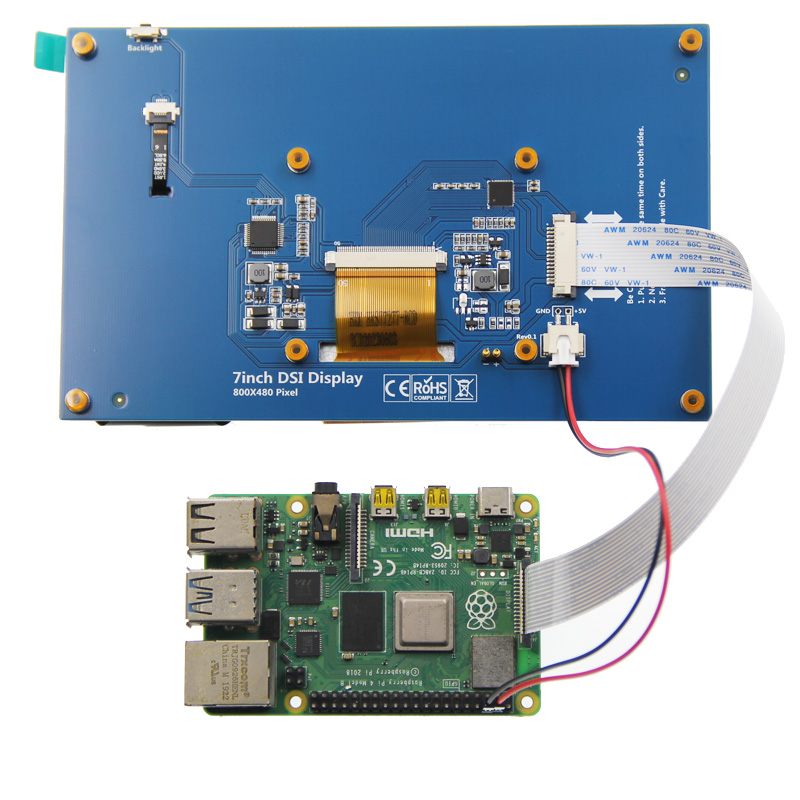

    >Raspberry Pi MIPI DSI interface for direct output, plug and play, without the need for driver installation
    >Support Raspberry Pi OS, the official system of Raspberry Pi, with 2-finger zoom for web pages
    >Support Ubuntu-Mate/Kali, single touch;
    >Support Retropie

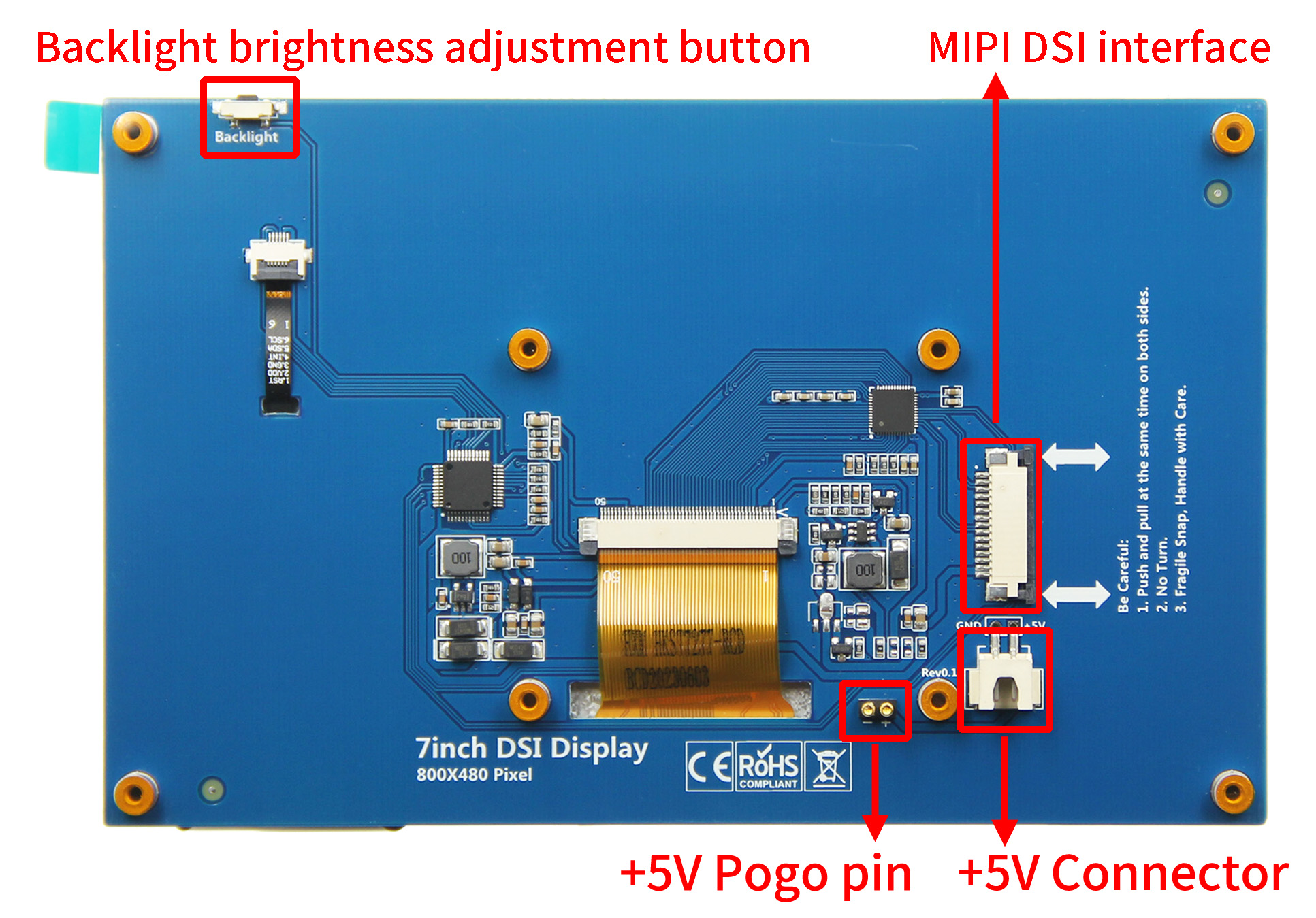

    >Equipped with backlight brightness adjustment button

Parameter
Name Descriptions
LCD Type IPS TFT
LCD Size 7inch
LCD Resolution 800*480
LCD Interface type RGB888
Module Interface Type MIPI DSI
Touch screen type Capacitive touch screen
Viewing Angle Full perspective
Active Area 154.68*87.02(mm)
Working Voltage 5V
Maximum Operating Current 510mA
Maximum Brightness 400cd/m2
Operating Temperature -20ºC-70ºC
Module Size 164.89*102.00*12.25(mm)
Module Weight (net weight) 221g
Package Size 212*149*54(mm)
Package Weight 330g






Brand:
Reaper , over ten years manufacturer and exporter of various LCD display including mono LCD, TFT display, OLED display, touch panel and customized LCD solution.With the advantages of high contrast,fast response time, wide viewable angle and low power consumption, Reaper's products are widely used in Industrial Equipment, Medical devices,Home Intelligent Devices, Digital comsumers, Video Game Devices,Instruments etc.
