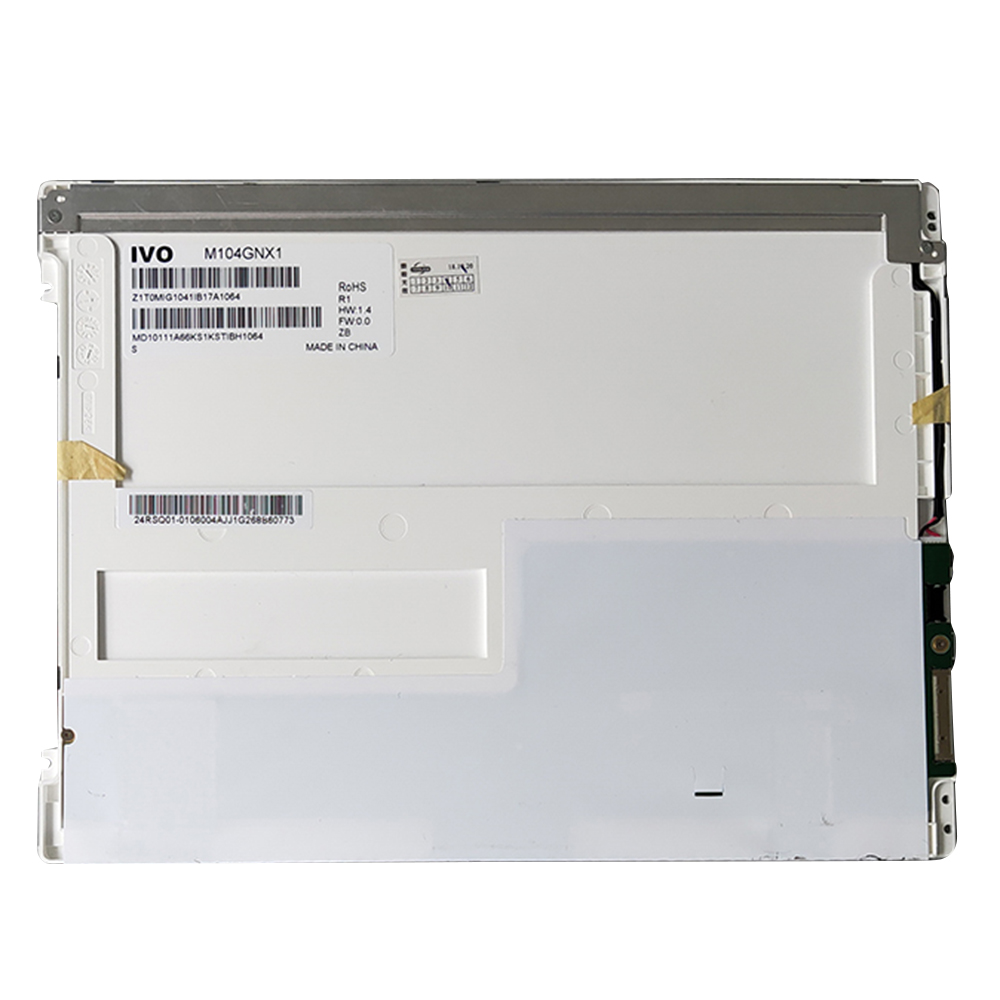

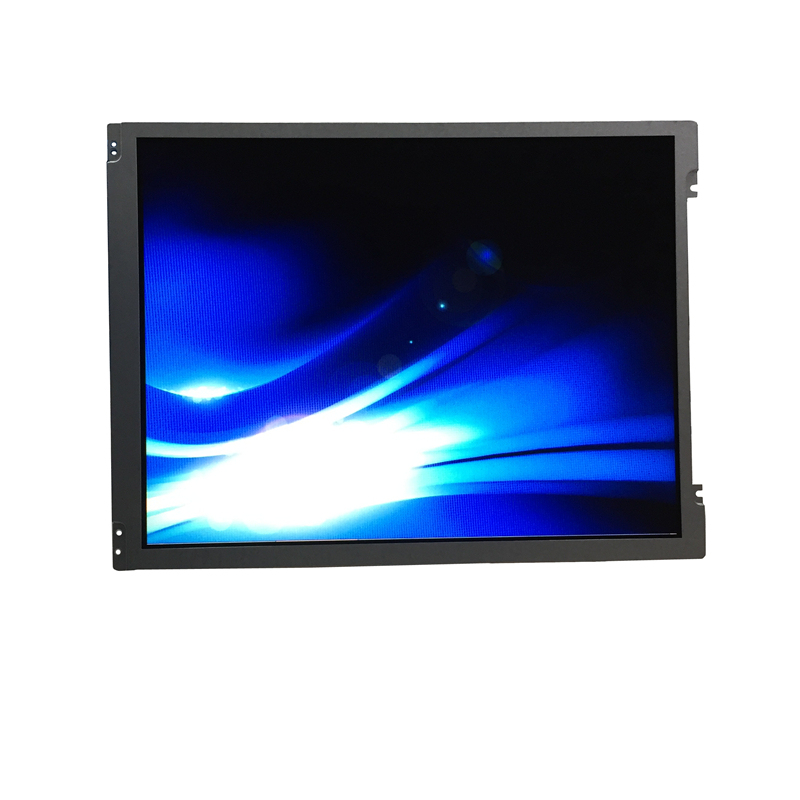

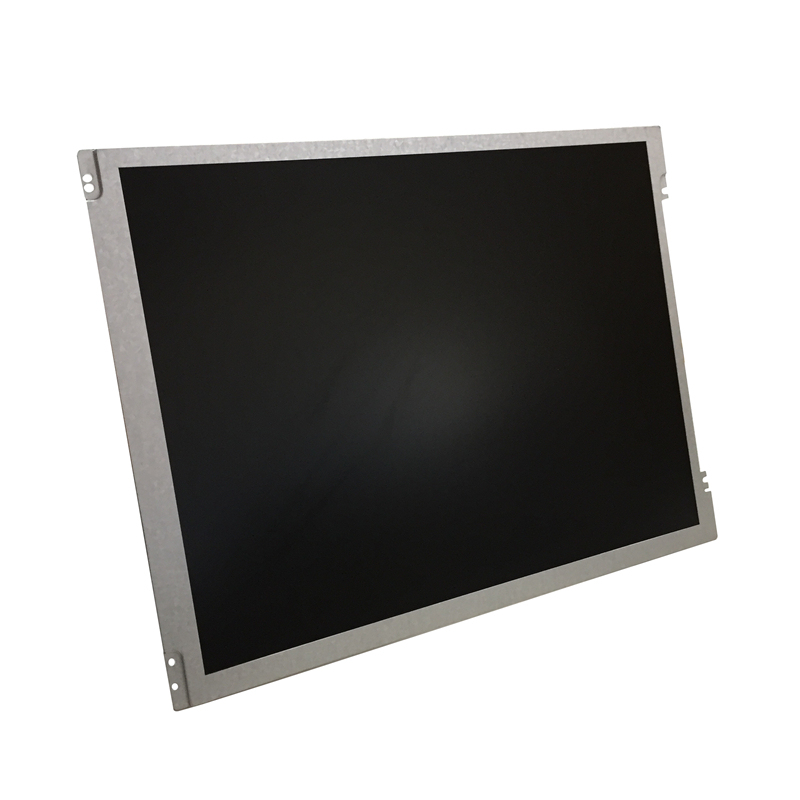

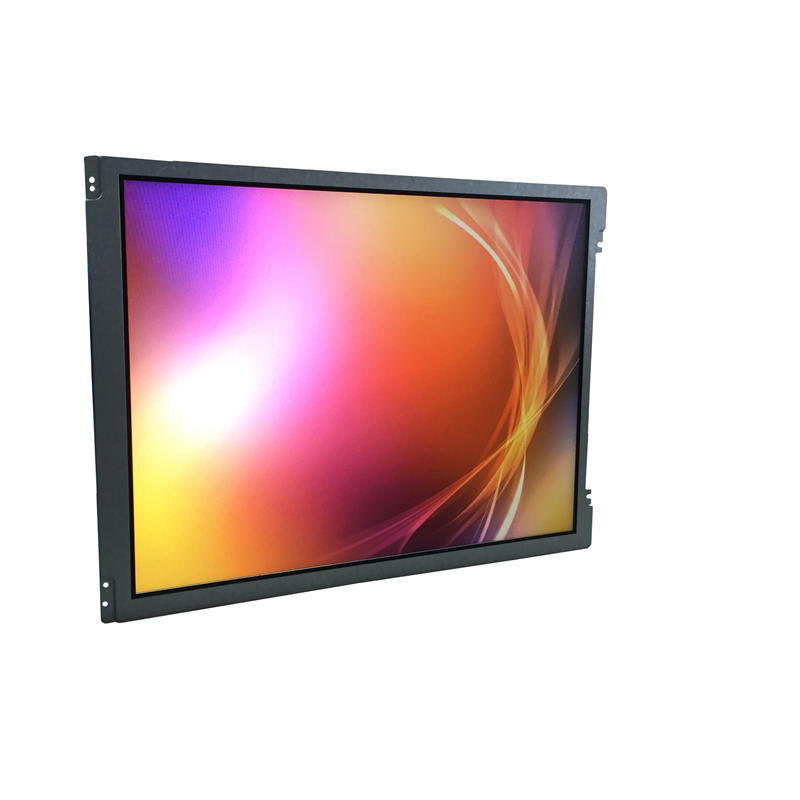

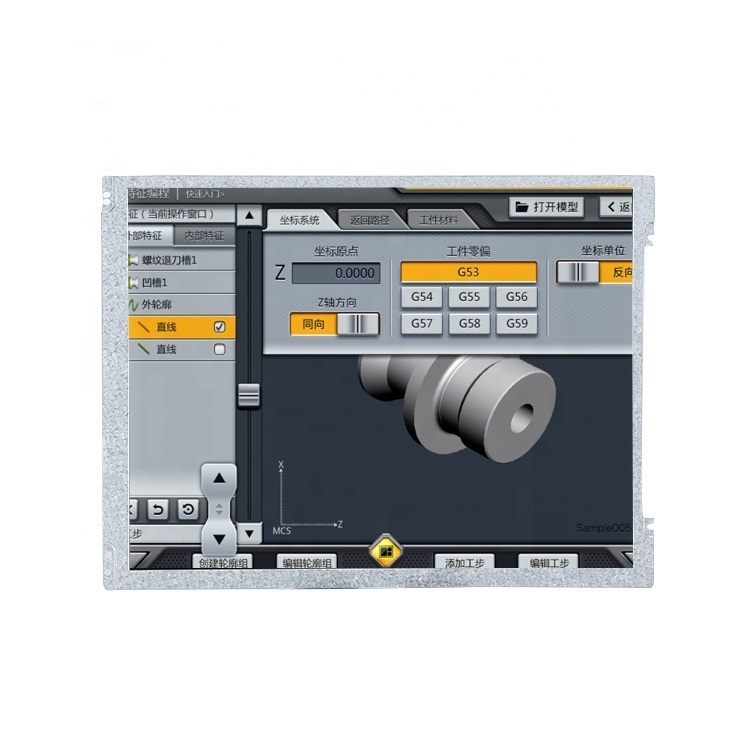

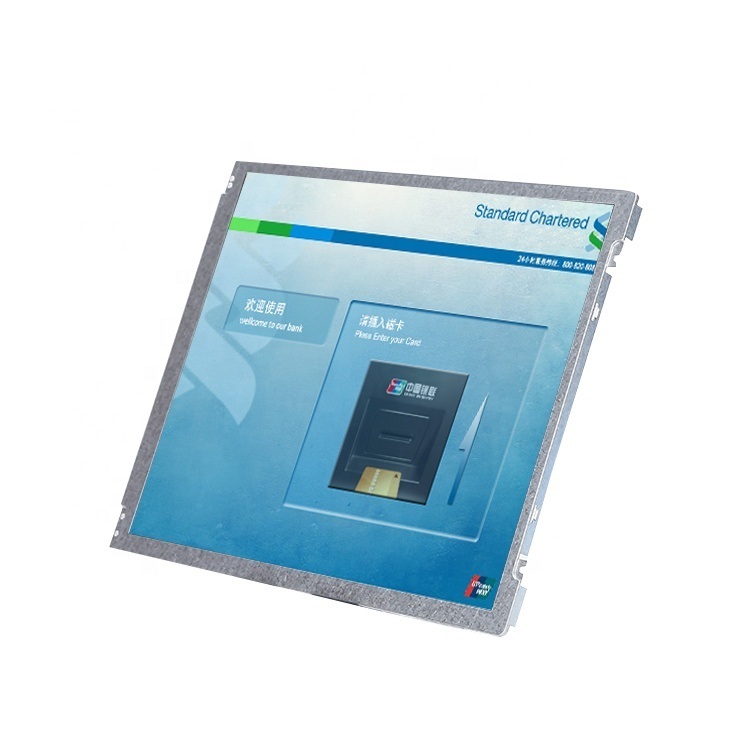

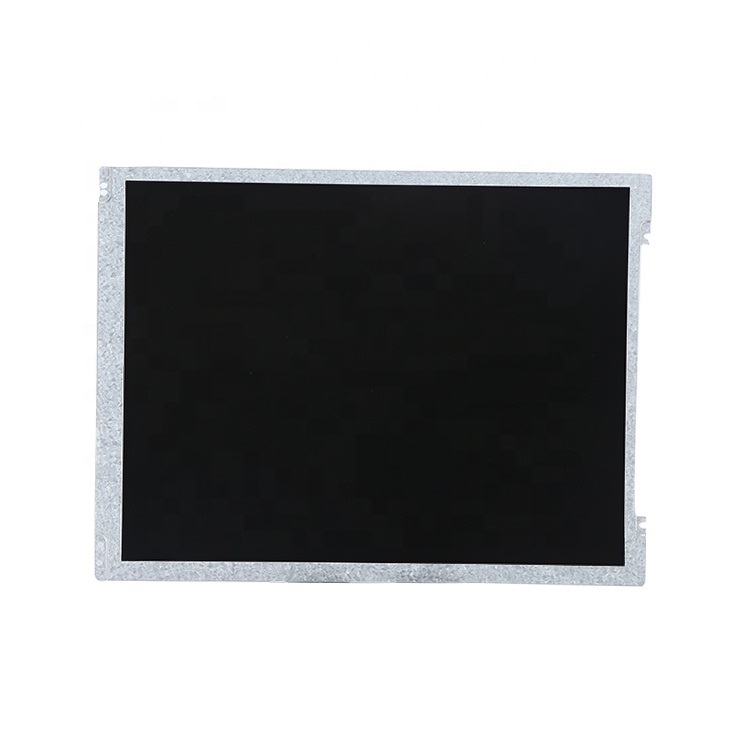

M104GNX1 R1 1024x768 10.4" Industrial LCD Screen panel

Item No.: M104GNX1 R1
The M104GNX1 R1 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of aTFT LCD panel, a driver circuit and a backlight system. This TFT LCD has a 1
Description
M104GNX1 R1 1024x768 10.4" Industrial LCD Screen panel
1. INTRODUCTION
The M104GNX1 R1 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of aTFT LCD panel, a driver circuit and a backlight system. This TFT LCD has a 10.4 inch diagonally measured active display area with XGA resolution (1,024 horizontal by 768 vertical pixels array).
2.Features

 Supported XGA Resolution
  LVDS Interface
  Compatible with RoHS Standard
3 Product Summary

Product Name

M104GNX1 R1 1024x768 10.4" Industrial Screen Lcd Panel

Model

M104GNX1 R1

Size

10.4inch

Resolution

1024*768

Pixel Pitch (H x V)

0.2063 x 0.2063 mm

Brightness(nits)

350

Pixel Arrangement

R.G.B. Vertical Stripe

Display Mode

Normally White

Contrast Ratio

900:1

Response Time

16 ms

Input Voltage

3.3 v

Power Consumption

3.72W

 View Angle(L/R/U/D)

75/75/75/75

 Response Time(ms)  16ms
Optical mode  TN
 Operating Temperature  -20°-70°
 Storage Temperature  -30°-80°
 Interface  LVDS/6/8-bit
 Lamp type  LED
 LED Life Time(Hrs)  15,000Hours
 Active Area(mm,H*V)

211.20*158.40

 Outline Dimension

236.00*176.90*5.70

Weight

300g

Support Color

262 K/16.7 M

NTSC

50 (Typ.)

Viewing Direction

6 O’clock

Surface Treatment

Anti-Glare

Authentication

ROSH/UL
