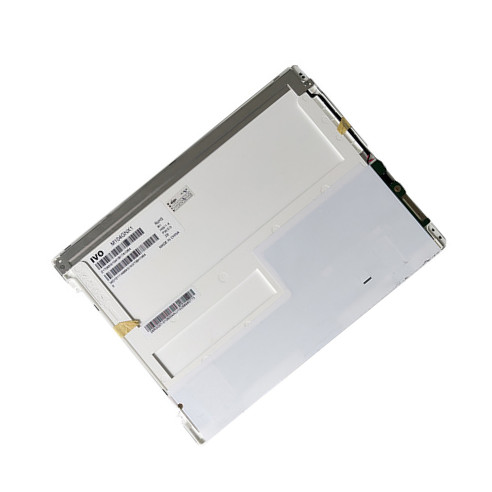

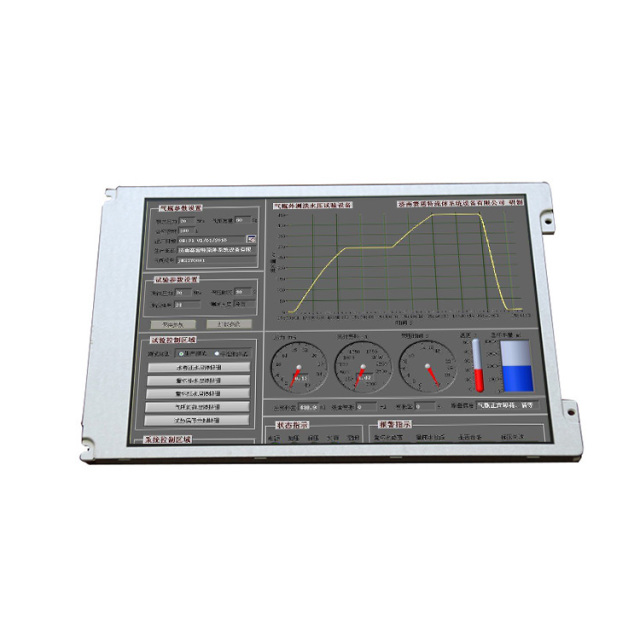

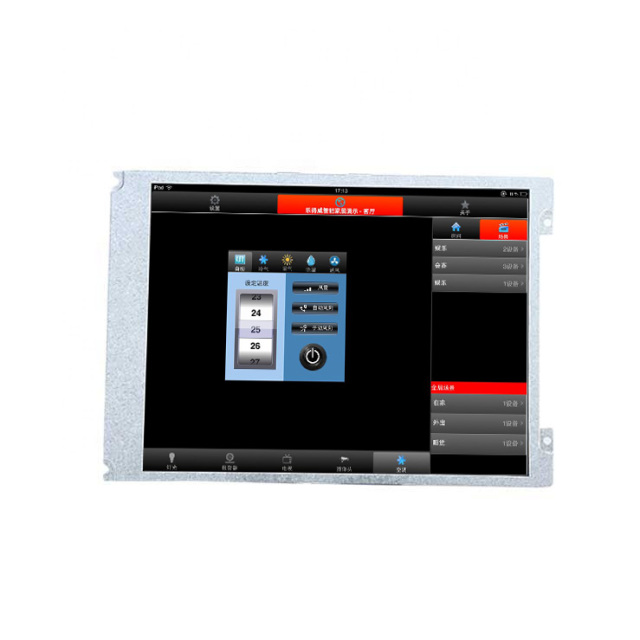

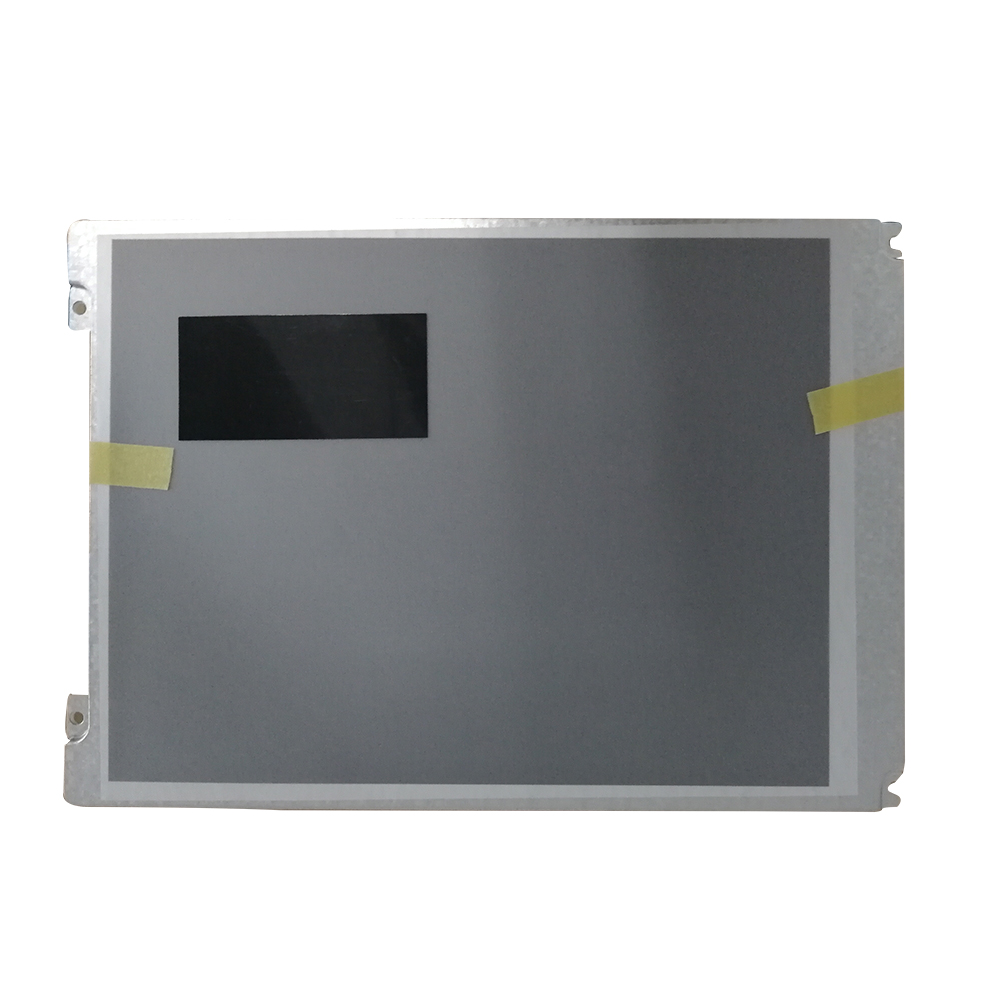

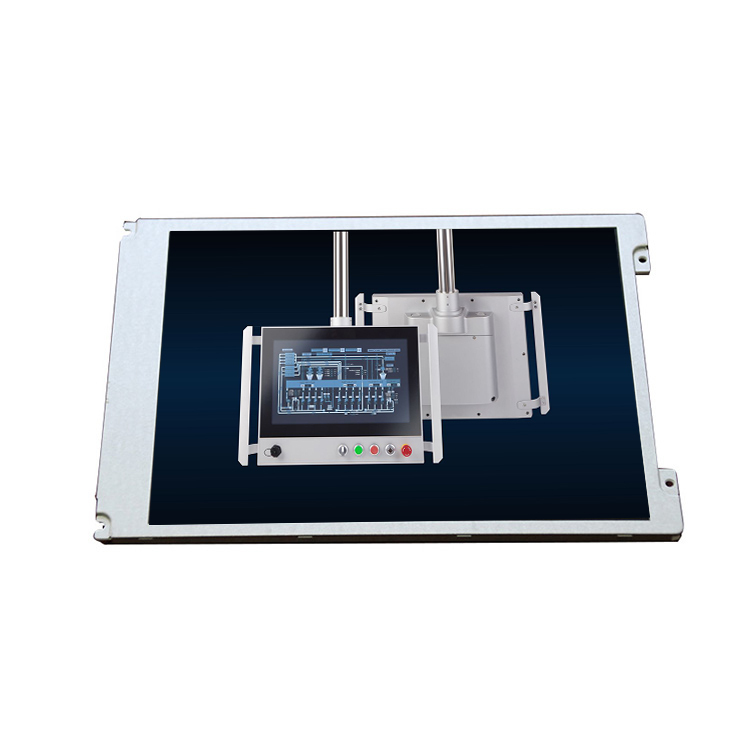

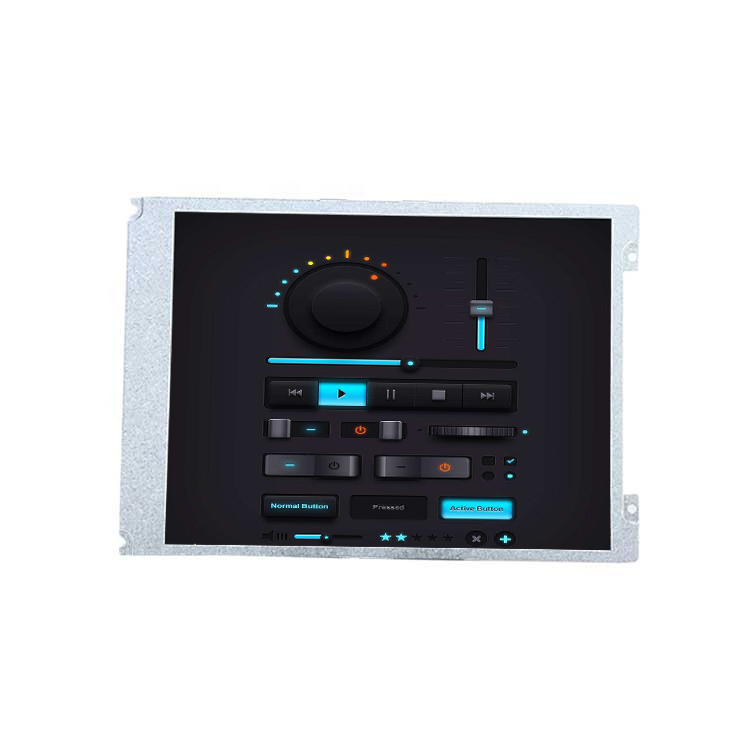

M084GNS1 R1 800x600 8.4Inch Industrial Display LCD Screen

Item No.: M084GNS1
The M084GNS1 R1 is a Color Active Matrix Liquid Crystal Display with a back light system. The matrix employs a-Si Thin Film Transistor as a switching device. This TFT LCD has a 8.4 inch diagonally measured active display area with SVGA resolution (800 hor
Description
M084GNS1 R1 800x600 8.4Inch Industrial Display LCD Screen
1. INTRODUCTION
The M084GNS1 R1 is a Color Active Matrix Liquid Crystal Display with a back light system. The matrix employs a-Si Thin Film Transistor as a switching device. This TFT LCD has a 8.4 inch diagonally measured active display area with SVGA resolution (800 horizontal by 600 vertical pixels array).
2.Features

 Supported SVGA Resolution
  LVDS Interface
  Compatible with RoHS Standard
3 Product Summary

Model

M084GNS1 R1

Size

8.4inch

Resolution

800*600

Brightness(nits)

500

Contrast Ratio

350:1

Pixel Pitch (H x V)

0.213 x 0.213 mm

Pixel Arrangement

R.G.B. Vertical Stripe

Display Mode

Normally White

 View Angle(L/R/U/D)

80/80/80/60

Contrast Ratio

(600) (Typ.)

 Response Time(ms)

16ms

Input Voltage

3.3 (Typ.)

Power Consumption

(2.81 W)(Max)

 Optical mode

TN

 Operating Temperature  -20°-70°
 Storage Temperature  -30°-80°
 Interface  LVDS/6/8-bit
 Lamp type  LED
 LED Life Time(Hrs) 30,000Hours
 Active Area(mm,H*V)

170.40*127.80

 Outline Dimension

203.00*142.50*5.70

Weight

200g

Support Color

262 K/16.7 M

NTSC

45 %

Viewing Direction

12 O’clock

Surface Treatment

Anti-glare
