Character LCD Display

LCM 2004 LCD display STN FSTN COB modules Character,20X4

Item No.: RP2004B
Model: RP2004B
DotS: 20 x 4

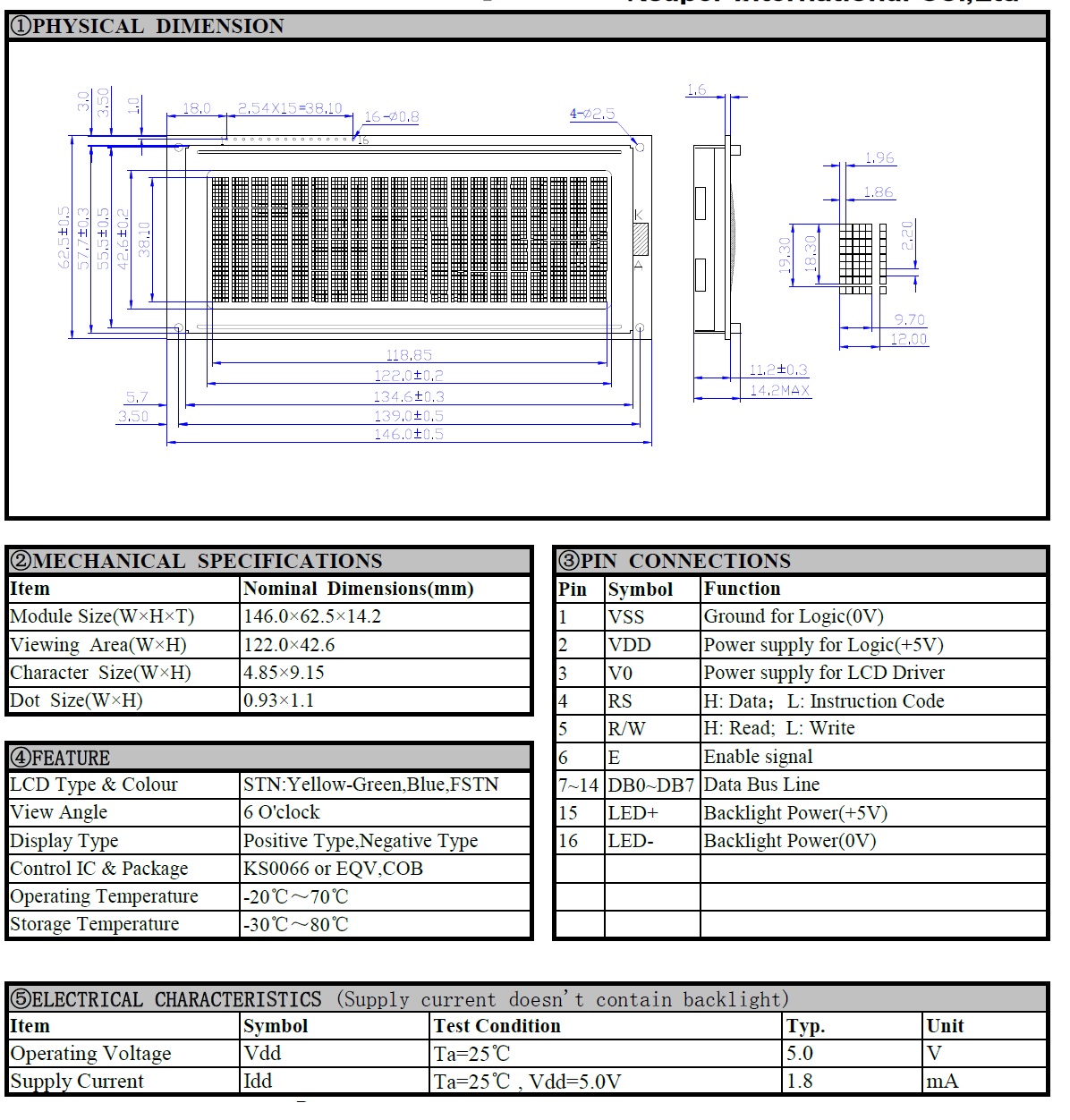

Module size: 146 x 62.5 x 14.2mm
Viewing Area: 122.0 x 42.6 mm
Description
 LCM 2004 LCD display STN FSTN COB modules Character20x4
Model: RP2004B
Dots: 20 x 4
LCM Type COB
Module Size 146 x 62.5 x 14.2mm
Viewing Area 122 x 42.6 mm
Character Size 4.85 x 9.15 mm
Dot Size(W*Hmm) 0.93 x 1.1 mm
Controller KS0066 or equivalent
LCD Type FSTN,STN BLUE/Y-G
Display Type TRANSMISSIVE
Operating Voltage 5V
Storage Temperature: -20 ~ +70ºC
